HANDLING JOYSTICK STEERING SYSTEM
ADJUSTMENT AIR-SUSPENSION SEAT

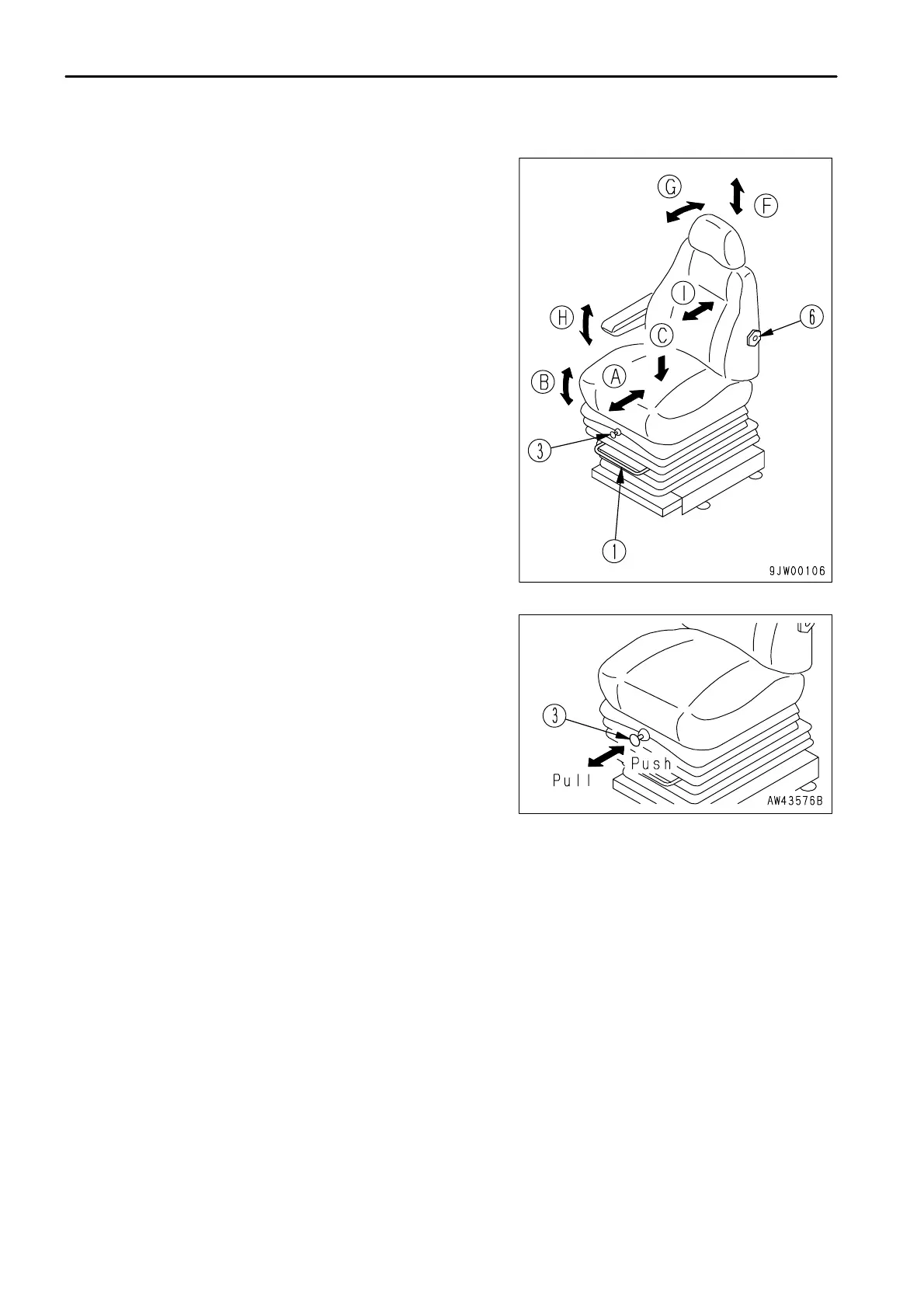

(A) Fore-and-aft adjustment
Pull lever (1) up, set the seat to the desired position, then release
the lever.
Fore-and-aft adjustment: 180 mm (7.1 in)
(18 mm (0.71 in) x 10 stages)
(B) Adjusting seat angle
Move lever (2) up and push down on the rear of the seat to tilt it
backward.
Move lever (2) down and push down on the front of the seat to tilt
it forward.
Adjustment range: 13 degrees (Front tilt, rear tilt: 4 stages each)
(C) Setting seat for operator's weight
Sit on the seat and adjust the strength of the suspension with valve
(3).
Adjustment range: (Target) 50 to 120 kg (110 to 265 lb)
Push: suspension becomes stronger
Pull: suspension becomes weaker
