24.
SERVICE
PROCEDURE

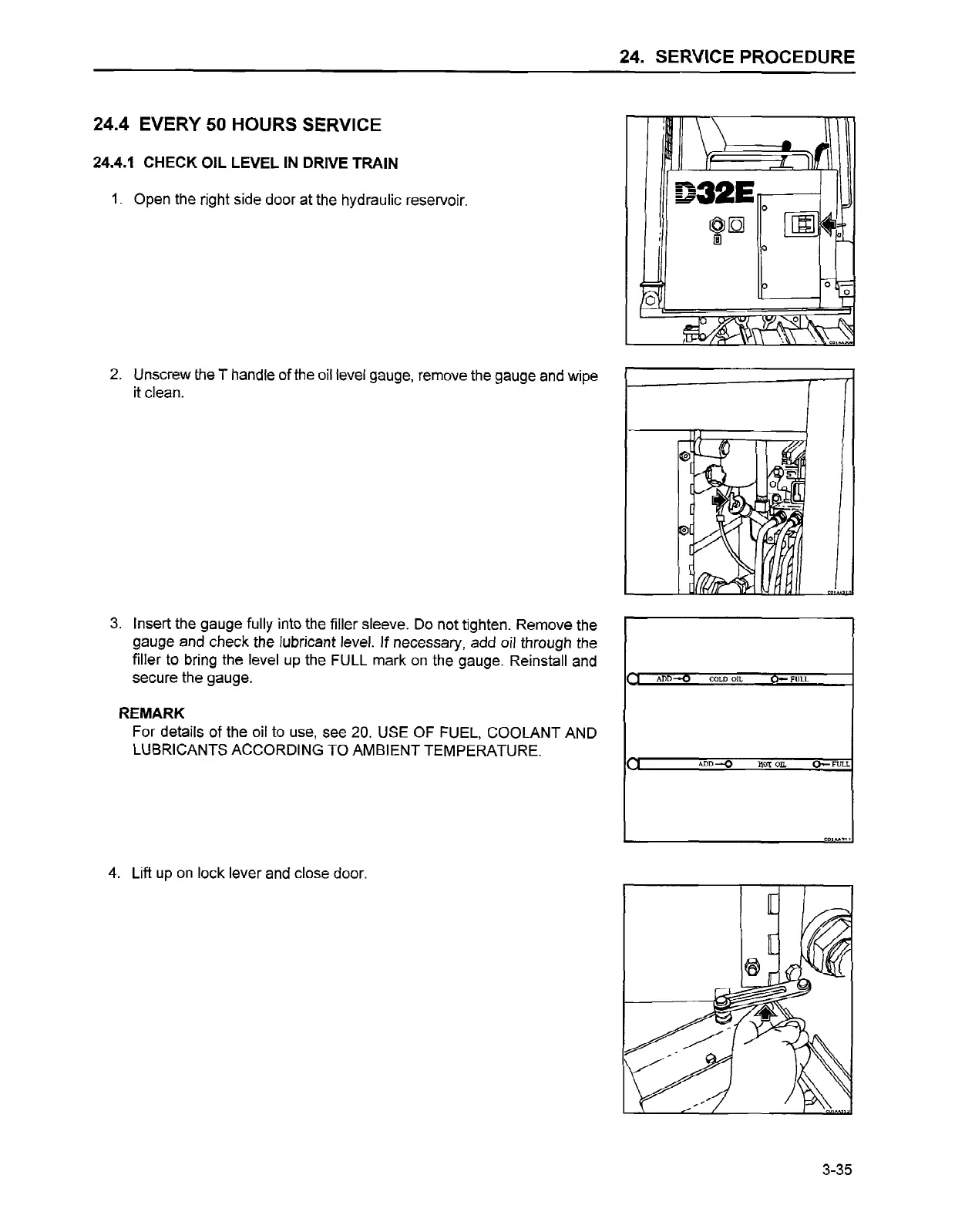

24.4 EVERY 50 HOURS SERVICE
24.4.1 CHECK OIL LEVEL IN DRIVE
TRAIN
1.
2.
3.
Open the right side
door
at the hydraulic
reservoir.
Unscrew the
T handle of the
oil level gauge, remove
the
gauge and wipe
it
clean.
Insert the
gauge fully into the
filler sleeve. Do not tighten. Remove the
gauge
and check the lubricant level. If necessary, add oil through
the
filler to bring the
level
up the FULL mark on the gauge. Reinstall and
secure
the gauge.
REMARK
For details
of the oil to use,
see 20. USE OF FUEL, COOLANT AND
LUBRICANTS ACCORDING TO AMBIENT TEMPERATURE.
4.
Lift up on lock lever and close door.
