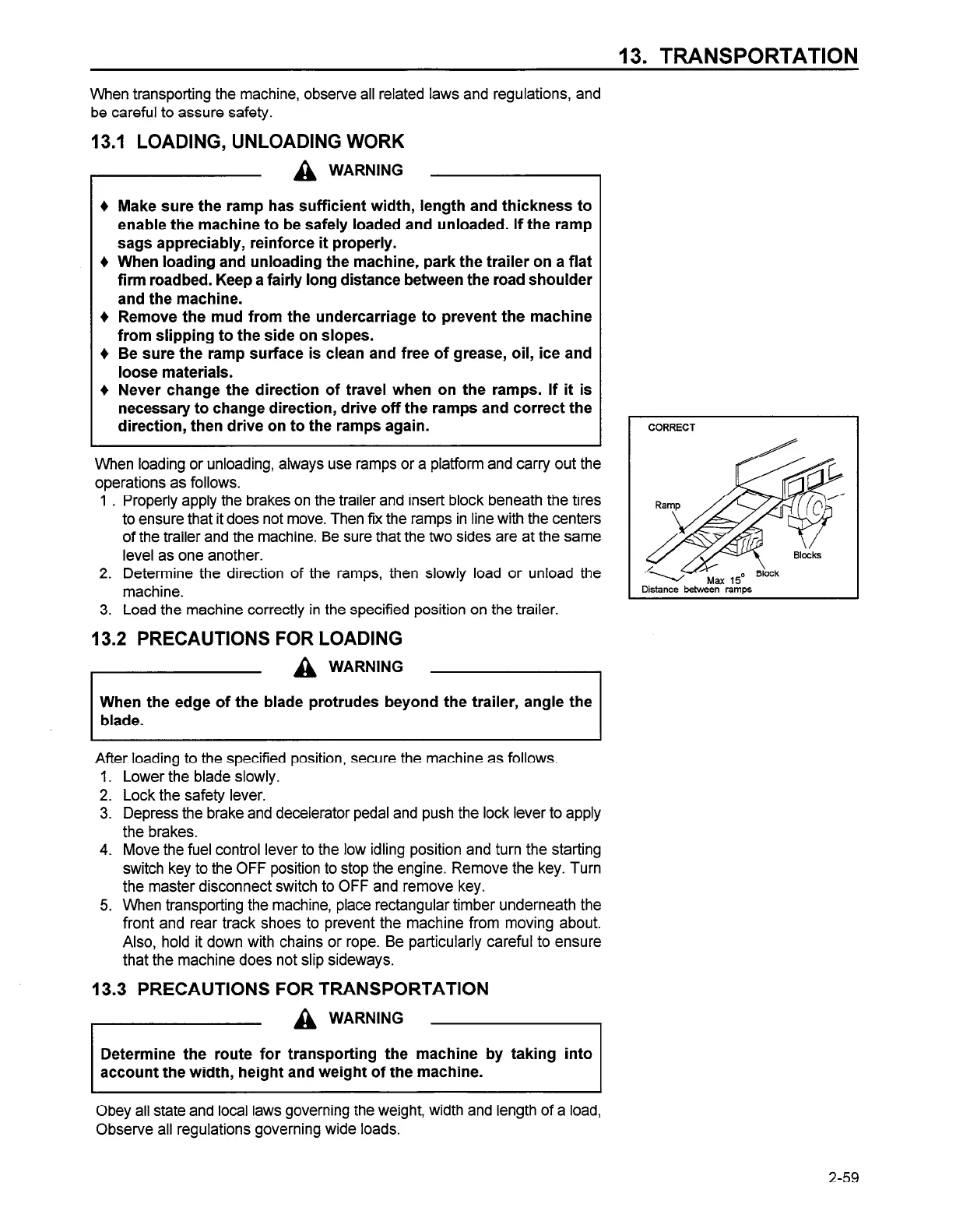

13. TRANSPORTATION
When transporting the machine, observe all related laws and regulations, and
be careful to assure safety.
13.1 LOADING, UNLOADING WORK
I A WARN’NG
Make sure the ramp has sufficient width, length and thickness to
enable the machine to be safely loaded and unloaded. If the ramp
sags appreciably, reinforce it properly.
When loading and unloading the machine, park the trailer on a flat
firm roadbed. Keep a fairly long distance between the road shoulder
and the machine.
Remove the mud from the undercarriage to prevent the machine
from slipping to the side on slopes.
Be sure the ramp surface is clean and free of grease, oil, ice and
loose materials.
Never change the direction of travel when on the ramps. If it is
necessary to change direction, drive off the ramps and correct the
direction, then drive on to the ramps again.
When loading or unloading, always use ramps or a platform and carry out the
operations as follows.
1 . Properly apply the brakes on the trailer and insert block beneath the tires
to ensure that it does not move. Then fix the ramps in line with the centers
of the trailer and the machine. Be sure that the two sides are at the same
level as one another.
2. Determine the direction of the ramps, then slowly load or unload the
machine.
3. Load the machine correctly in the specified position on the trailer.
13.2 PRECAUTIONS FOR LOADING
After loading to the specified position, secure the machine as follows.
1.
2.
3.
4.
5.
Lower the blade slowly.
Lock the safety lever.
Depress the brake and decelerator pedal and push the lock lever to apply
the brakes.
Move the fuel control lever to the low idling position and turn the starting
switch key to the OFF position to stop the engine. Remove the key. Turn
the master disconnect switch to OFF and remove key.
When transporting the machine, place rectangular timber underneath the
front and rear track shoes to prevent the machine from moving about.
Also, hold it down with chains or rope. Be particularly careful to ensure
that the machine does not slip sideways.
13.3 PRECAUTIONS FOR TRANSPORTATION
I------ A WARN’NG -
Determine the route for transporting the machine by taking into
account the width, height and weight of the machine.
CORRECT
Obey all state and local laws governing the weight, width and length of a load,
Observe all regulations governing wide loads.
2-59
