Komatsu D32E-1 - 10. General View; 10.1 General View of Machine

IO. GENERAL VIEW

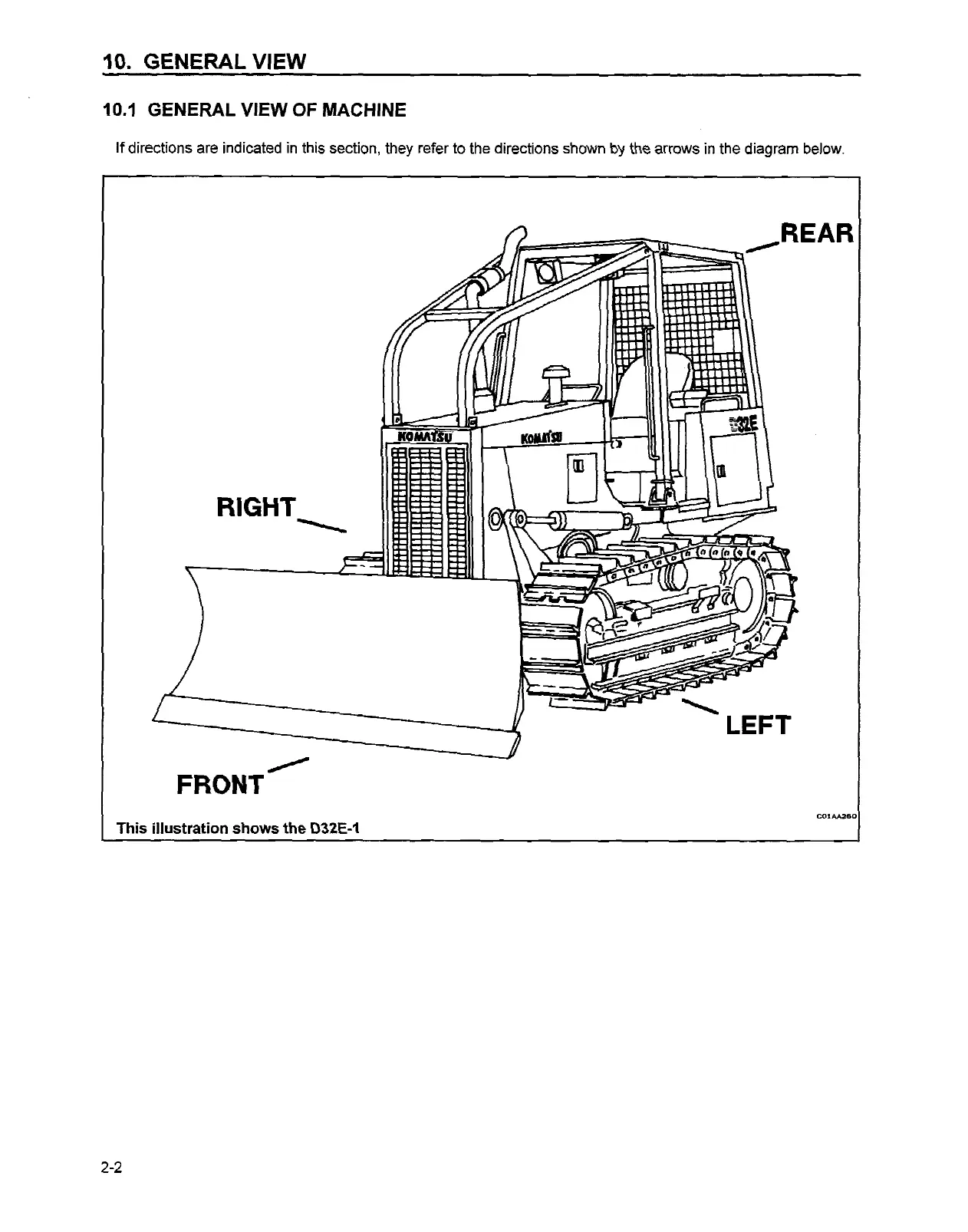

10.1 GENERAL VIEW OF MACHINE
If directions
are indicated in
this
section, they refer to the directions
shown by the arrows in the diagram below.
A
Pe
RIGHT
FRONT
This illustration shows the D32E-1
2-2
