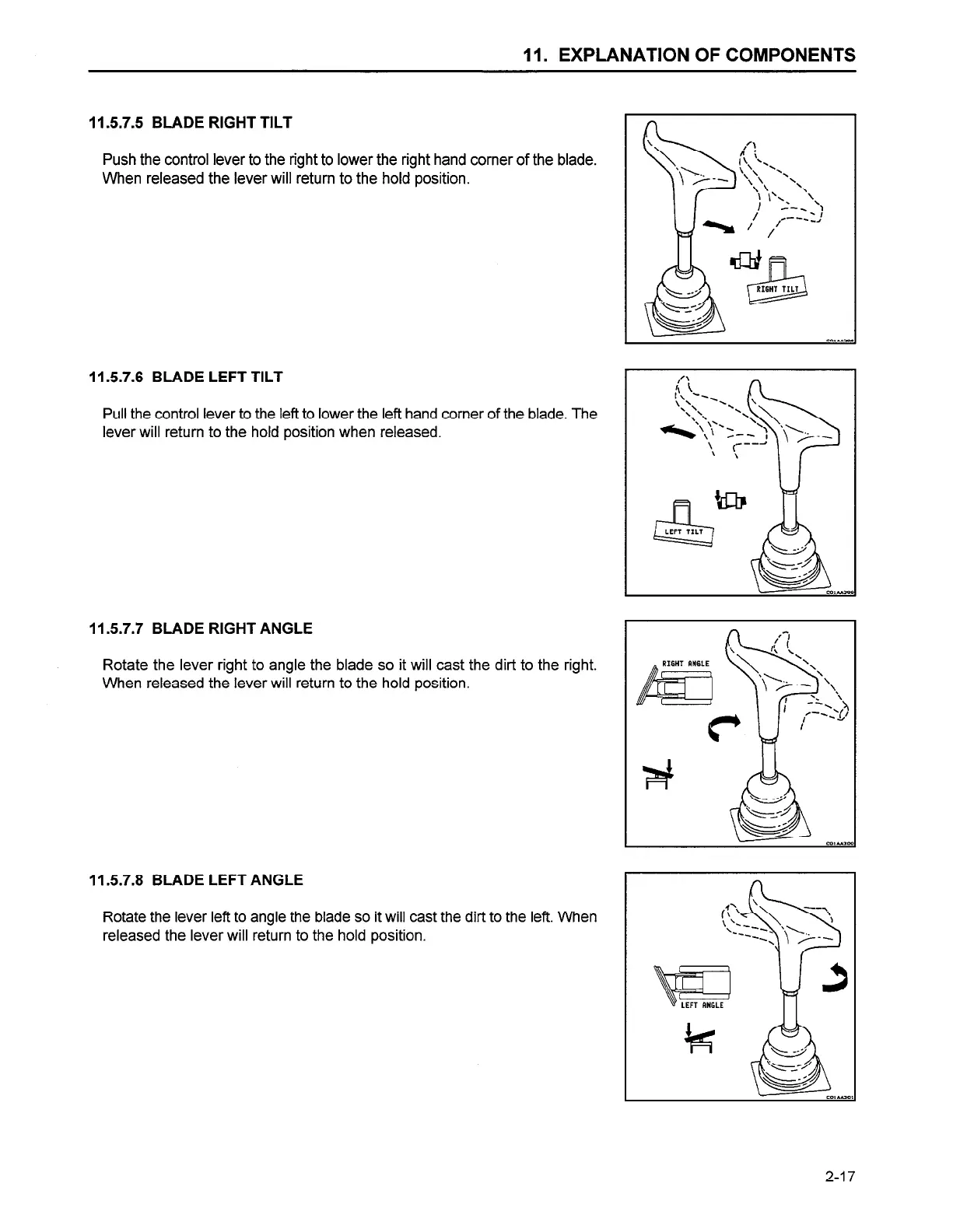

11. EXPLANATION OF COMPONENTS
11.5.7.5 BLADE RIGHT TILT
Push the control lever to the right to lower the right hand corner of the blade.
When released the lever will return to the hold position.
11.5.7.6 BLADE LEFT TILT
Pull the control lever to the left to lower the left hand corner of the blade. The
lever will return to the hold position when released.
II 57.7 BLADE RIGHT ANGLE
Rotate the lever right to angle the blade so it will cast the dirt to the right.
When released the lever will return to the hold position.
11.5.7.8 BLADE LEFT ANGLE
Rotate the lever left to angle the blade so it will cast the dirt to the left. When
released the lever will return to the hold position.
