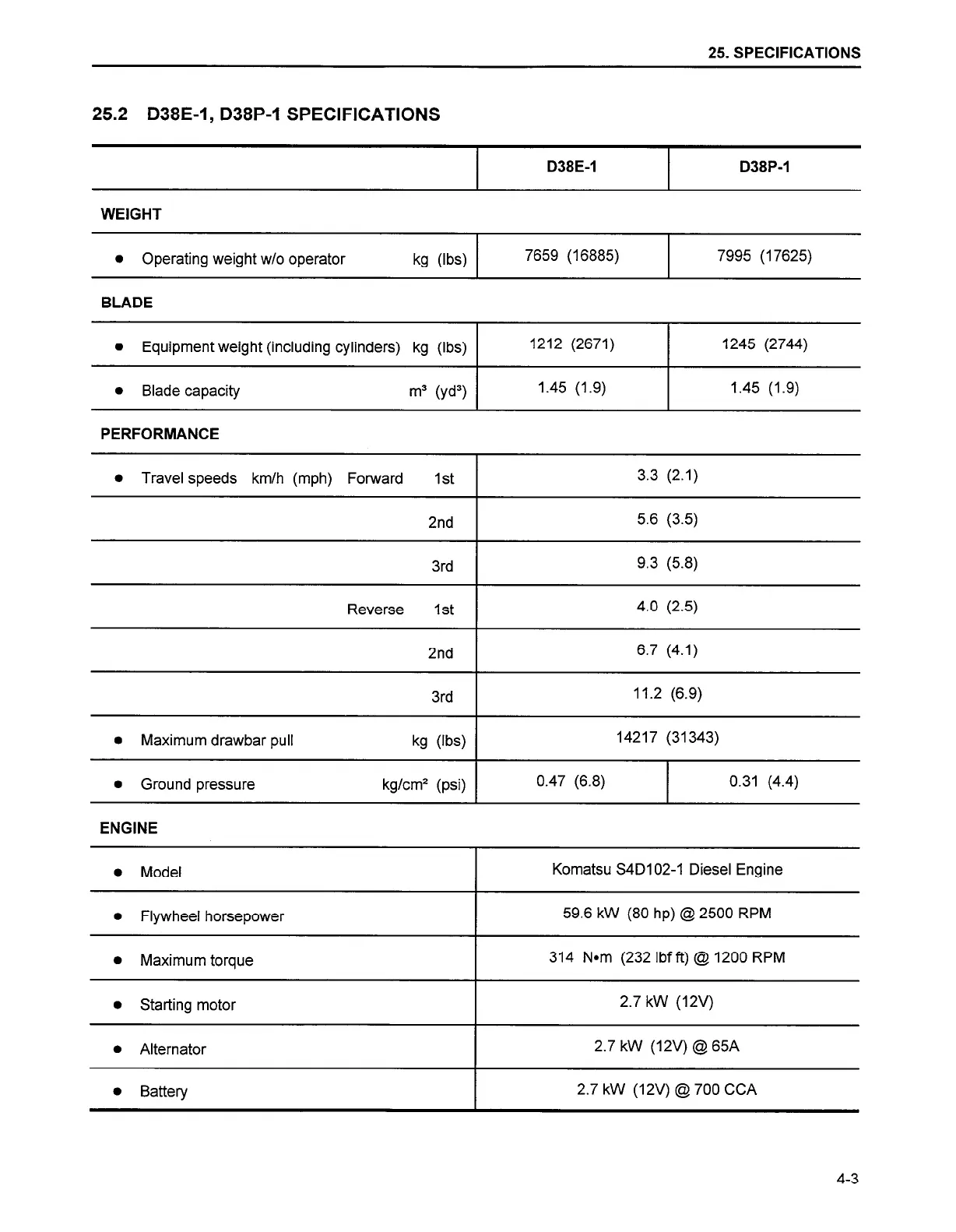

25. SPECIFICATIONS
25.2 D38E-1, D38P-1 SPECIFICATIONS
D38E-1
D38P-1
WEIGHT
l Operating weight w/o operator
kg (tbs)
7659 (16885) 7995 (17625)
BLADE
l Equipment weight (including cylinders) kg (Ibs)
1212 (2671) 1245 (2744)
l Blade capacity
m3 W3) 1
1.45 (1.9)
PERFORMANCE
l Travel speeds km/h (mph) Forward
1st
3.3 (2.1)
5.6 (3.5)
3rd
9.3 (5.8)
Reverse
1st
4.0 (2.5)
6.7 (4.1)
3rd
11.2 (6.9)
l Maximum drawbar pull
l Ground pressure
kg (Ibs)
kg/cm2 (psi)
14217 (31343)
0.47 (6.8) 0.31 (4.4)
ENGINE
l Model
l Flywheel horsepower
Komatsu S4D102-1 Diesel Engine
59.6 kW (80 hp) @ 2500 RPM
l Maximum torque
314 N*m (232 Ibf ft) @ 1200 RPM
0 Starting motor
2.7 kW (12V)
l Alternator
2.7 kW (12V) @ 65A
l Battery
2.7 kW (12V) @ 700 CCA
4-3
