SUPER LONG FRONT BOOM AND ARM ATTACHMENTS AND OPTIONS

6-54

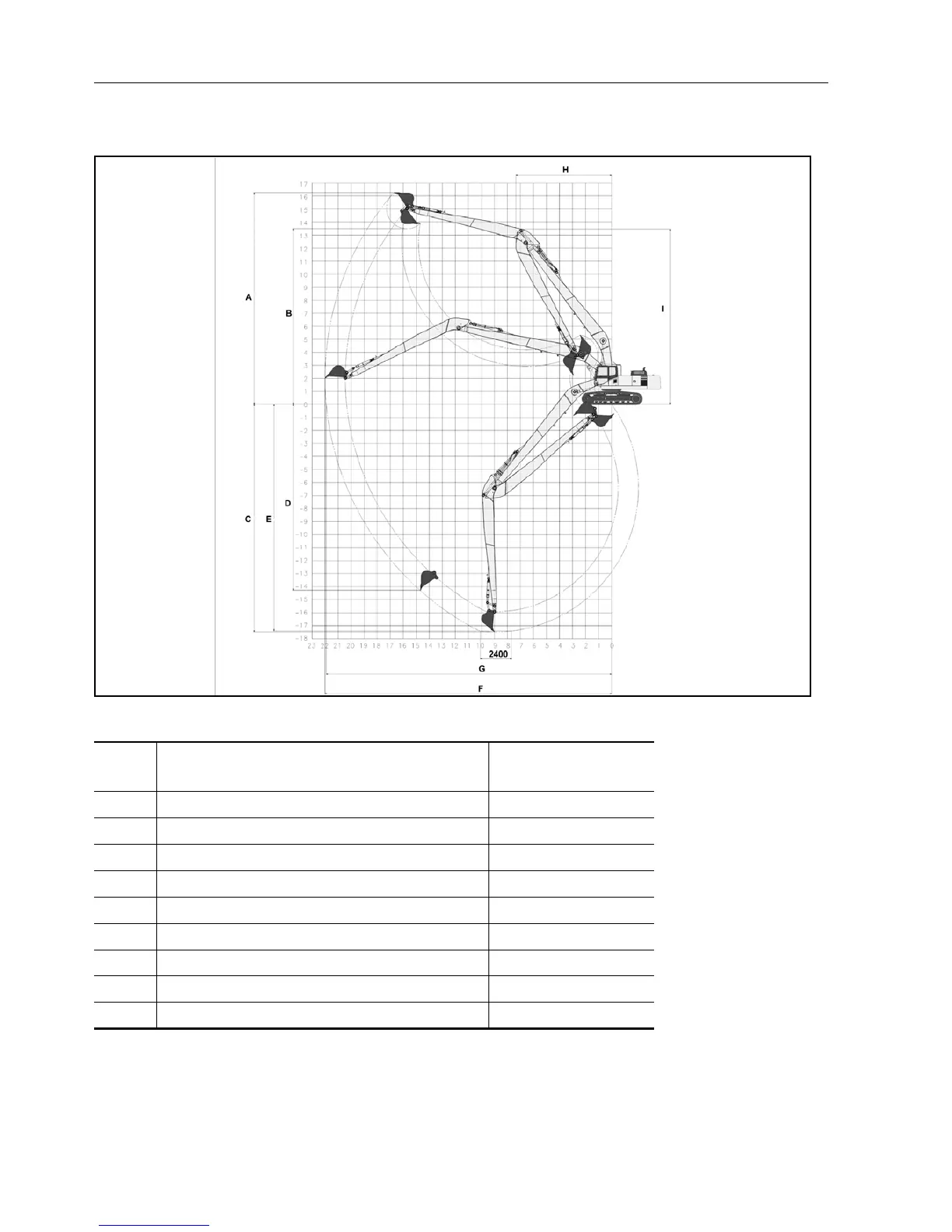

WORKING RANGE OF SUPER LONG FRONT

PC350LC - 8

(22m super long front)

A Maximum digging height (mm) 16260

B Maximum dumping height (mm) 13480

C Maximum digging depth (mm) 17485

D Maximum vertical wall digging depth (mm) 14275

E Maximum digging depth for 2400mm level (mm) 17410

F Minimum digging reach (mm) 22010

G Maximum reach at ground level (mm) 21915

H Minimum swing radius (mm) 7350

I Maximum height of minimum swing (mm) 13445
