MAINTENANCE
3-46

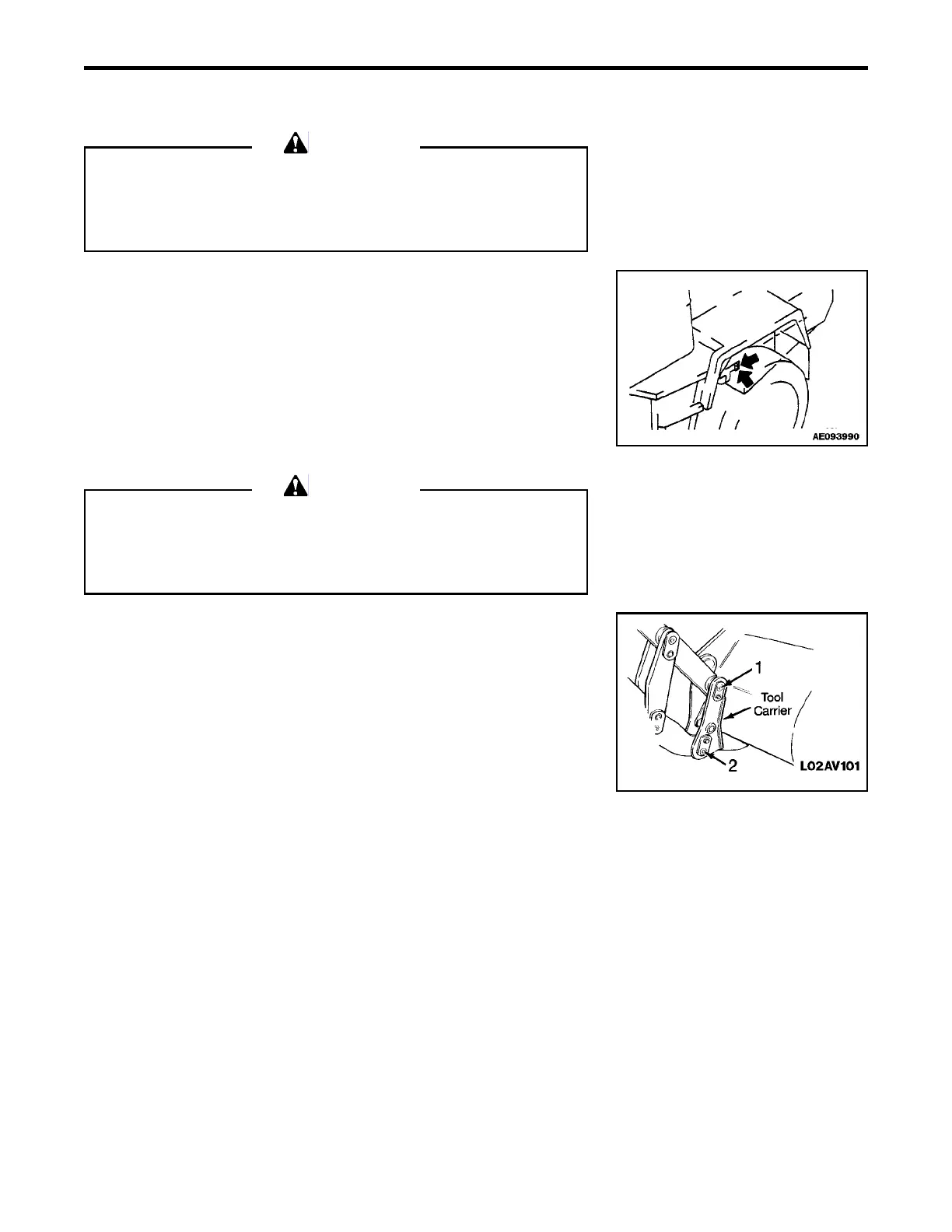

24.5.3 LUBRICATING
WARNING
!! Apply the parking brake, and lock the front and rear frames with
the safety bar and pin.
!! set the work equipment in a stable condition, then turn OFF the
engine and apply the locks for the work equipment control levers.
1 Use a grease pump tp pump in grease through the grease fittings marked
by the arrows in the following diagrams.
2 After greasing, wipe off any old grease that was pushed out.
Rear axle pivot pin (2 places)
WARNING
!! Set the work equipment in a stable condition, then turn OFF the
machine and apply the lock for the work equipment control levers.
!! Apply the parking brake, and lock the front and rear frames with
the safety bar and pin.
1. Use a grease pump to pump in grease through the grease fittings marked
by the arrows.
2. After greasing wipe off any old grease that was pushed out.
1. Bucket link pin (Tool carrier) - (2 places)
2. Bucket hinge pin (Tool carrier) - (2 places)
