MAINTENANCE
3-51
24.6.7 LUBRICATING
WARNING
!! Set the work equipment in a stable condition, then turn OFF the
machine and apply the lock for the work equipment control levers.
!! Apply the parking brake, and lock the front and rear frames with
the safety bar and pin.
1. Use a grease pump to pump in grease through the grease fittings marked
by the arrows.
2. After greasing wipe off any old grease that was pushed out.

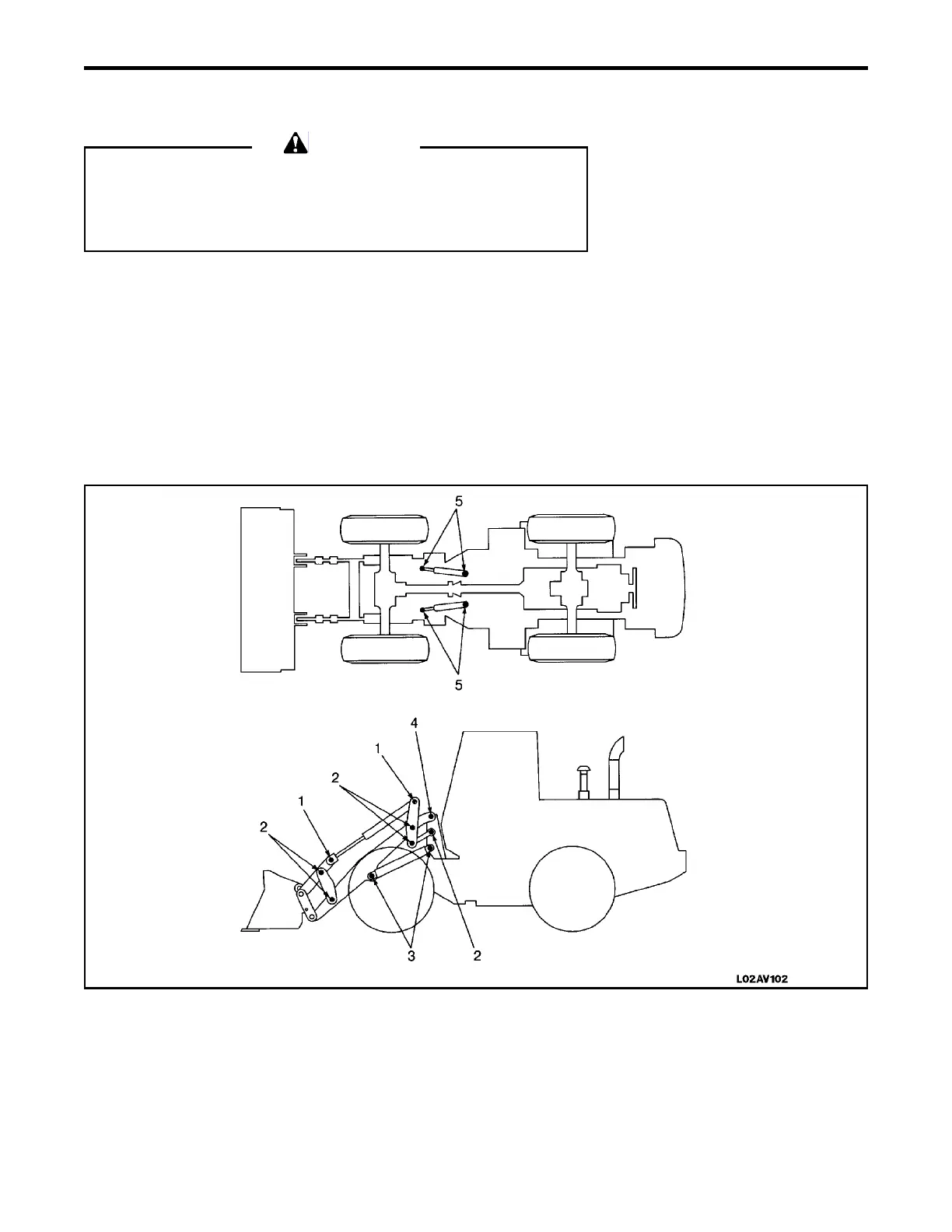

1. Dump cylinder pin (4 places)
2. Loader link pin (10 places)
3. Lift cylinder pin (4 places)
4. Lift arm pivot pin (2 places)
5. Steering cylinder pin (4 Places)
