24.7.2 REPLACE TRANSMISSION OIL FILTER ELEMENT

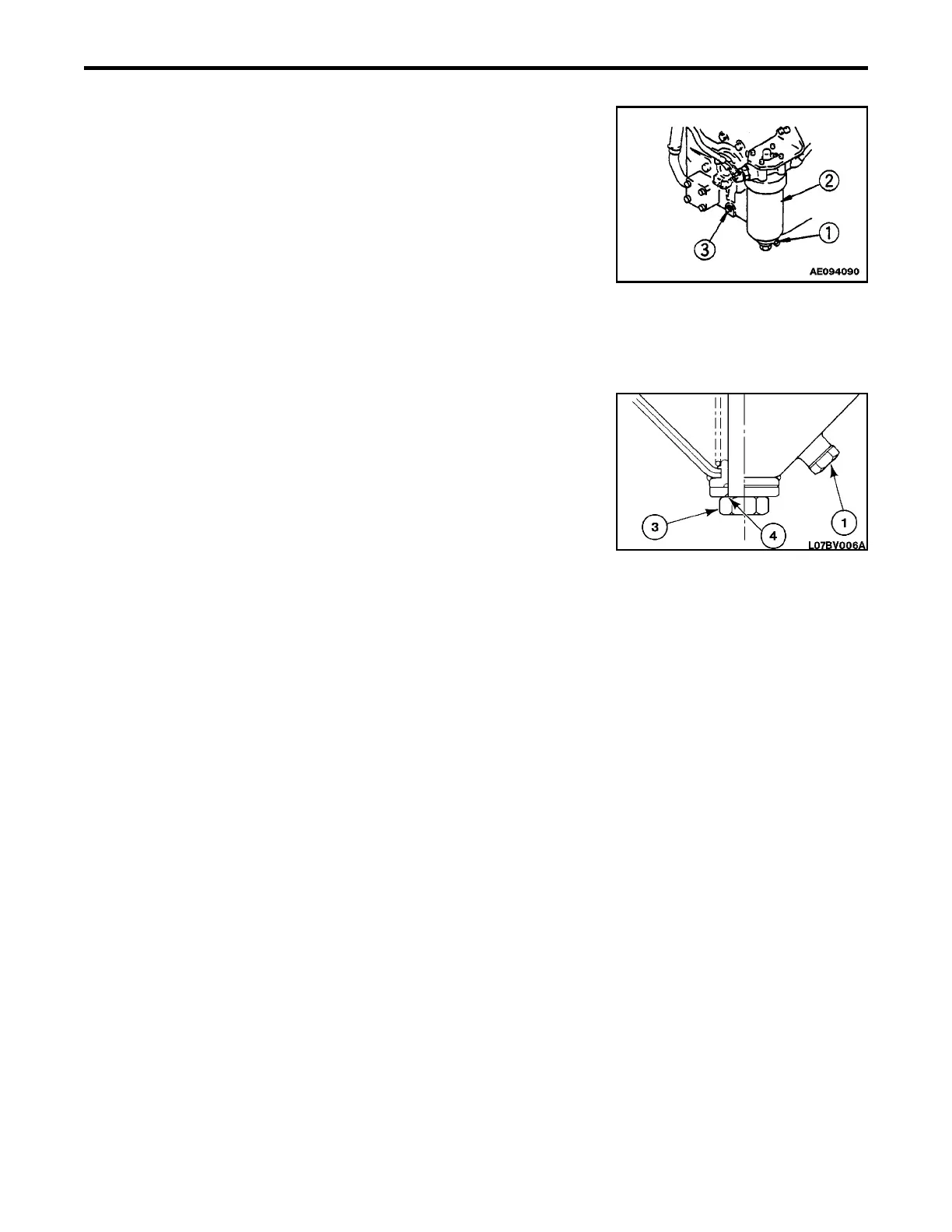

1. Set a container under the filter case to catch the oil then remove drain
plug (1) at the bottom of the filter case, and drain the oil. After draining the
oil, tighten the plug.
Torque to: 107.9 ± 14.7 NCm (11 ± 1.5 kgm, 79.6 ± 10.8 lbf ft)
2. Hold case (2) and loosen center bolt (3), then remove case (2).
Be sure to use a genuine filter element.
Replace the filter gasket and O-rings with new parts. Coat the gasket and
O-rings with clean engine oil before installing.
3. Remove the element, and clean the inside of the case. Assemble a new
element, then install the case.
Before tightening center bolt (3), install bolt washer (4) so that its
chamfered surfaces faces the hexagonal head of the center bolt.
Be careful not to apply excessive torque to center bolt (3).
Torque to: (3) to 76.5 ± 11.8 NCm (7.8 ± 1.2 kgm, 56.4 ± 8.7 lbf ft)
4. Run the engine for a short period of time at idle, then turn the engine off
and check that the oil is at the specified level.
For details, see "24.2.2 CHECK TRANSMISSION OIL LEVEL, ADD OIL"
on page 3-33
