SEN03837-01
WA250, 250PZ-6 30-120 15
120 Testing and adjusting, Part 2
Testing hydraulic fan
Testing hydraulic fan 1
Necessary tools
k Stop the machine on a level ground, lower
the work equipment to the ground, and set
chocks under the tire securely.
k When removing the measurement plug and
disconnecting the hose, loosen the oil filler
cap slowly to release the pressure inside
the hydraulic tank.
a Measurement conditions
q Hydraulic oil temperature: 45 – 55°C
a Test the fan in a place where the fan blade and
probe will not be exposed to direct sunlight or
strong light.

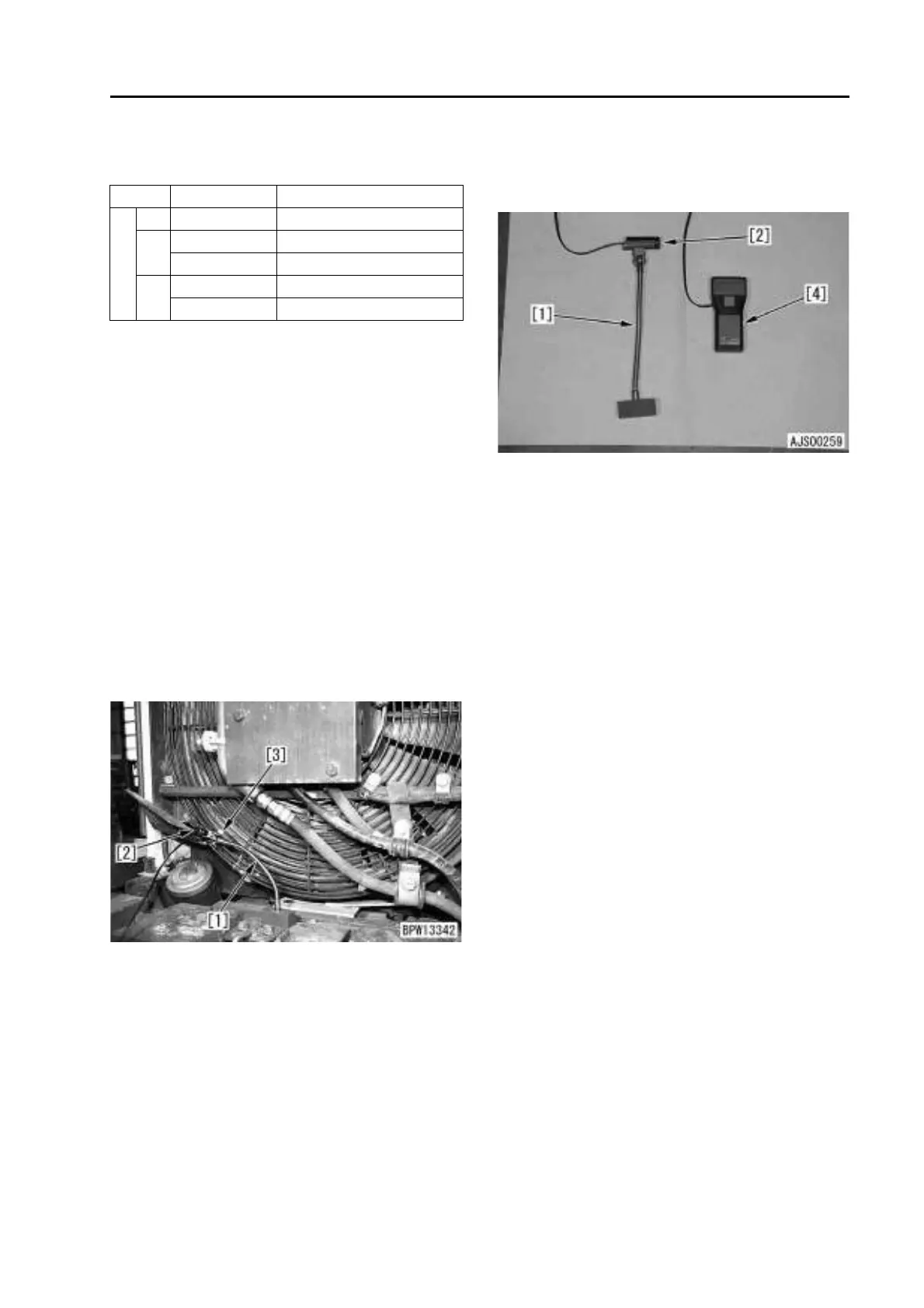

Testing fan speed
1. Open the radiator grill.
2. Install stand [1], probe [2], and reflecting tape
[3] in the tachometer kit Q1.
3. Connect the cable of probe [2] to tachometer
[4].
Tachometer kit Q1
4. Start the engine, run at high idle, and measure
the fan speed.
5. After finishing the work, remove the measuring
instruments and return the removed parts.
Symbol Part No. Part Name
Q
1 799-205-1100 Tachometer KIT
2
799-101-5002 Analog type hydraulic tester
790-261-1204 Digital type hydraulic tester
3
799-401-3300 Adapter
02896-11012 O-ring
To Next Page
