Operation 3.2 Descriptions of the individual elements
WA80M-7, WA100M-7 – VENAM03001
3-39
3.2.4 Steering lock

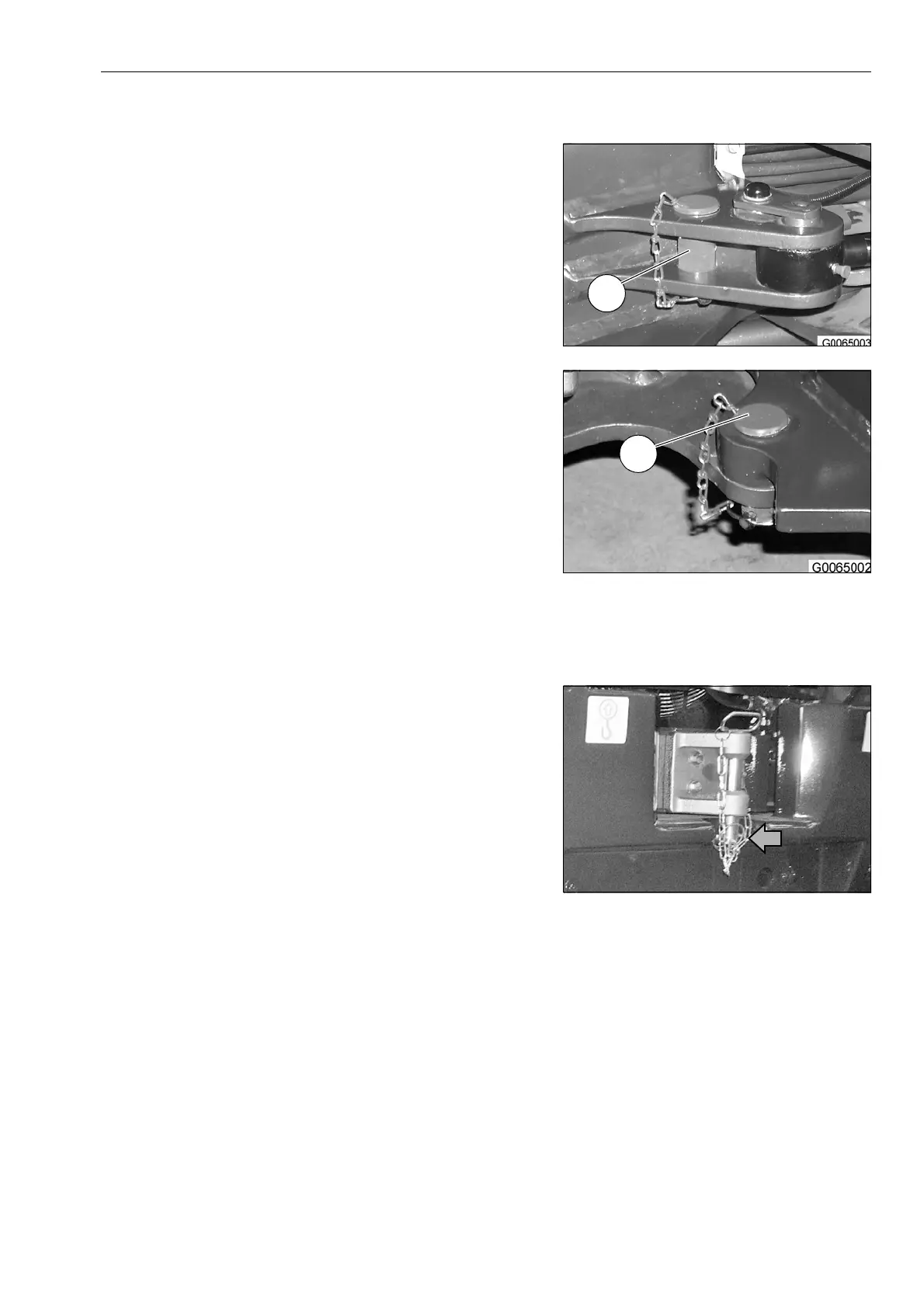

The steering lock provides a rigid connection between the front
and rear frame to prevent the steering from articulating. Lock the
articulated steering before lifting the machine and prior to repair
and maintenance work.
1. Park the machine in a straight line.
2. On the left side:
Loosen the spring pin and remove bolt (1).
3. On the right side:
Insert the bolt (2) and secure it with the locking bolt.
3.2.5 Tow hitch
Use the tow hitch e.g. for towing another machine.
Always secure the bolt of the tow hitch with the locking pin
attached to the chain.
