7.2 Bucket position indicator Special equipment, attachments
7-4 WA80M-7, WA100M-7 – VENAM03001

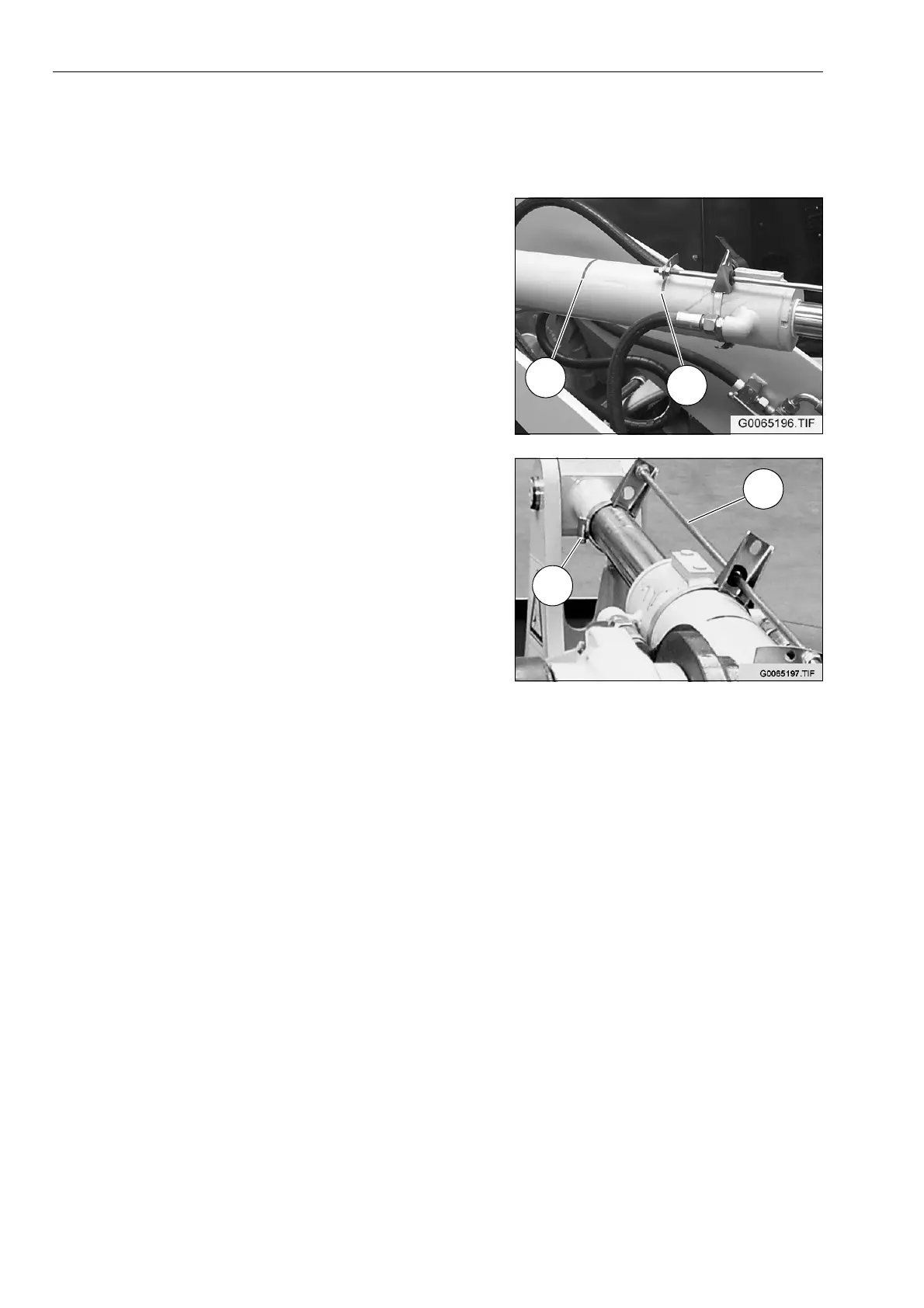

7.2 Bucket position indicator
(Option)
The bucket position indicator shows the status of the bucket.
NOTICE
When the quick coupler is dismounted, the clamp at the piston rod
(C) and indicator rod (D) have to be dismounted as well. Else the
cylinder seal could be damaged.
A
B
Mark A = Cylinder marking for horizontal fork position
(fork on the ground)
Mark B =
Cylinder mark for bucket in scraping position
D
C
