KGP-1
(Original Instructions)
2-12
P/N 810498 Rev C
© 2021 Konami Gaming Inc.
SECTION 2 - SET UP
ENVIRONMENTAL SPECIFICATIONS
Line Voltage Input: 100–240 VAC, 50 or 60 Hz�
27" topper and are based on an input voltage of 120 VAC:
• Power supply input voltage: 110 VAC: 108–120 VAC
(nominal 120 VAC) at 50/60 Hz�
• Power supply output voltage: +12 VDC, +24 VDC�
•
• Current draw at rest, (Dimension 27): 1�90A (228W)
•
• Current draw during game play (Dimension 27): 1�90A
(228W)
• Maximum operating ambient temperature: 104° F
(40° C)�
• Minimum operating ambient temperature: 32° F (0° C)�
• Maximum surface ambient temperature: 105° F (41�5° C)�
• Minimum surface ambient temperature: 32° F (0° C)�
• Maximum relative humidity: 95% (non-condensing)�
UNPACKING AND INSPECTING
Unpack and inspect the machine before you turn on the
power� If the machine has been damaged during shipping,
contact your Konami Distributor, or Konami Customer Service
Representative, depending on warranty and sales contract
terms�
For Return Merchandise Authorization (RMA) information,
see Section 1 of this manual�
Carefully unpack and remove all loose parts and shipping
materials� Then, do the following:
• Inspect components for damage�
• Verify the power cord is properly routed from the cabinet�
•
• Check all display areas for signs of broken glass or bulbs�

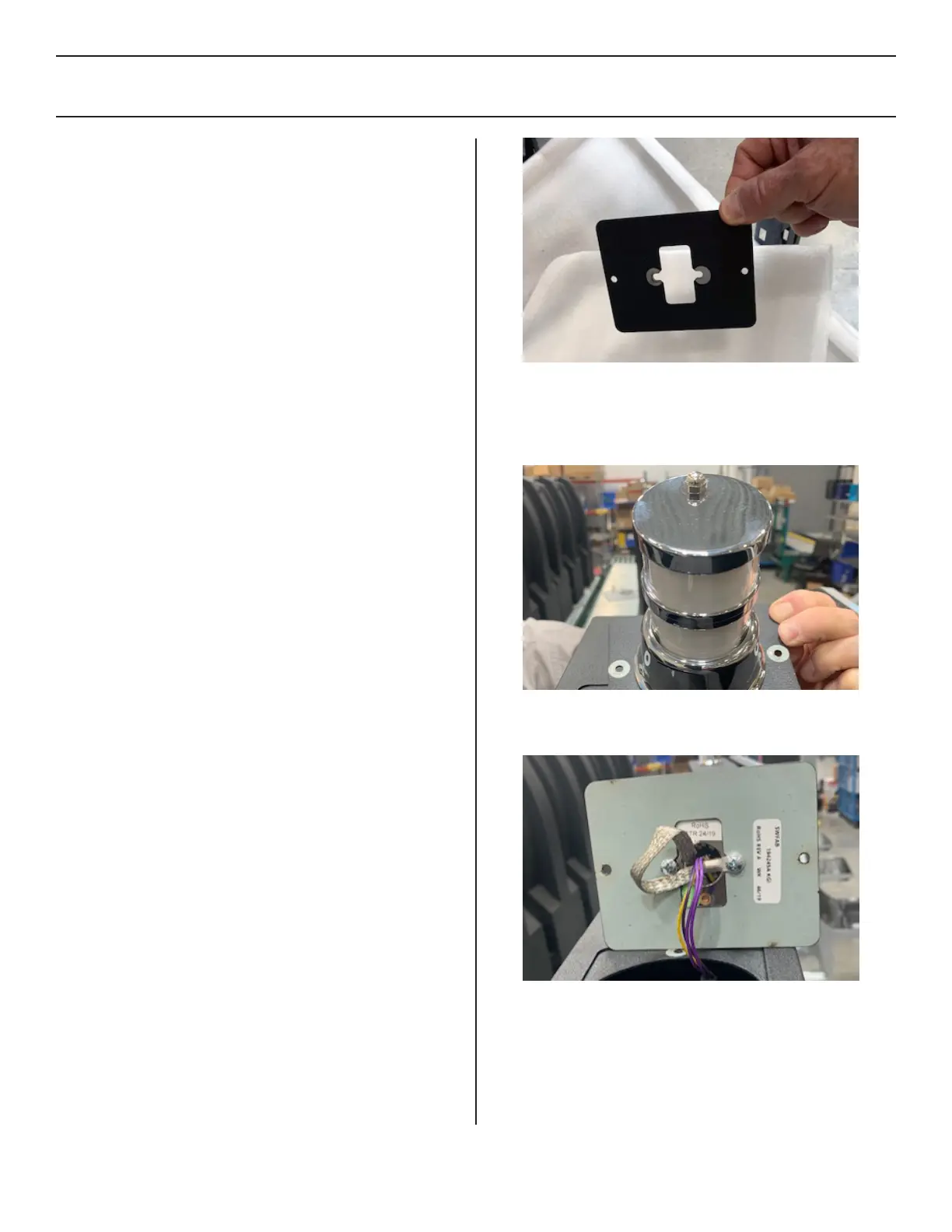

CANDLE INSTALLATION
1� Open the Main Deck�
2�
3� Remove the adapter plate�
Adapter plate
4� Mount the candle to the adapter plate using two 8-32
UNC screws, securing both candle frame ground (FG)
and harness ground to one of the screws�
Mounted candle
5� Connect the candle to the machine wiring harness�
Candle connected to wiring harness
6� Replace the adapter plate�
7� Turn on machine power�
8� Close the Main Deck�
