SECTION 2 - SET UP
Lock Cams
machine�
NOTE: Locks are supplied for shipping purposes only.
It is recommended that all locks be replaced with owner/
operator approved and secured locks.

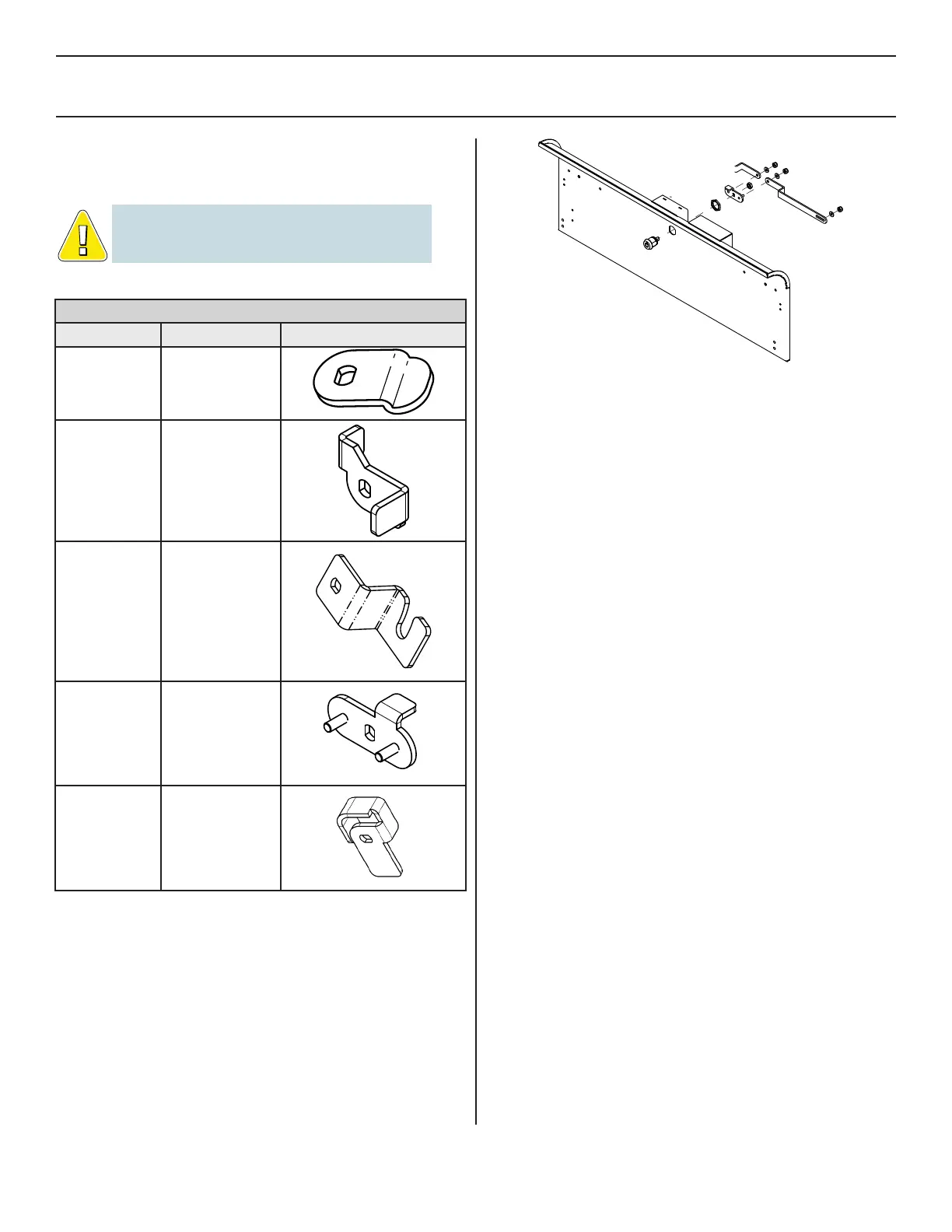

LOCKING CAMS
PART # DESCRIPTION
194520 CAM, LOCK,
LOGIC UNIT
(CPU) DOOR
192913 CAM, LOCK,
DECK
194251 CAM, LOCK,
STAND DOOR
(FOOTREST)
194252 CAM, LOCK,
BELLY DOOR
194265 CAM, LOCK,
BV (CASHBOX)
DOOR
General Lock Replacement
1� Remove 9/32-28 UNF nut and cam from shaft�
2� Remove 3/4-28 UNF nut from lock�
3� Remove Key Cylinder�
4� Install new Key Cylinder�
5� Secure with 3/4-28 UNF nut�
6� Install cam and 9/32-28 UNF nut on shaft�
Belly Door Lock Replacement
Belly Door Lock
1� Open the Belly Door�
2� Replace the lock�
3� Install the cam so that the Key Cylinder rotates 90 degrees
clockwise to unlock�
4� Make sure that the lock is installed properly by locking
and unlocking the Belly Door�
5� Close the Belly Door�
If any of the below problems arise before powering on, check
that the key works properly for the installed lock�
• You cannot easily open or close the door�
• You cannot remove or turn the key�
If the SUB DOOR OPEN message appears after powering
on, check that the above Door Lock procedure was performed
properly�
The probable causes of the error are:
• The lock is not installed properly�
• The Logic Door Switch is not depressed completely�
If the SUB DOOR ACCESSED message appears after
powering on, turn the Reset Key Switch�
For more information on the Bell Door, refer to the DOOR
section in the KXP Setup Manual, part number 810497�
