KONE ReSolve 200
Installation Instruction
18 (258) AM-10.65.001
(D) 2013-04-17
© 2009 KONE Corporation
All rights reserved.
Pit access
See AM-01.03.010, Safe working in elevator shaft and machine room areas.
Safe access to all work areas
See AM-01.03.010, Safe working in elevator shaft and machine room areas.

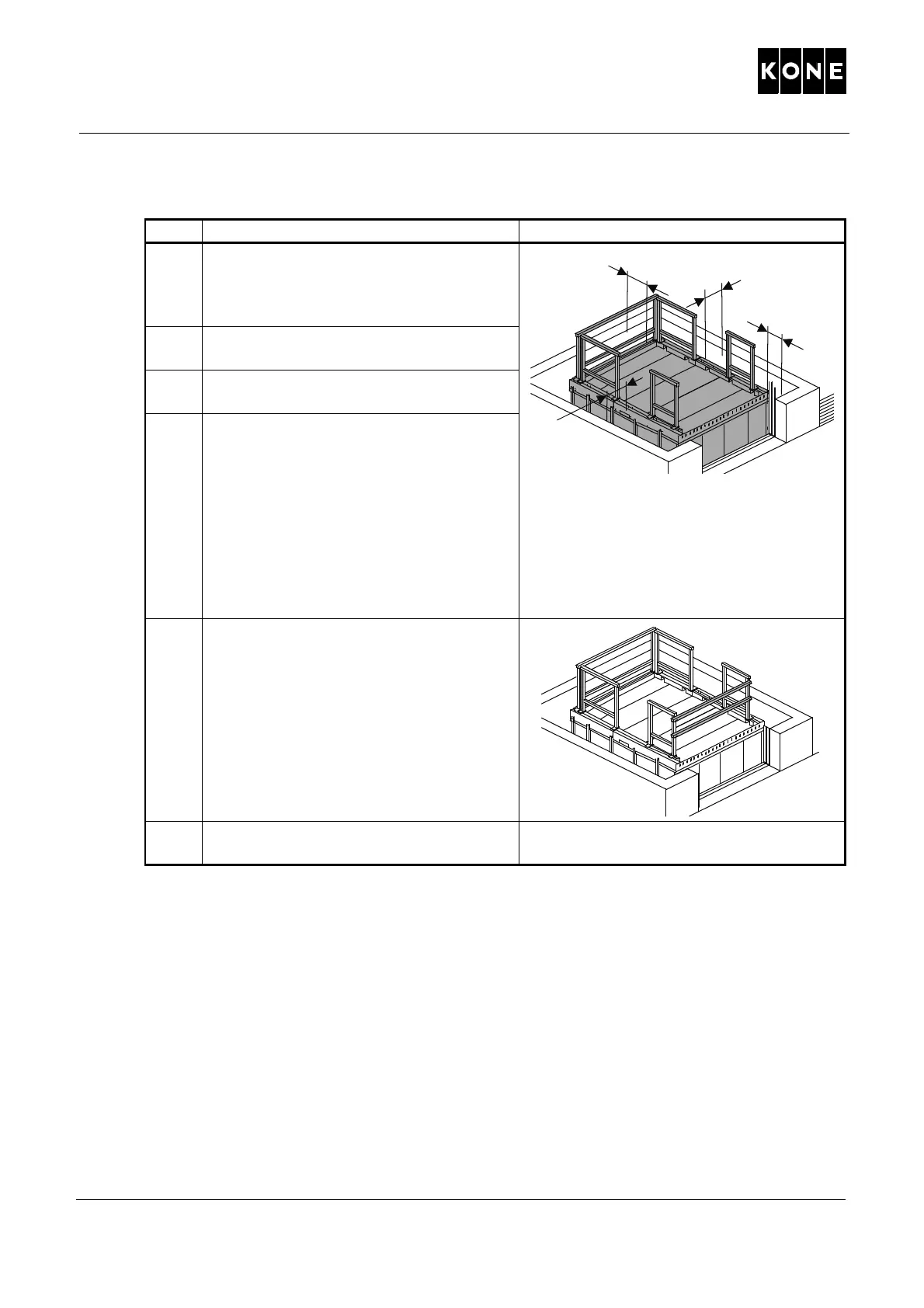

Step Action Note
1 Measure the distances between the car
wall and the elevator shaft wall.
If the gap is less than 300 mm the
balustrade is not needed.
NOTE!For hydraulic elevators, prevent
upwards movement before working
on car roof by disconnecting the up
direction solenoid.
2 If the gap is 100 mm to 299 mm, fix the
kick plate.
3 If the gap is 300 mm to 850 mm, use at
least 0.7 m high balustrade.
4 If the gap is larger than 850 mm, use a
1.1 m high balustrade.
If the clearance between the balustrade
top bar and the lowest obstruction in
the headroom when the counterweight
is on the buffer or when the cylinder is
fully extended (hydraulic elevators)
would be less than 300 mm,
temporarily increase the height of
counterweight buffer or use props.
5 If the landing doors have been
removed, the gap on the landing side
may exceed 300 mm.
In that case, install an extra detachable
handrail (provided locally) to the
balustrade on the landing side.
Refer to site survey if available.
6 If it is not possible to use a balustrade,
fall arrest equipment must be available.
