KONE ReSolve 200
Installation Instruction
20 (258) AM-10.65.001
(D) 2013-04-17
© 2009 KONE Corporation
All rights reserved.
Tools
• Normal hand tools
• 2x PERI adjustable multi prop 250. See APPENDIX D., Estimating the mass of the
counterweight.
• 2x Pit prop fixing
• Two chains for securing the car according to mass
of car + 200 kg.
• Manual chain hoist for lifting of control panel to the
machine room (200 kg capacity).
• Multimeter (Fluke 179 or equivalent) and long
insulated test probes (minimum length 100
mm)
• Electrostatic Discharge (ESD) kit, KM857505
• RUD eye bolts (optional)
• Working stool / scaffolds
• Insulation resistance meter
• Handheld tachometer
• Electric drill
• Portable crane
• Extension tool KM796238G10050 for landing
doors
• Pull rope, minimum length = Elevator shaft height + 5 m.
• KONE MiniConsole
NOTE! These tools can be used in several KCE installations, store them for later use.

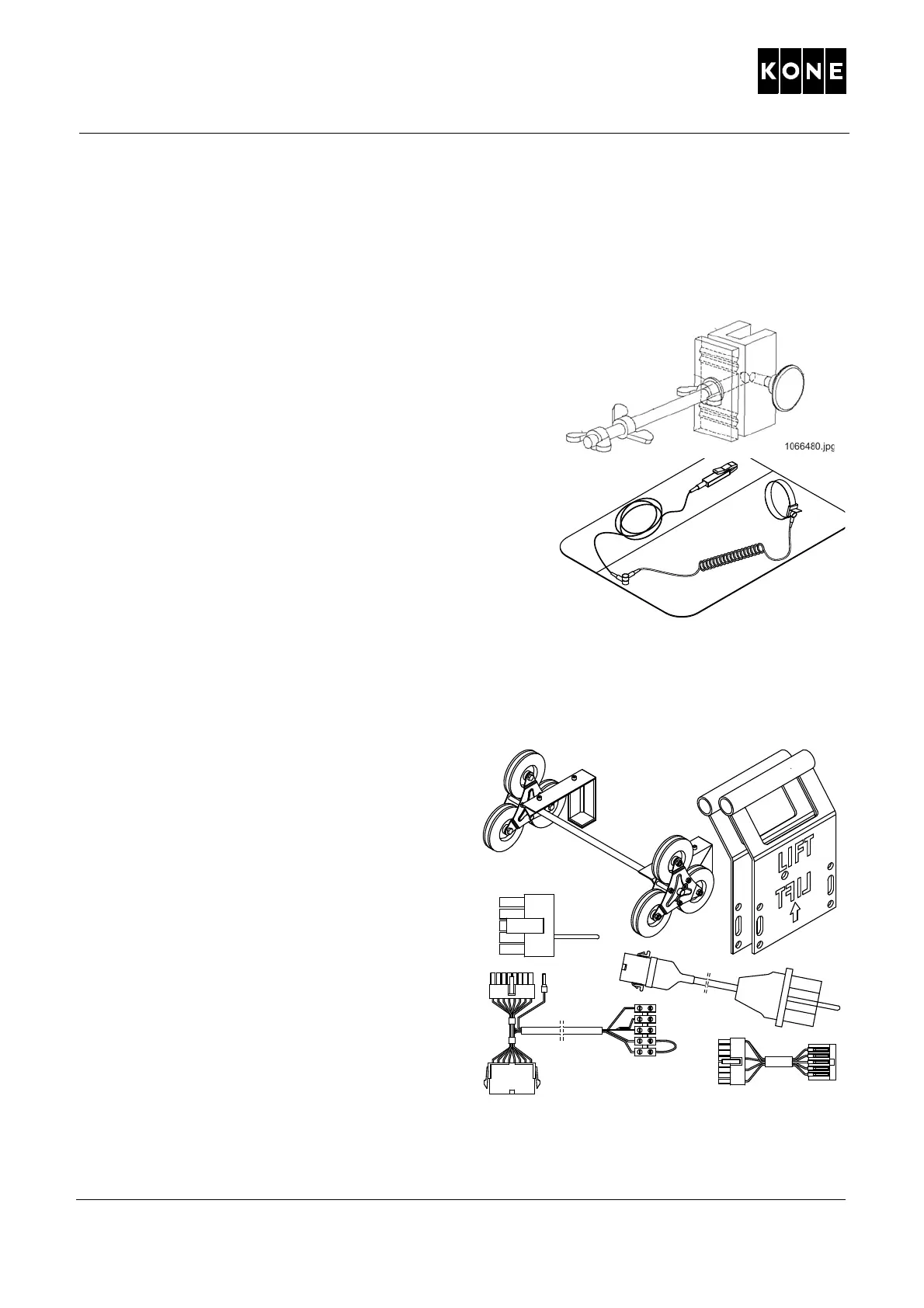

• Group of parts, cabinet trolley adapt
KM5002834R01 including:
• lifting handles KM796643H51
(see 6.1.1, Transporting and hoisting
the control panel)
• stair-climber wheels and frame
KM50012010G01
• Extension tool KM796238G10050
(see 6.6, Connecting the extension tool)
• Installation tool, plug
KM796239G10070
(see 6.6, Connecting the extension tool)
• Shaft light installation tool
KM796237G10300
(see 8, Installation of shaft lighting)
• 24V DC ground fault test wire
KM796185G10100
• Magnet installation tool (optional)
KM50086979G01
