3.2 General Assembly : WP30
Refer to Drawing No. E03516. Assembly is identical to the WP10with the following
exception:

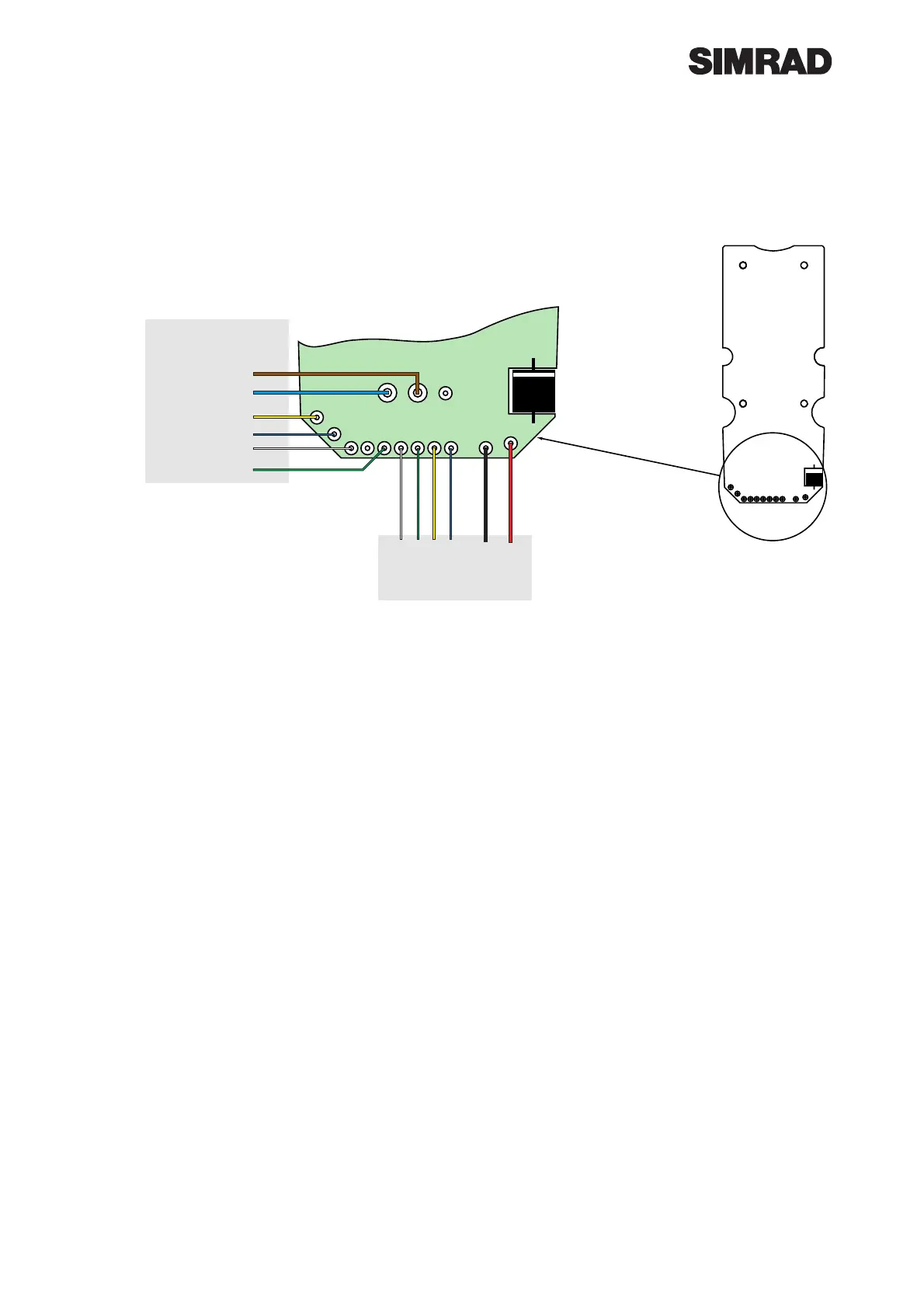

PCB Wiring Sub-Assembly. Refer to E03054and the sketch below.
Solder the 6 wires from the 6 Way Loom and the 6 from the Motor Cable E03049 to
the PCB assembly E03178. Fit the PCB assembly into the Top Case Assembly
E03241 and attach with 4 off No. 4 x 3/8 Pan Poz Screws 200139 and fully tighten.
14
Issue 1.0 16/12/99
YELLOW
BLUE
BLACK 0V
RED +V
WHITE
GREEN
From 6 wire loom
(6 separate wires)
YELLOW
BROWN (RED)
BLUE (BLACK)
WHITE
GREEN
From Motor Cable
E03049
BLUE
To Next Page
