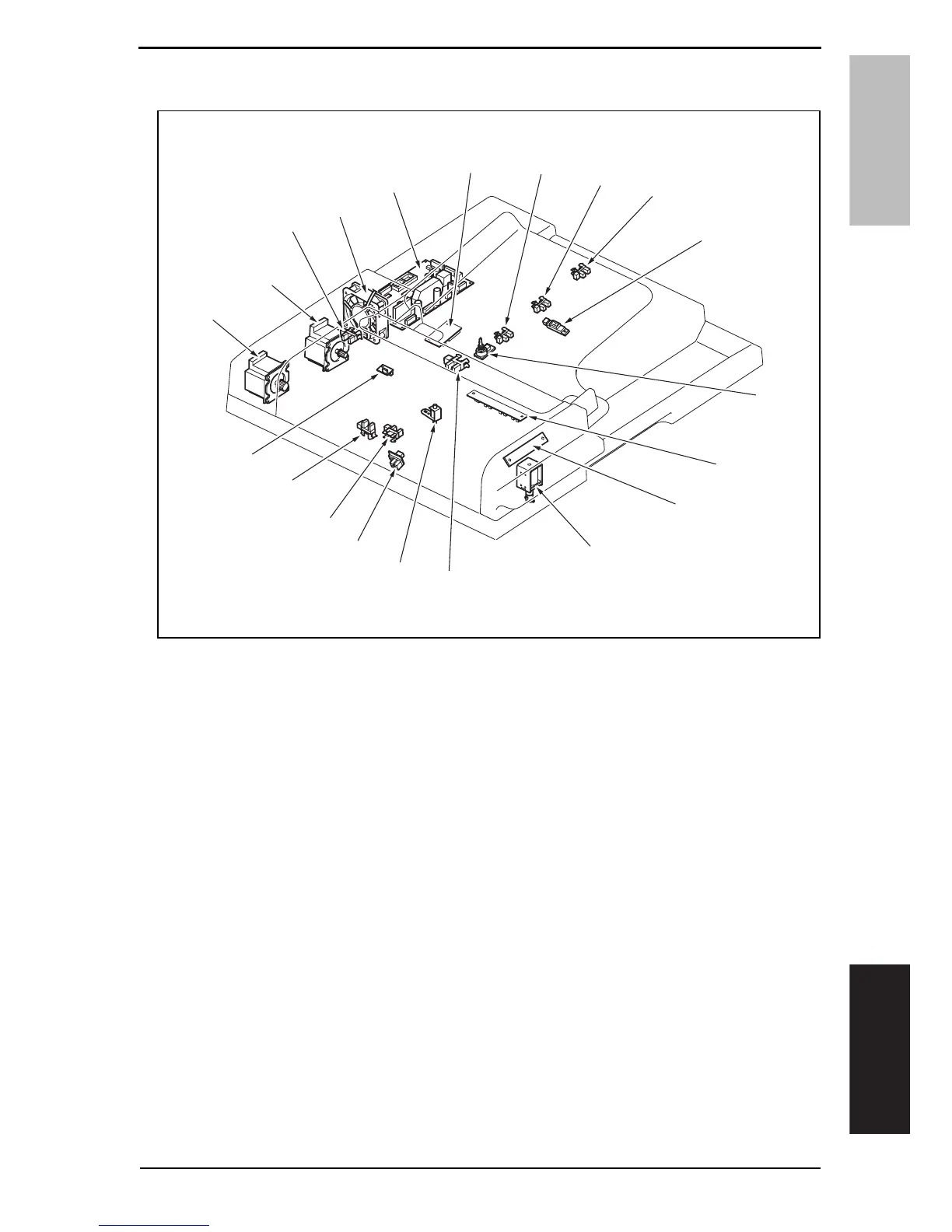

Field Service Ver. 2.0 Apr. 2006 22. Parts layout drawing
283
bizhub 200/250/350Appendix
22.4 DF-605
[1] Interface Board (PWA-TRAY) [11] Stamp Solenoid (SL2-ADF)
[2] FD Paper Size Detection Sensor 1
(PC1-ADF)
[12] Original Detection Sensor (PC8-ADF)
[3] FD Paper Size Detection Sensor 3
(PC3-ADF)
[13] Exit/Turnover Sensor (PC10-ADF)
[4] FD Paper Size Detection Sensor 4
(PC4-ADF)
[14] Registration Sensor (PC9-ADF)
[5] FD Paper Size Detection Sensor 2
(PC2-ADF)
[15] Separator Sensor (PC6-ADF)
[6] Variable Resistor (PBA-VR) [16] Transport Motor (M2-ADF)
[7] Mix Document Size Detection Board
(PBA-SIZE)
[17] Paper Feed Motor (M1-ADF)
[8] Print Lamp Board (PBA-LED) [18] Upper Door Open/Close Sensor (PC7-ADF)
[9] Exit Roller Retraction Solenoid (SL1-
ADF)
[19] Cooling Fan Motor (M3-ADF)
[10] Empty Sensor (PC5-ADF) [20] Main Control Board (PBA-CONT)
4040F5C525DA
[2]
[1]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
