Konica Minolta CM-26dG User Manual

10099
Setting
3
 Custom
Select the items, including the color space, color dierence equation, or index, to be used. Up to 14 items (Custom
01 to Custom 14) to be displayed can be set.
This selection screen is available when the user index has been set with the optional Color Management Software
SpectraMagic NX (CM-S100w) in advance.
Memo
The custom display items are set to “None” when the instrument is shipped from the factory.
Operating Procedure Start the procedure from the <Measurement cond.> - <Display cond.> screen.

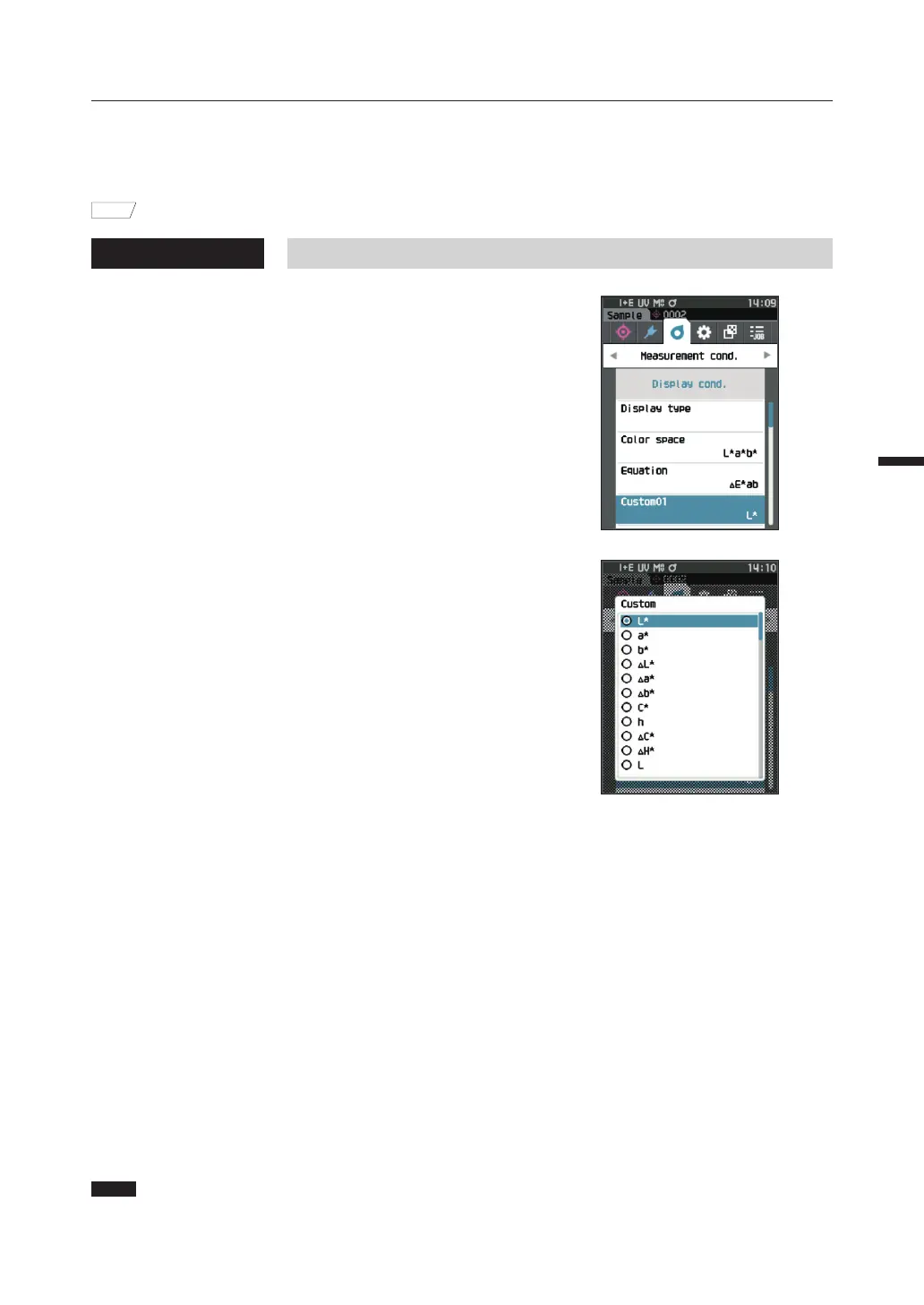

1 Use [▲] or [▼] to move the cursor to “Custom xx (01
to 14)”, and then press the [Confirmation] key.
The screen for selecting the display items is displayed.
The scroll bar at the right on the screen shows that there
are additional display items that cannot fit on the screen.
2 Use [▲] or [▼] to move the cursor to the desired
display item.
Moving the cursor past the top or bottom of the list will
show additional display items that cannot fit on the screen.
Settings
The following indexes as well as display color values and
color dierences for color spaces that can be configured
under color space and color dierence equation can be set.
{ WIe (WI E313-73) and ΔWIe : Whiteness index (ASTM E313-73)
{ WIc (WI CIE) and ΔWIe : Whiteness index (CIE 1982/
ASTM E313-98 (D65 Light source) )
{ Tint (Tint CIE) and ΔTint : Tint (CIE 1982/ASTM E313-98
(D65 Light source) )
{ YIe (YI E313-73) and ΔYIe : Yellowness index (ASTM E313-73)
{ YId (YI D1925) and ΔYId : Yellowness index (ASTM D1925)
{ B (ISO B) and ΔB : Brightness
{ DXYZ/DX/DY/DZ : Strength
{ MI : Metamerism
{ GU, ΔGU : CM-26dG : Gloss index
8°GU : CM-26d, 25d
{ ΔE99o : ΔE99o (DIN99o) color dierence equation
{ Greyscale (ISO A105) : Grey Scale (ISO 105-A05)
{ WI (Ganz) and Δ WI (Ganz) : Whiteness index (Ganz & Griesser)
{
Tint (Ganz) and Δ Tint (Ganz) : Tint (Ganz & Griesser)
{ None
{ UE1 to UE3 : User index
{ UC1 to UC3 : User class
3 Press the [Confirmation] key to confirm, and then press [ESC].
The selection is confirmed and the screen returns to the previous screen.
Notes
If [ESC] is pressed without pressing the [Confirmation] key, the settings will not be changed, and the screen
will return to the <Display cond.> screen.
