Kontron ETX CD - Block Diagram

3 Specifications
Kontron User's Guide ETX CD 13
Watchdog timer (WDT): Winbond Super I/O
Real-time clock (requires external battery)

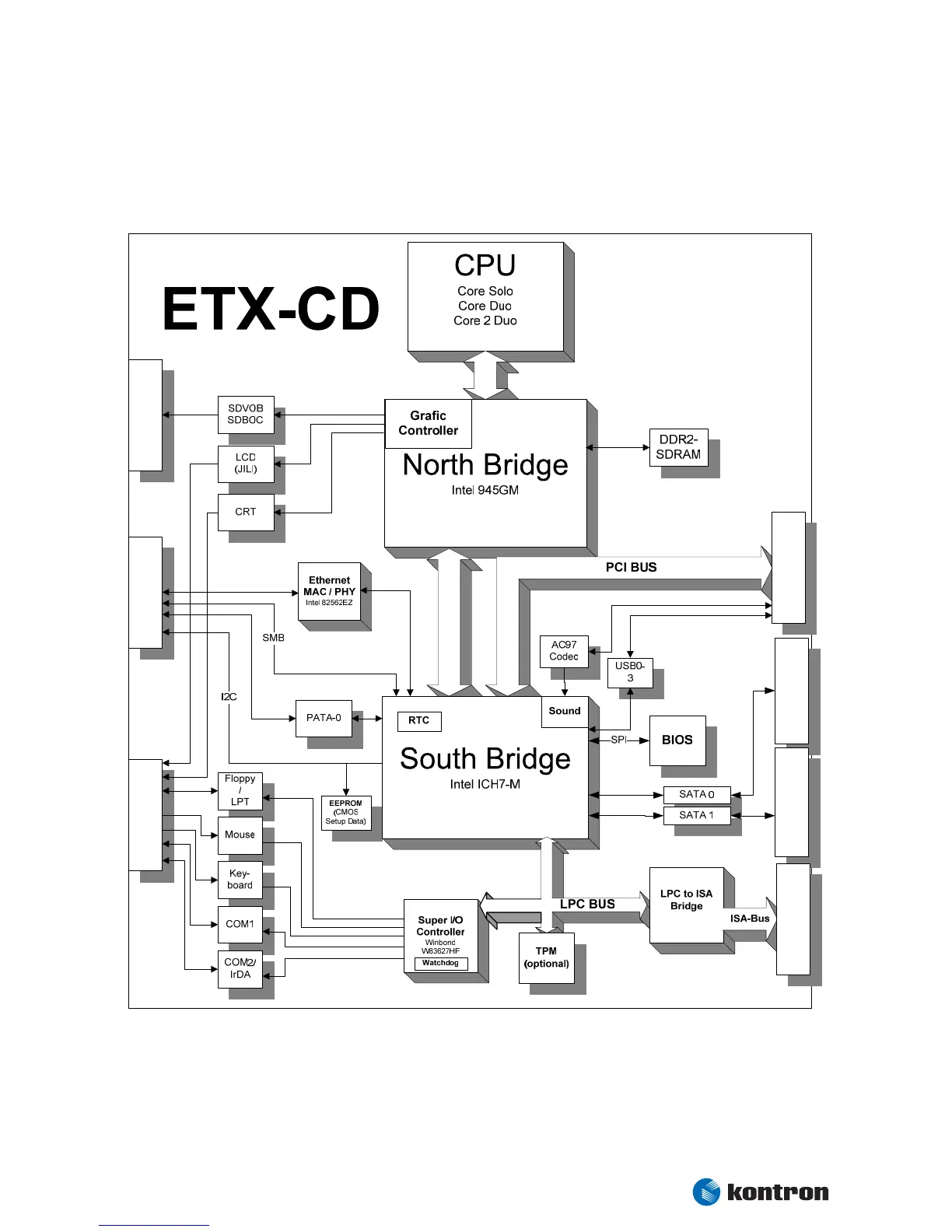

3.1.1 Block diagram
Connector X4Connector X3
Host Bus
Connector X1
Hub Interface
Feature
Connector J11
Connec-tor J8Connec-tor J9
Connector X2
