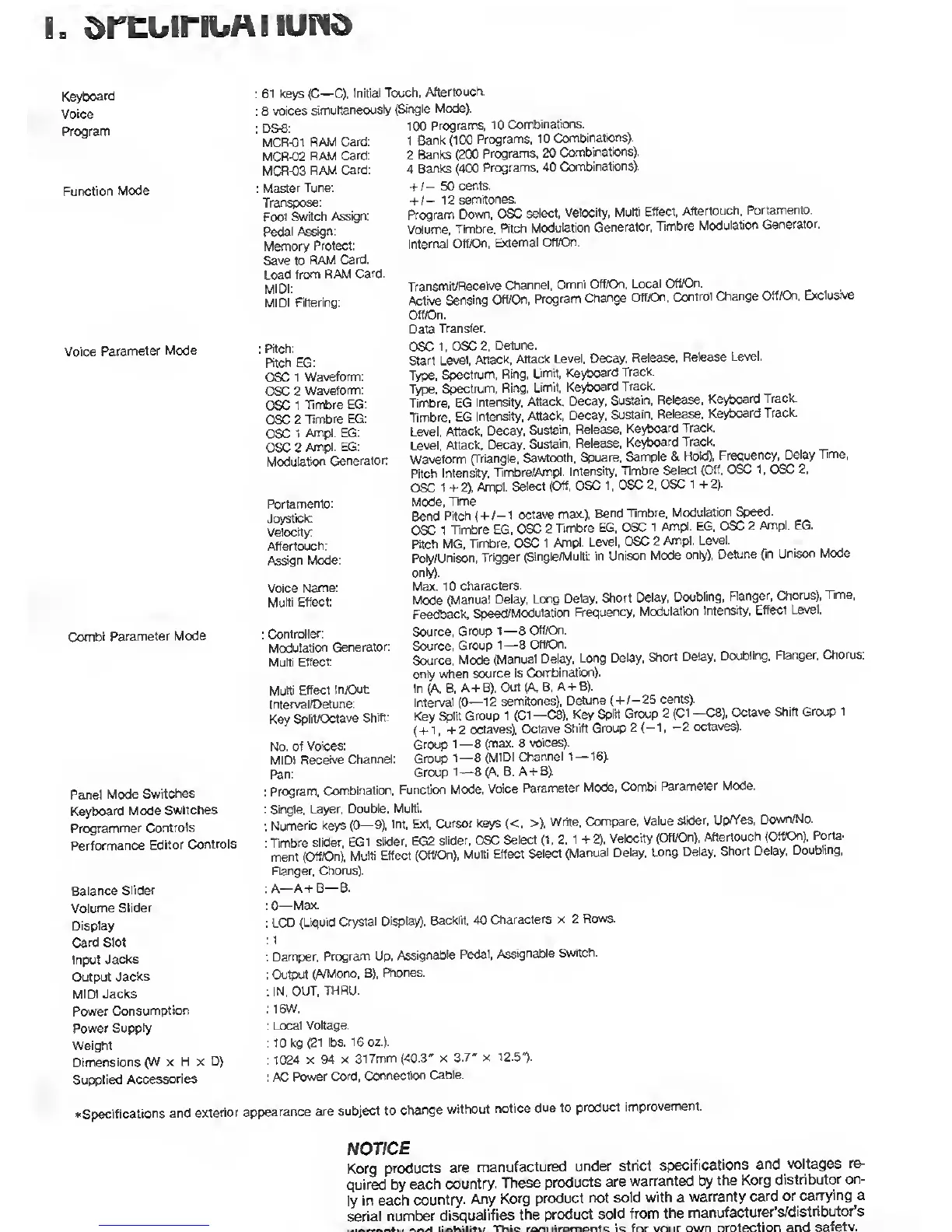

Korg DS-8 Service Manual

i. drcuribAMUND
Keyboard
Voice
Program
Function Mode
Voice Parameter Mode
Combi Parameter Mode
Panel Mode Switches
Keyboard Mode Switches
Programmer Controls
Performance Editor Controls
Balance Slider
Volume Slider
Display
Card Slot
Input Jacks
Output Jacks
MIDI Jacks
Power Consumption
Power Supply
Weight
Dimensions (W x H x D)
Supplied Accessories
61 keys (C—C), Initial Touch, Aftertouch.
8 voices simultaneously (Single Mode).
DS8:
MCR-01 RAM Card
MCR-02 RAM Card
MCR-03 RAM Card
100 Programs, 10 Combinations.
1 Bank (100 Programs, 10 Combinations).
2 Banks (200 Programs, 20 Combinations).
4 Banks (400 Programs, 40 Combinations).
: Master Tune:
Transpose:
Foot Switch Assign:
Pedal Assign:
Memory Protect:
Save to RAM Card.
Load from RAM Card.
MIDI:
MIDI Filtering:
+ /- 50 cents.
+ /- 12 semitones.
Program Down, OSC select, Velocity, Multi Effect, Aftertouch, Portamento.
Volume, Timbre, Pitch Modulation Generator, Timbre Modulation Generator.
Internal Off/On, External Off/On.
Transmit/Receive Channel, Omni Off/On, Local Off/On.
Active Sensing Off/On, Program Change Off/On, Control Change Off/On, Exclusive
Off/On.
Data Transfer.
: Pitch:
Pitch EG:
OSC 1 Waveform:
OSC 2 Waveform:
OSC 1 Timbre EG:
OSC 2 Timbre EG:
OSC 1 Ampl. EG:
OSC 2 Ampl. EG:
Modulation Generator:
Portamento:
Joystick:
Velocity:
Aftertouch:
Assign Mode:
Voice Name:
Multi Effect:
OSC 1. OSC 2, Detune.
Start Level, Attack, Attack Level, Decay, Release, Release Level.
Type, Spectrum, Ring. Limit, Keyboard Track.
Type, Spectrum, Ring, Limit, Keyboard Track.
Timbre, EG Intensity, Attack, Decay, Sustain, Release, Keyboard Track.
Timbre, EG Intensity, Attack, Decay, Sustain, Release. Keyboard Track.
Level, Attack, Decay, Sustain, Release, Keyboard Track.
Level, Attack, Decay, Sustain, Release, Keyboard Track.
Waveform (Triangle, Sawtooth, Square, Sample & Hold), Frequency, Delay Time,
Pitch Intensity, Timbre/Ampl. Intensity, Timbre Select (Off, OSC 1, OSC 2,
OSC 1 + 2), Ampl. Select (Off, OSC 1, OX 2. OX 1 + 2).
Mode, Time
Bend Pitch ( + /-1 octave max.), Bend Timbre, Modulation Speed.
OX 1 Timbre EG, OX 2 Timbre EG. OX 1 Ampl. EG, OX 2 Ampl. EG.
Pitch MG, Timbre, OX 1 Ampl. Level, OX 2 Ampl. Level.
Poly/Unison, Trigger (Single/Multi: in Unison Mode only). Detune (in Unison Mode
only).
Max. 10 characters.
Mode (Manual Delay, Long Delay. Short Delay, Doubling, Flanger, Chorus), Time,
Feedback. Speed/Modulation Frequency, Modulation Intensity, Effect Level.
: Controller:
Modulation Generator:
Multi Effect:
Multi Effect In/Out:
Interval/Detune:
Key Split/Octave Shift:
No. of Voices:
MIDI Receive Channel:
Pan:
Source, Group 1 —8 Off/On.
Source, Group 1 —8 Off/On.
Source, Mode (Manual Delay, Long Delay, Short Delay, Doubling, Flanger, Chorus;
only when source is Combination).
In (A, B, A+ B), Out (A, B, A+B).
Interval (0—12 semitones). Detune (+/-25 cents).
Key Split Group 1 (Cl —C8), Key Split Group 2 (Cl —C8), Octave Shift Group 1
(+1, +2 octaves). Octave Shift Group 2 (—1, —2 octaves).
Group 1 —8 (max. 8 voices).
Group 1—8 (MIDI Channel 1—16).
Group 1—8 (A, B. A + B).
Program, Combination, Function Mode, Voice Parameter Mode, Combi Parameter Mode.
Single, Layer, Double, Multi.
Numeric keys (0—9). Int, Ext, Cursor keys «, >), Write. Compare, Value slider, Up/Yes, Down/No.
Timbre slider, EG1 slider, EG2 slider, OX Select (1, 2, 1 +2), Velocity (Off/On), Aftertouch (Off/On), Porta-
ment (Off/On), Multi Effect (Off/On), Multi Effect Select (Manual Delay, Long Delay. Short Delay, Doubling,
Flanger, Chorus).
A—A+B—B.
0—Max.
LCD (Liquid Crystal Display). Backlit. 40 Characters x 2 Rows.
1
Damper. Program Up, Assignable Pedal, Assignable Switch.
Output (A/Mono, B), Phones.
IN, OUT, THRU.
16W.
Local Voltage.
10 kg (21 lbs. 16 oz.).
1024 x 94 x 317mm (40.3' x 3.7' x 12.5").
AC Power Cord, Connection Cable.
• Specifications and exterior appearance are subject to change without notice due to product improvement.
NOTICE
Korg products are manufactured under strict specifications and voltages re¬
quired by each country. These products are warranted by the Korg distributor on¬
ly in each country. Any Korg product not sold with a warranty card or carrying^
serial number disqualifies the product sold from the manufacturer’s/distributor’s
...orror+w anH liahilitv This rponirpmnnts is for vour own Drotection and safetv.
