Korg DS-8 Service Manual

miui nvimiivitmHiiuN

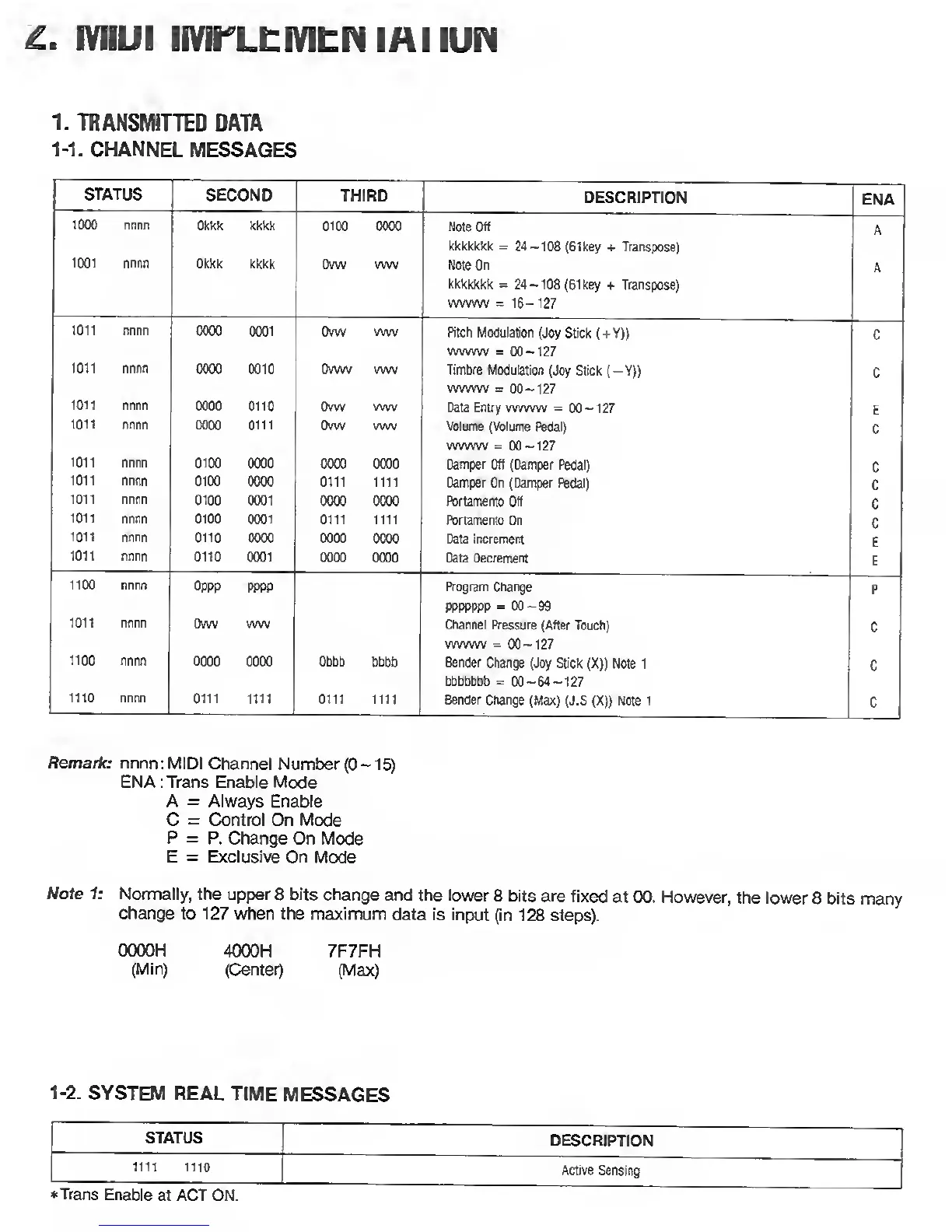

1. TRANSMITTED DATA
1-1. CHANNEL MESSAGES
STATUS
SECOND
THIRD
DESCRIPTION
ENA
1000 nnnn
Okkk kkkk
0100 0000 Note Off
kkkkkkk = 24-108 (61 key + Transpose)
A
1001
nnnn
Okkk kkkk
Ovw vwv
Note On
kkkkkkk = 24-108 (61 key + Transpose)
vvvvvw = 16-127
A
1011 nnnn
0000 0001 Owv vwv
Pitch Modulation (Joy Stick (+Y))
vvvvvw = 00-127
C
1011 nnnn
0000 0010 Oww ww
Timbre Modulation (Joy Stick (—Y))
vvvvvw = 00 — 127
C
1011 nnnn
0000 0110 Ovw vwv
Data Entry vvvvvw = 00-127
E
1011 nnnn
0000
0111
Owv
vwv
Volume (Volume Pedal)
vvvvvw = 00-127
C
1011 nnnn
0100 0000 0000 0000
Damper Off (Damper Pedal)
C
1011 nnnn
0100 0000
0111 1111
Damper On (Damper Pedal)
m
1011 nnnn
0100 0001
0000 0000
Portamento Off
ww
1011 nnnn
0100
0001 0111 1111
Portamento On
M
1011 nnnn
0110 0000
0000 0000
Data increment
E
1011 nnnn
0110 0001
0000
0000 Data Decrement
E
1100
nnnn
Oppp
pppp
Program Change
ppppppp = 00-99
P
1011 nnnn
Ovw vwv
Channel Pressure (After Touch)
vvvvvw = 00-127
C
1100 nnnn 0000
0000 Obbb bbbb
Bender Change (Joy Stick (X)) Note 1
bbbbbbb = 00 - 64-127
C
1110 nnnn
0111 1111 0111
1111
Bender Change (Max) (J.S (X)) Note 1
C
Remark: nnnn: MIDI Channel Number (0~ 15)
ENA: Trans Enable Mode
A = Always Enable
C = Control On Mode
P = P. Change On Mode
E = Exclusive On Mode
Note 1: Normally, the upper 8 bits change and the lower 8 bits are fixed at 00. However, the lower 8 bits many
change to 127 when the maximum data is input (in 128 steps).
0000H 4000H 7F7FH
(Min) (Center) (Max)
1-2. SYSTEM REAL TIME MESSAGES
STATUS
DESCRIPTION
1111 1110
Active Sensing
♦ Trans Enable at ACT ON.
