DJ mixer connections

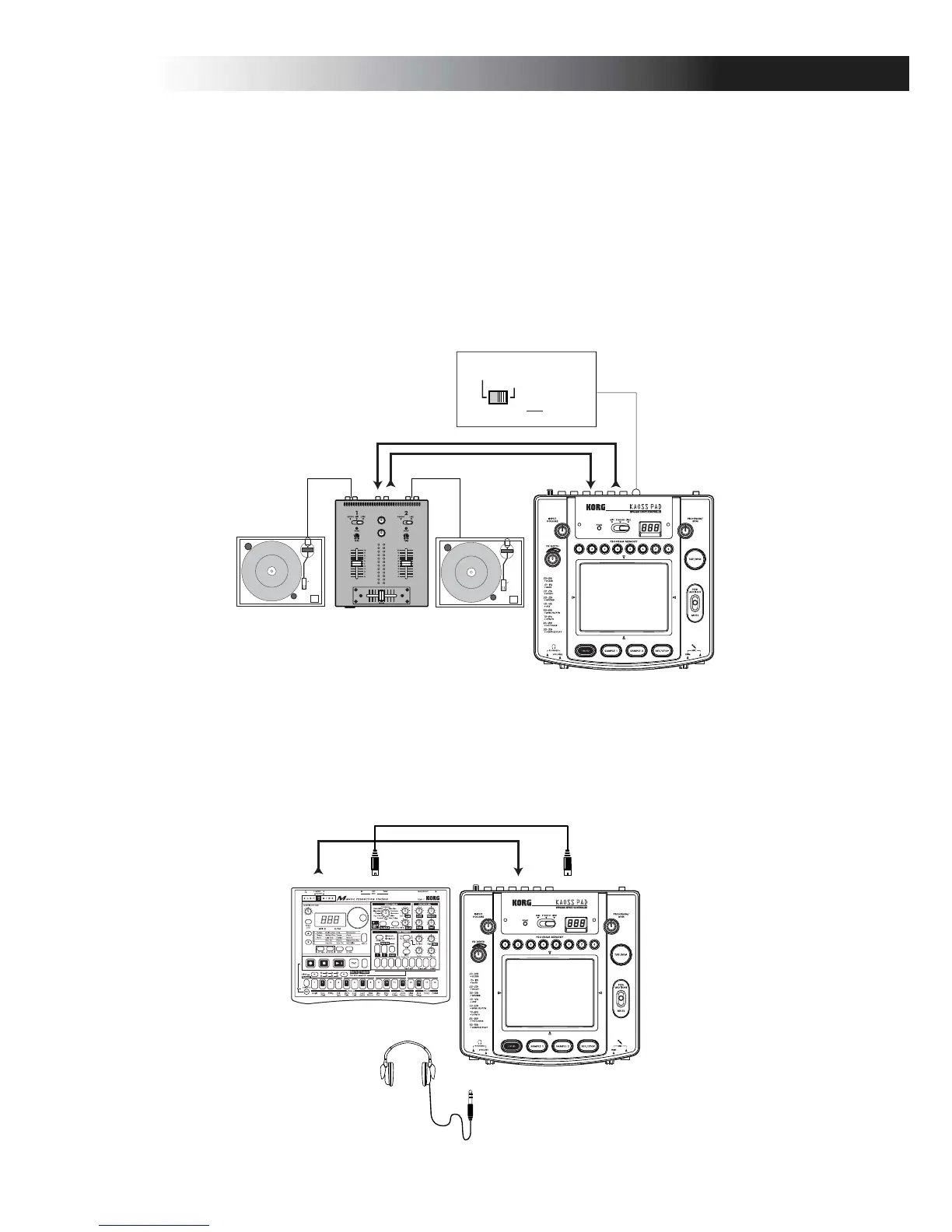

To use the KP2 as an external effect processor, connect the effect send jack of your DJ mixer etc.
to the Line In jacks of the KP2, and connect the Line Out jacks of the KP2 to the effect return
jacks of your mixer.
When using a connection via the effect send/return jacks
Set theKP2’s Connection switch to FX LOOP. With this setting, the output signal from the KP2’s
Line Out jacks will consist only of the sound processed by the KP2, and will not include the
original sound that is being input to the KP2.
If you want to use the KP2’s FX/Depth knob to adjust the effect depth during use, set this
switch to the DIRECT position.
LINE IN
LINE OUT
CONNECTION LINE OUT
DIRECT
FX LOOP
TURNTABLE
TURNTABLEDJ MIXER
SEND
RETURN
MIDI connections
Use these connections when you want to connect MIDI devices to the KP2 and use it along with
sequence data.
LINE IN MIDI INMIDI OUTOUTPUT
KORG EM-1
