Korg Pa5X User Manual

16| Overview of the instrument

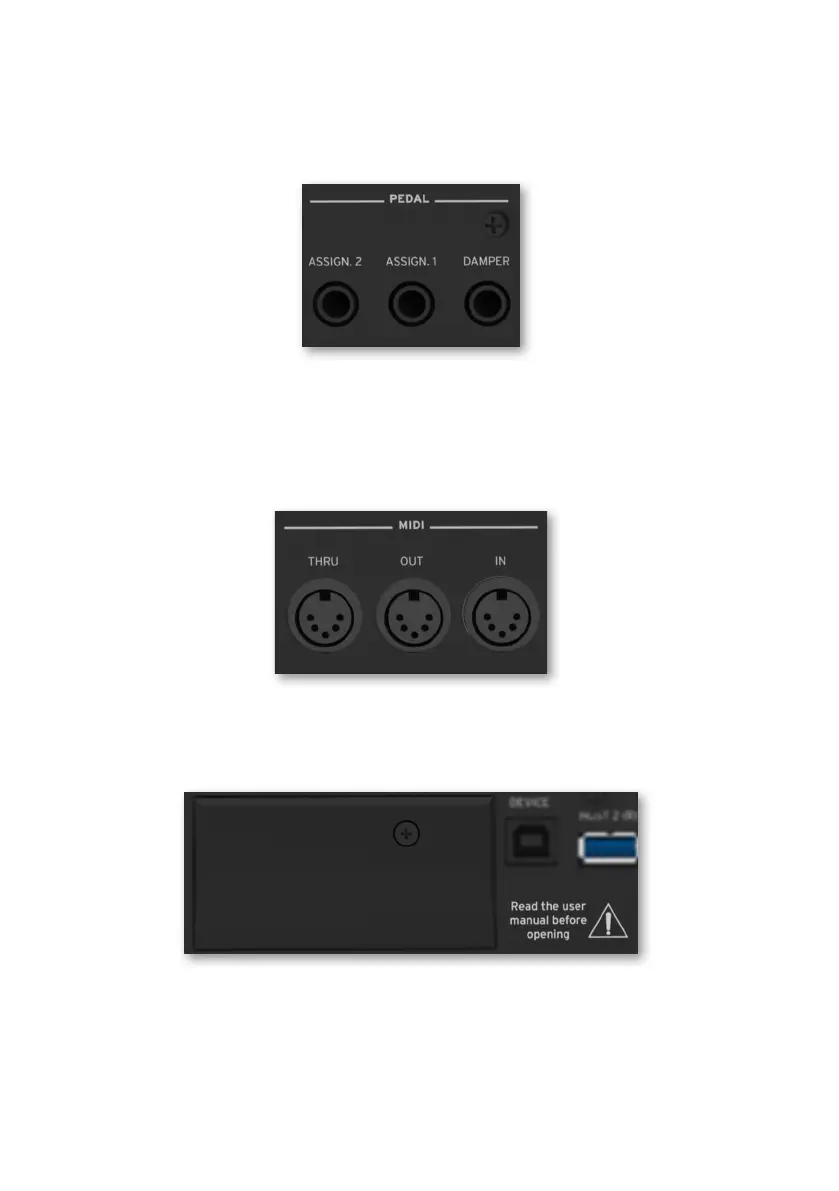

Pedal connectors
Use the DAMPER connector to connect a damper pedal, and the ASSIGNABLE
connector to connect either a continuous pedal or footswitch.
MIDI ports
Use these ports to connect Pa5X to external controllers (master keyboard, MIDI
guitar, wind controller, MIDI accordion, MIDI pedalboard…), to a series of expand-
ers, or to a computer with a MIDI interface.
Battery and microSD slot
This opening contains the clock battery and the microSD card slot.

Korg Pa5X Specifications

General

Type	Arranger Keyboard
Keys	61 or 76
Aftertouch	Yes
Polyphony	160 voices
Key Action	Semi-weighted
Sound Engine	EDS-XP
Drum Kits	More than 130 Drum Kits
User Memory	4GB PCM
Styles	Over 600
Display	8-inch color TouchView display
Sequencer	16-track MIDI sequencer
Audio Inputs	2 x Mic/Line (XLR/TRS combo), Guitar (TS)
Headphones	1 x 1/4"
MIDI	In/Out/Thru
USB	Type A and B
Storage	MicroSD slot
Speakers	Optional
Weight	Varies by model
