8
Introduction
A PAGE [√]/[®] keys
In Edit mode or when the metronome is on, these
keys are used to select the parameter that you wish
to modify.
B ENTER key
In Edit mode, this key is used to switch the effect
on/off, or to write a program.

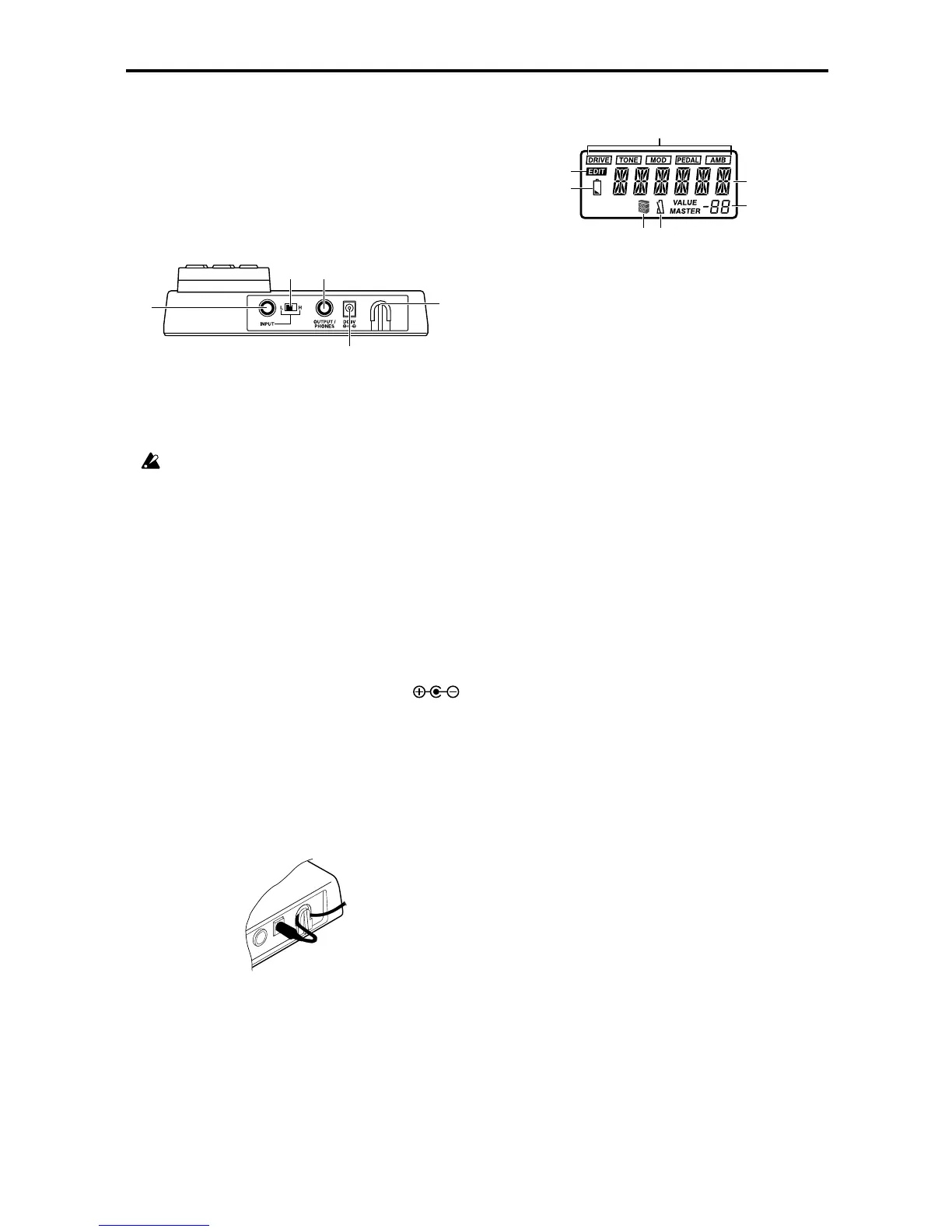

● Rear Panel
1
23
4
5
1 INPUT jack
If you are using batteries, this jack acts as a power
switch. When a cable is connected, the power will
be turned on.
Before turning the power on or off, be sure to
turn down the volume of any equipment that is
connected.
2 Input level switch
Set this switch according to the output of your in-
strument.
H: Suitable for a pickup with a high output level,
such as a humbucking pickup
L: Suitable for a pickup with a low output level,
such as a single coil pickup
3 OUTPUT/PHONES jack
4 DC9V
The separately sold AC adapter (DC9V
)
can be connected here. When this is connected,
the power will be turned on automatically.
5 Cable hook
If the separately sold AC adapter is connected,
hook the cable of the AC adapter around this hook
as shown below. When removing the cable from
the hook, do not apply excessive tension to the
cable.
● LCD display
1
2
3
45
6
7
1 Effect on/off indicators
These indicate the effects (drive, tone, modulation,
pedal, ambiance) which are turned on.
2 Edit mode indicator
3 Battery empty indicator
4 Cabinet resonator on/off indicator
5 Metronome on/off indicator
6 This indicates effect parameter values or the mas-
ter level.
7 This indicates the program name or effect type, etc.
To Next Page
