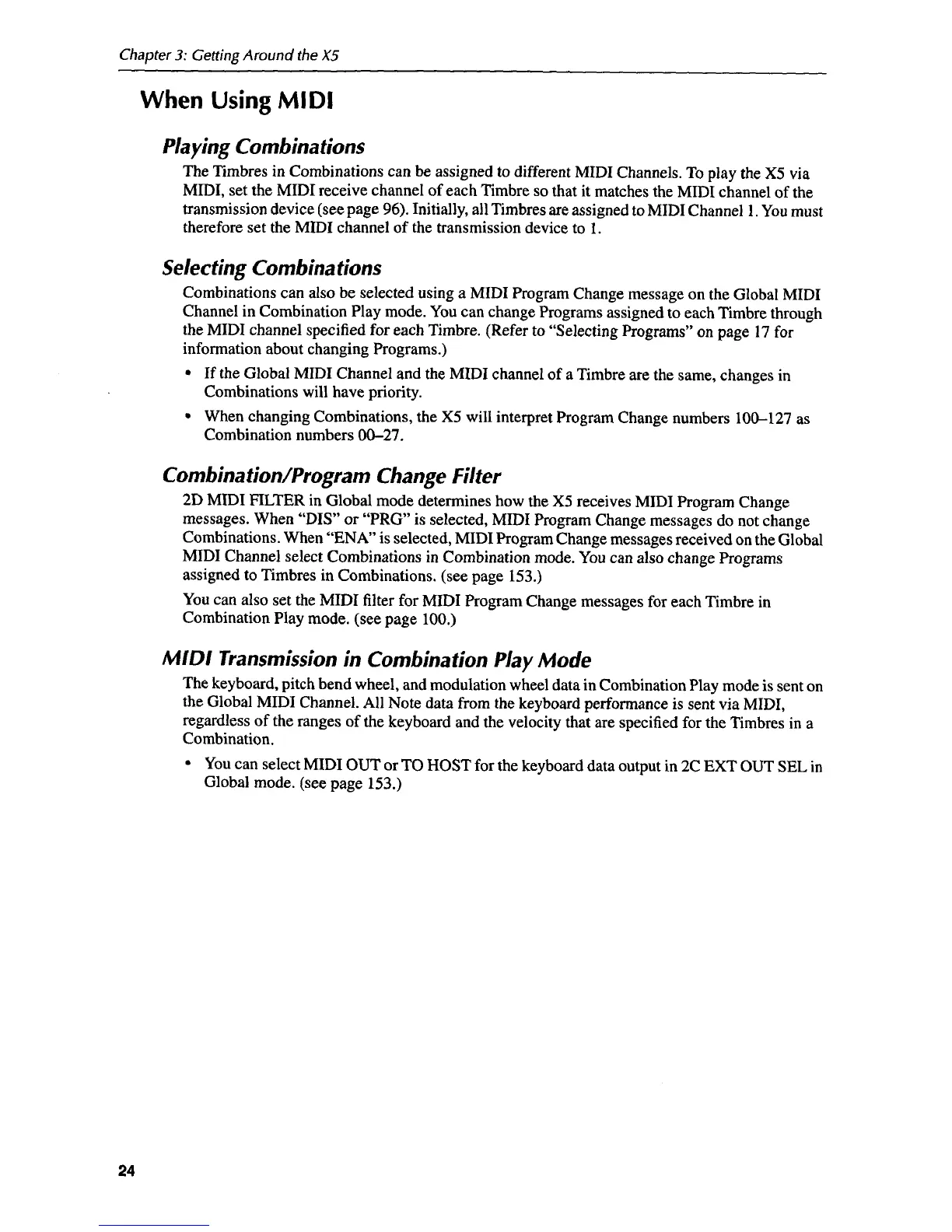

Korg X5D - When Using MIDI: Playing Combinations; When Using MIDI: Selecting Combinations; When Using MIDI: Combination;Program Change Filter; When Using MIDI: MIDI Transmission in Combination Play Mode
