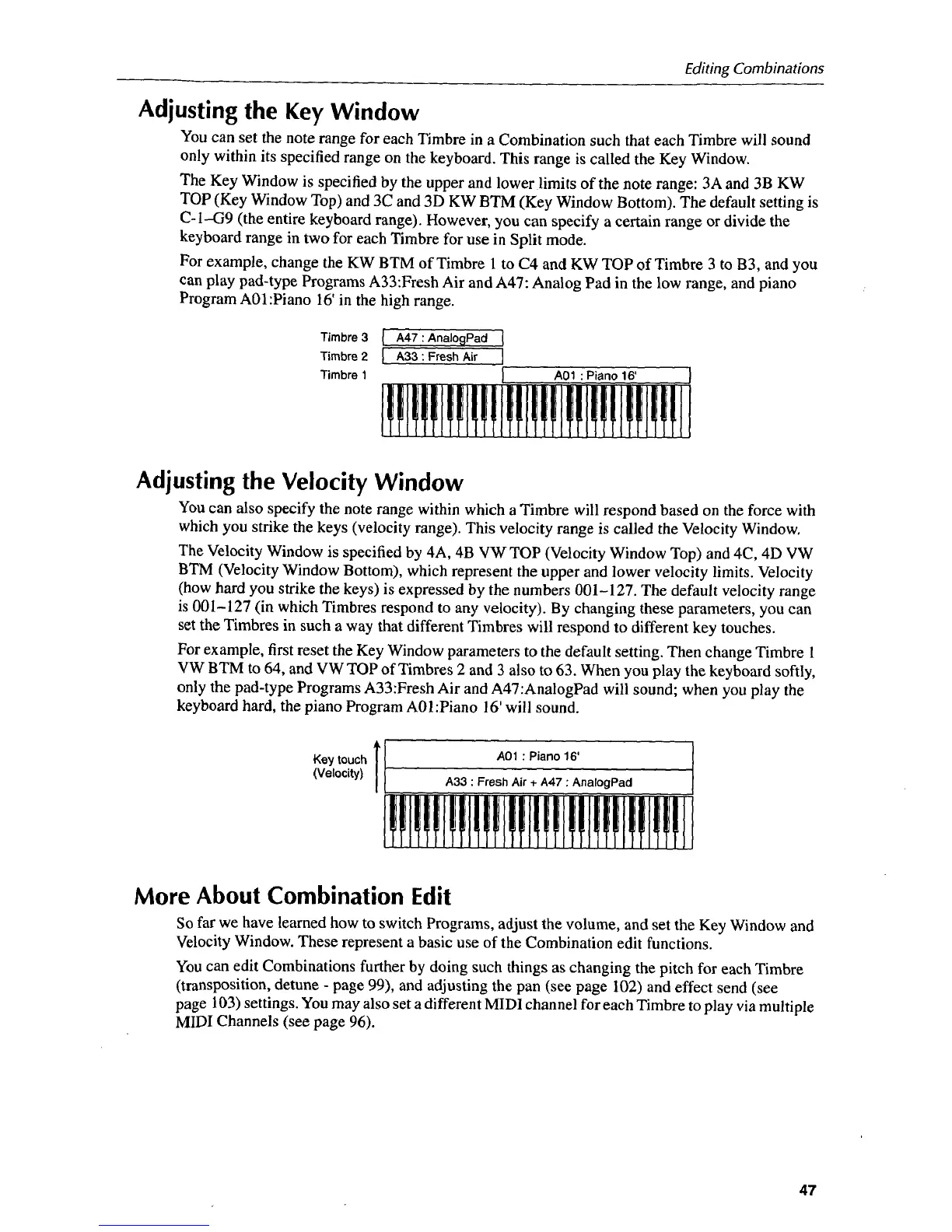

Korg X5D - Editing Combinations: Adjusting the Key Window; Editing Combinations: Adjusting the Velocity Window; Editing Combinations: more about Combination Edit
