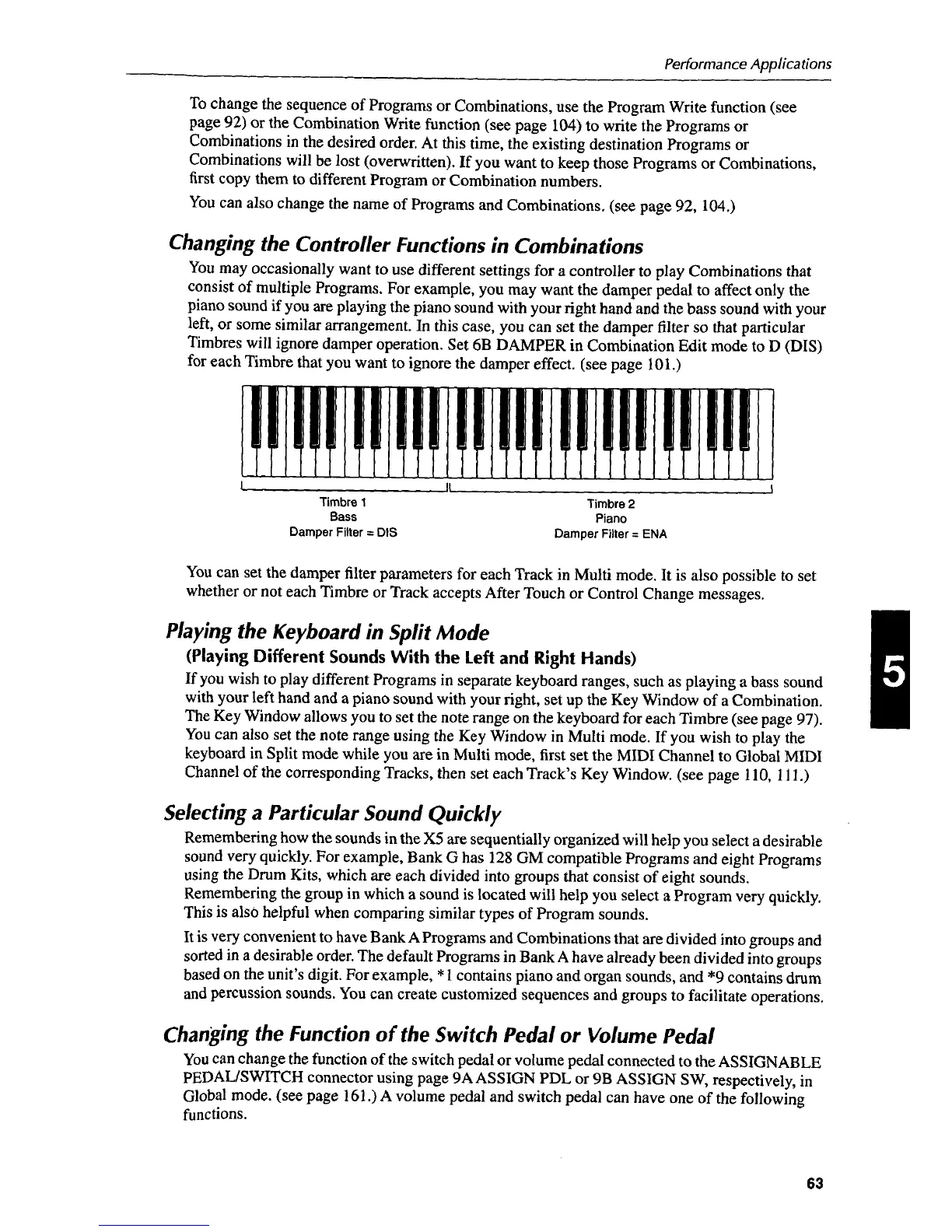

Korg X5D - Changing the Controller Functions in Combinations; Playing the Keyboard in Split Mode; Selecting a Particular Sound Quickly; Changing the Function of the Switch Pedal or Volume Pedal
