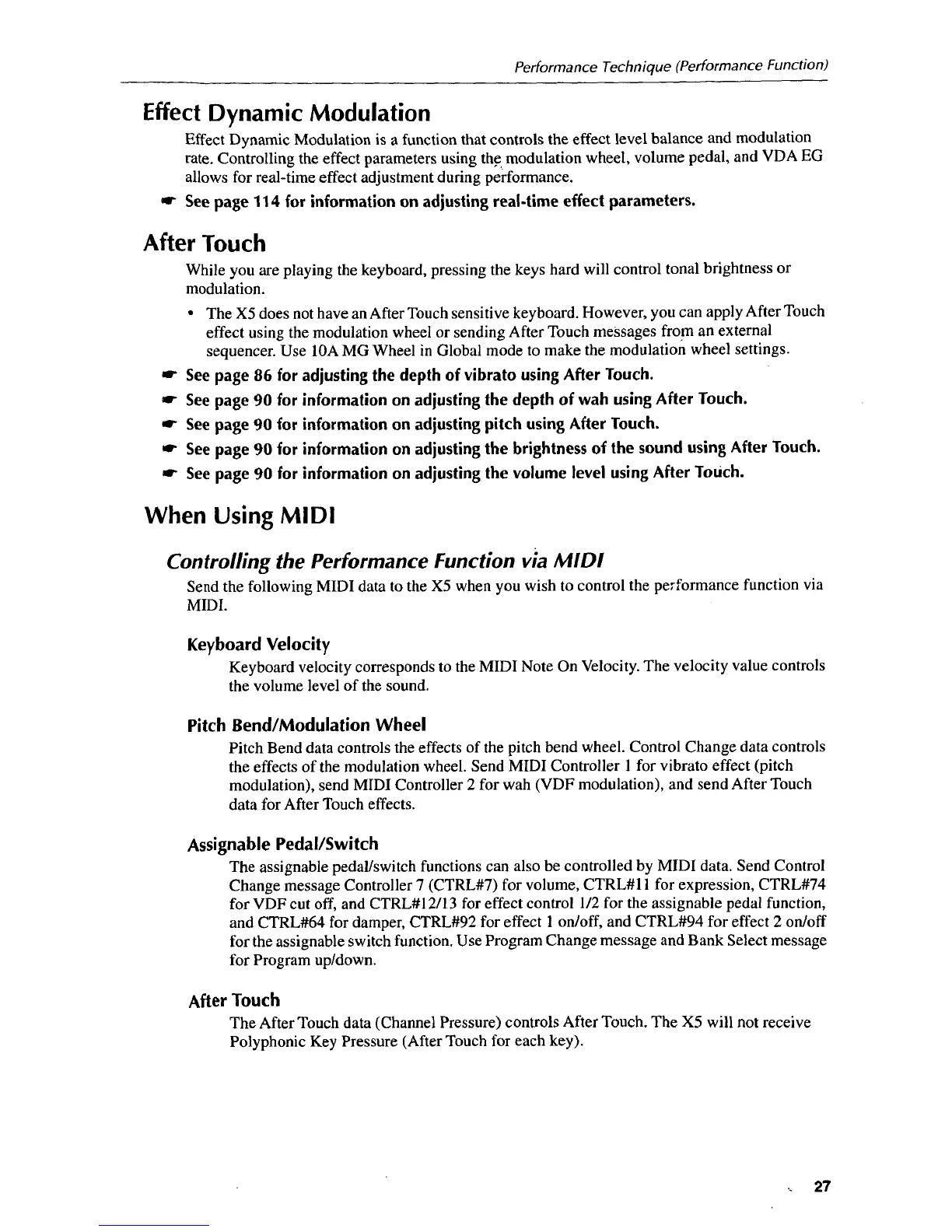

Effect Dynamic Modulation33
After Touch33
When Using MIDI: Controlling the Performance Function Via MIDI33
