4.3 Walking apparatus
Each part of engine is in high temperature after the engine stopped. Avoid
any scald, please maintain after the engine is exactly cooled down
4.4 Track check & adjustment
4.4.1 Checking
1. Lift the machine to keep the same level with ground.
2. Confirm there’s 10-15mm clearance between track and bearing wheels, please
adjust if there is any impropriety.
3. Lay down the machine.
4.4.2 Adjustment

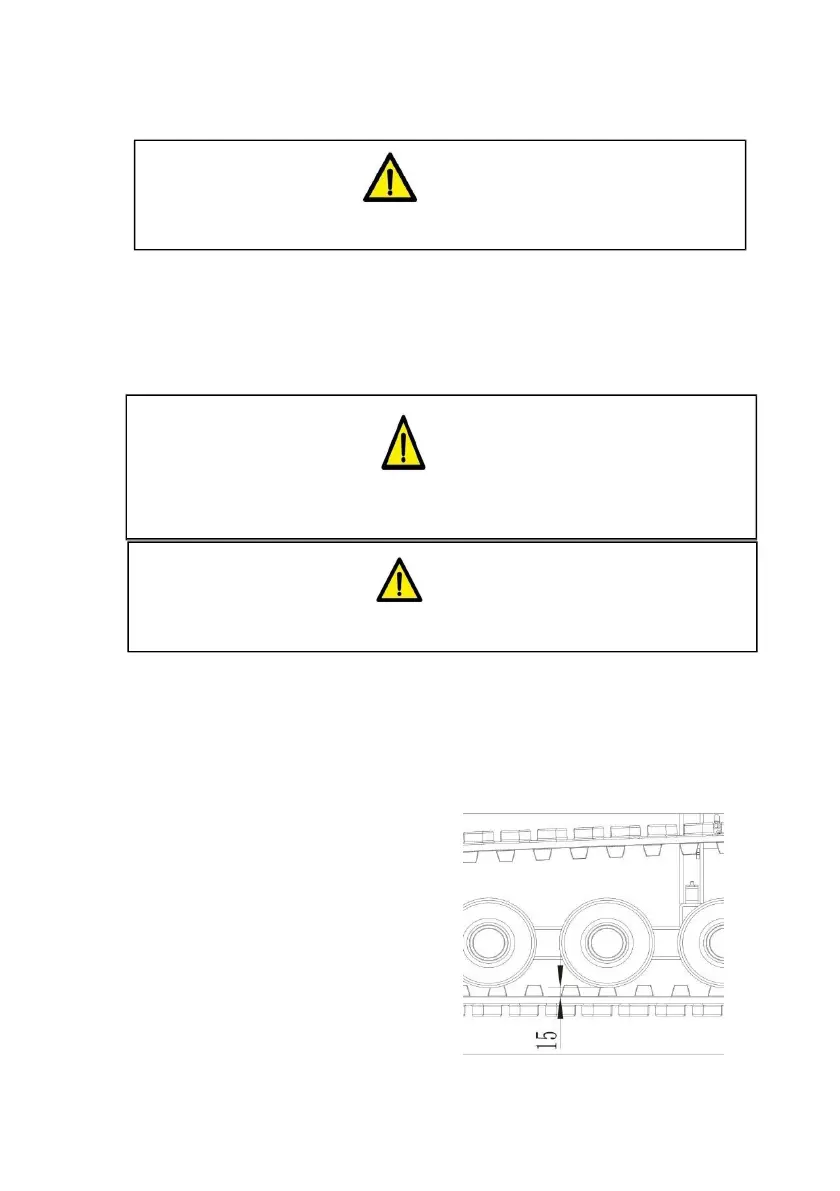

Lift the machine to the same level with
ground.
1. Loosen the nuts.
2. Adjust the bolts to confirm there’s
15mm clearance between bearing
wheels and rubber track.
3. Tighten the nuts.
4. Lay down the machine
 
WARNING
To avoid falling down, please fixed the jack while
adjusting.
 
Caution
Must use the belt in the appropriate tension range, to avoid shedding, shorten
life etc.
 
WARNING
Stop the engine once maintain or
repair
