Kramer 480 User Manual

BA 35101/02/ 03 EN – Edition 1.0 * 35101_02_03b610.fm 6-19
Specifications
6.19 Wheel loader dimensions with bucket (model 351-03)

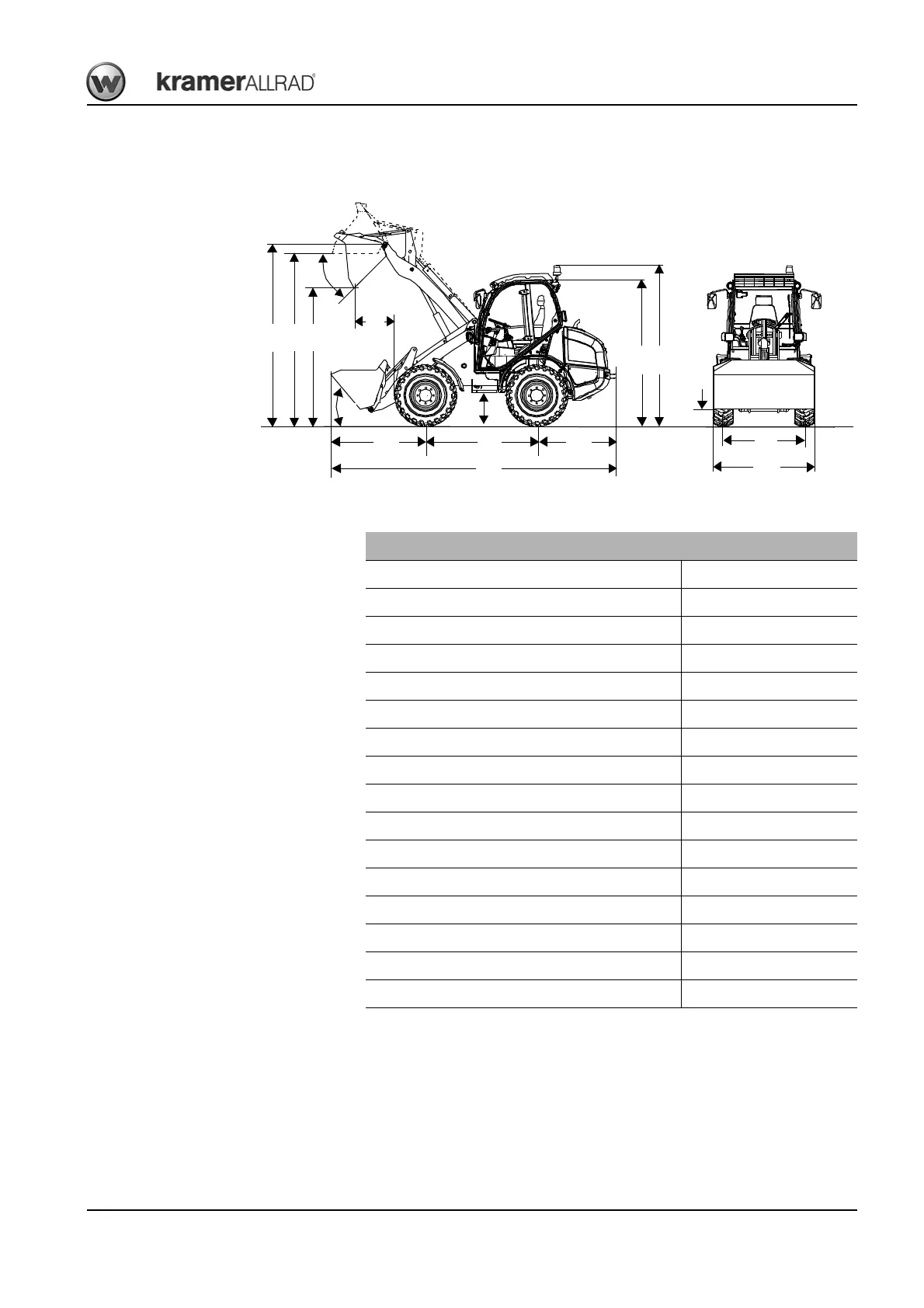

Fig. 201: Machine dimensions model 351-03
3250
650
3050 2500
1900 2020
250
1950
1400
1490
2710
5410
2480
330
45°
50°
Dimensions
Overall length
1
5410 mm
Overall height
2, 3
2480 mm
Overall height with rotating beacon
2, 4
2710 mm
Overall width without bucket
2, 5
1780 mm
Overall width with bucket
1
1950 mm
Ground clearance in transport position of loader unit 250 mm
Ground clearance
2
under gearbox 330 mm
Pin height 3250 mm
Load-over height 3050 mm
Dump height 2500 mm
Dump reach 650 mm
Dump-in angle 50°
Dump-out angle 45°
Front/rear track (distance over hubs) 1400 mm
Wheelbase (front/rear axles) 2020 mm
Turning radius
2, 6
2900 mm
1. With standard bucket order no. 1000245973
2. With tyres 12.5-20
3. 2590 mm with protective FOPS screen (option)
4. 2830 mm with protective FOPS screen (option)
5. With outside mirrors folded in
6. Measured at outer edge of wheel
