Operation
3.8 Engine cover lock
Opening/closing the engine cover
Caution, turning parts!
☞ Stop the diesel engine before opening the engine cover
☞ Open the engine cover:
• Stop the diesel engine and remove the ignition key
• Press lock A
• Pull the engine cover upwards
☞ Close the engine cover:
• Firmly press down the engine cover until lock A engages with an audible click
☞ Lock and unlock the engine cover:
• Close the engine cover with the ignition key of the preheating start switch.
3.9 Protective screens for front window and/or main lights (option)
Removing the protective screens for driving on public roads
The wheel loader can be fitted with protective screens on the front window and/or the main
headlights as a protection against falling material.
The protective screens may be used only for work operation and must be
removed when driving on public roads!
☞ See also the machine documentation and the data confirmation (Germany)
3.10 Fire extinguisher (option)
Fire extinguisher operation
The fire extinguisher is not included in the machine's standard equipment (option).
• If a fire extinguisher is retrofitted according to DIN-EN 3, then this must be carried out
by an authorised workshop
• Located on the cab column, to the right of the seat (see fig.)
• Fire extinguisher operation is described with the symbols on the fire extinguisher
The fire extinguisher must be refilled and sealed by authorised staff after it has
been used.

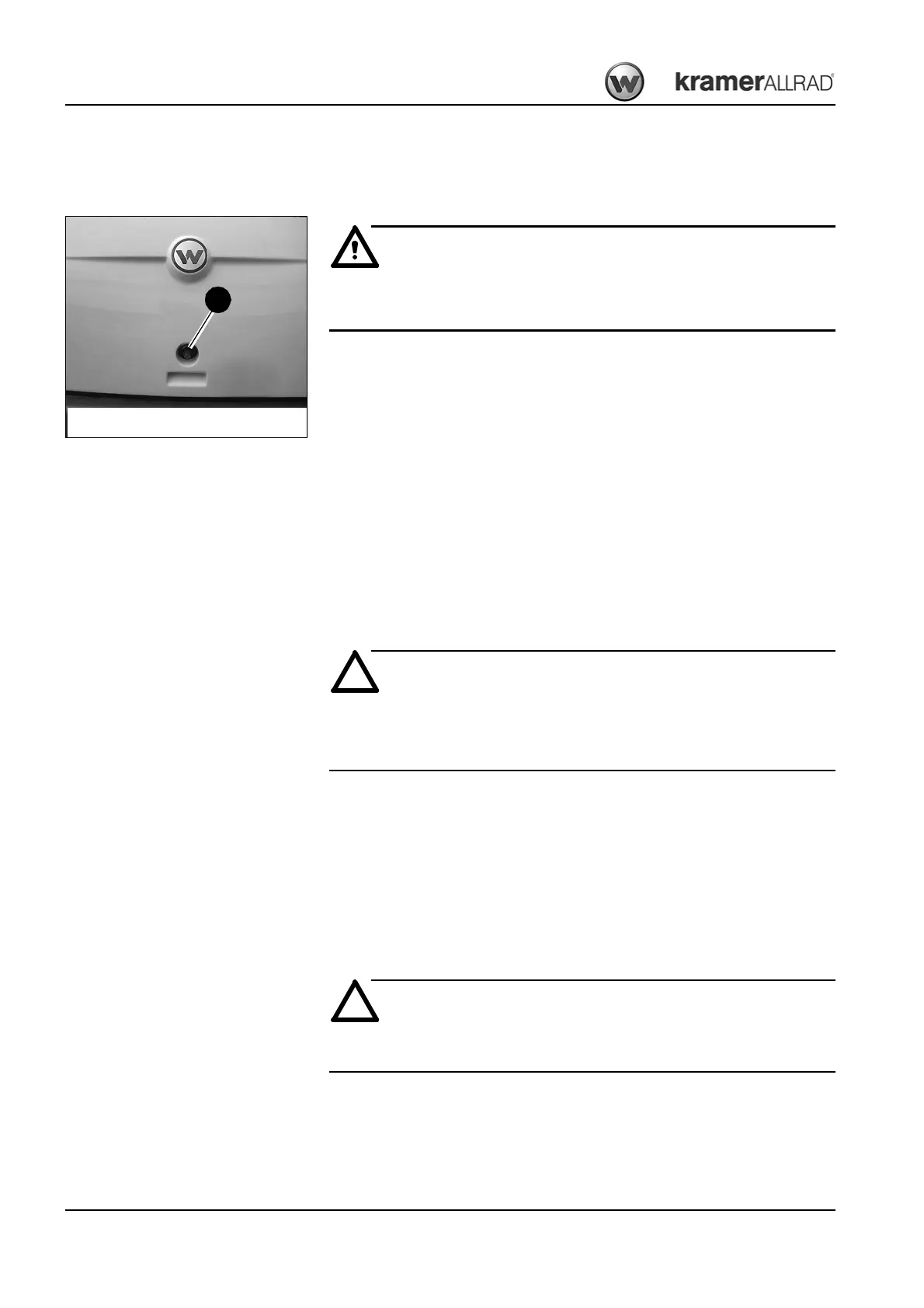

Fig. 43: Engine cover lock
A
