6410N, 6420N - Your Audio Converters
9
The following table shows an example of the relation between the input signal, the
selected gain and the THD + N.
Vinput [vrms]
Gain [dB]
THD + N [dB]
@1kHz
1
+12
-94
1
+16
-95
1
+20
-94
0.7
+24
-90
4.2 Your 6420N Analog to Digital Audio Converter

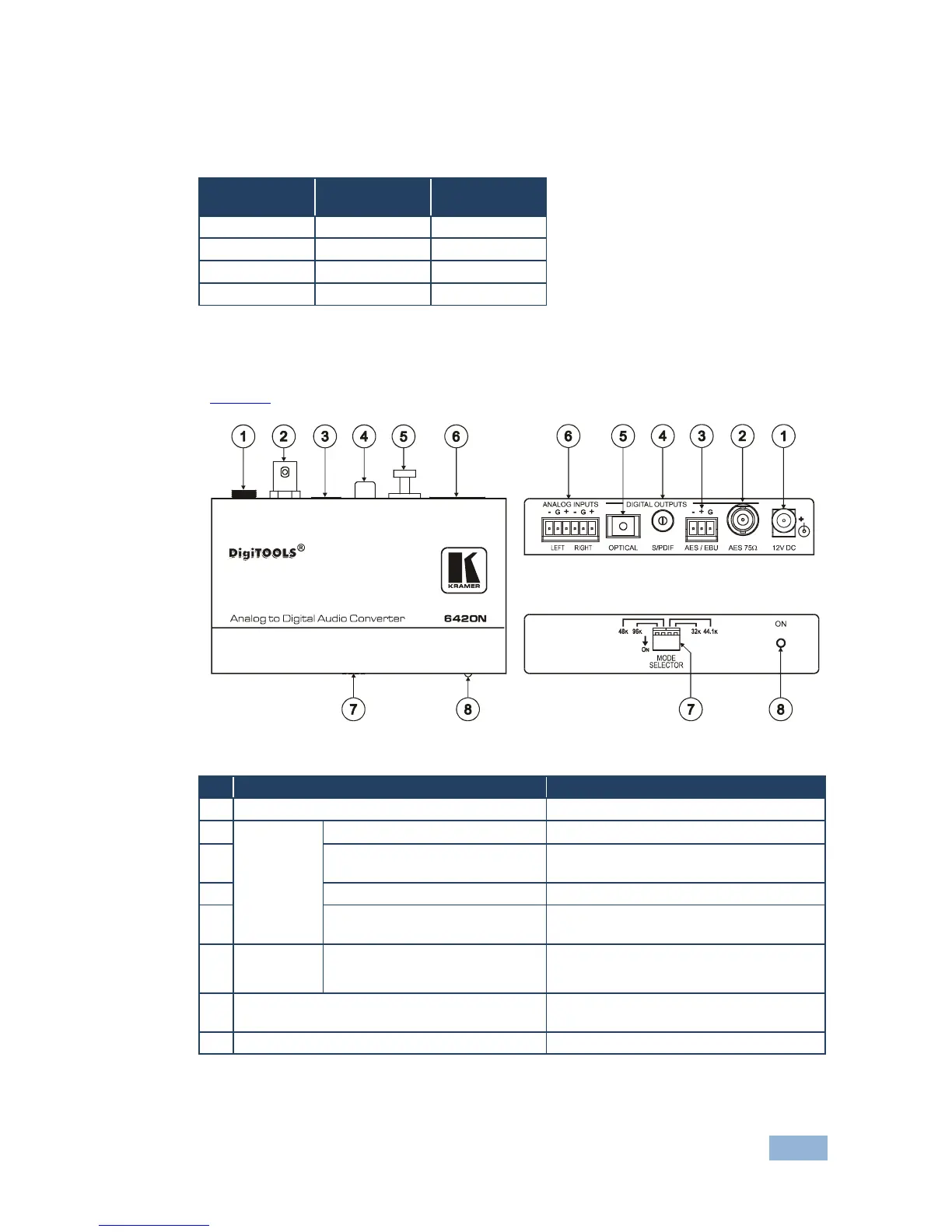

Figure 4 defines the 6420N Analog to Digital Audio Converter:
Figure 4: 6420N Analog to Digital Audio Converter
#
Feature
Function
1
12V DC
+12V DC connector for powering the unit
2
DIGITAL
OUTPUTS
AES 75 BNC connector
Connect to the digital audio acceptor
3
AES / EBU Detachable Terminal
Block Connector
Connect to the digital audio acceptor
4
S/PDIF RCA Connector
Connect to the digital audio acceptor
5
OPTICAL Toslink® Optical
Connector
Connect to the digital audio acceptor
6
ANALOG
INPUTS
LEFT and RIGHT Detachable
Terminal Block Connectors
Connect to the analog audio source
7
MODE SELECTOR Dipswitches
Set a dipswitch to ON to choose the
appropriate sample rate frequency
8
ON LED
Illuminates when receiving power
