6410N, 6420N - Your Audio Converters
4.2.1 The 6420N Underside
Figure 5 defines the underside of the 6420N:

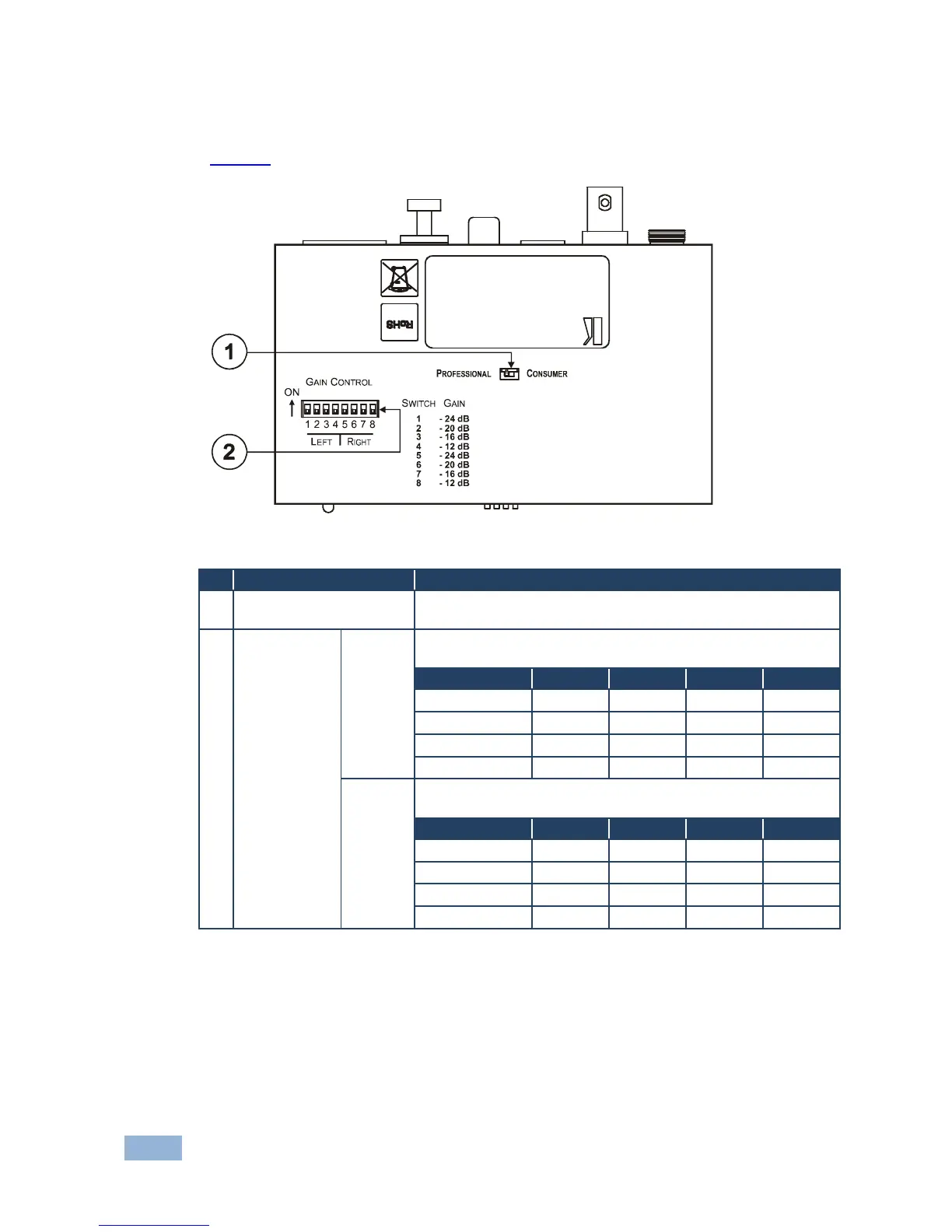

Figure 5: 6420N Analog to Digital Audio Converter Underside
#
Feature
Function
1
PROFESSIONAL /
CONSUMER Switch
Set to choose the digital audio system bit
2
GAIN
CONTROL
DIP-switches
LEFT
Set the DIP-switches as follows to determine the LEFT channel
conversion ratio (A to D) (GAIN CONTROL):
Gain Control:
DIP 1
DIP 2
DIP 3
DIP 4
-24dB
ON
OFF
OFF
OFF
-20dB
OFF
ON
OFF
OFF
-16dB
OFF
OFF
ON
OFF
-12dB
OFF
OFF
OFF
ON
RIGHT
Set the DIP-switches as follows to determine the RIGHT channel
conversion ratio (A to D) (GAIN CONTROL):
Gain Control:
DIP 5
DIP 6
DIP 7
DIP 8
-24dB
ON
OFF
OFF
OFF
-20dB
OFF
ON
OFF
OFF
-16dB
OFF
OFF
ON
OFF
-12dB
OFF
OFF
OFF
ON
