TP-580Txr/TP-580Rxr - Connecting the TP-580Txr / TP-580Rxr Transmitter / Receiver
11
11
The example in Figure 5 illustrates how to control the LCD display that is
connected to TP-580Rxr using a remote control, via theTP-580Txr. In this
example, the External IR Sensor is connected to the IR connector of the
TP-580Txr and an IR Emitter is connected between the TP-580Rxr and the LCD
display. The LCD display remote control sends a command while pointing towards
the External IR Sensor. The IR signal passes through the TP cable and the IR
Emitter to the LCD display, which responds to the command sent.

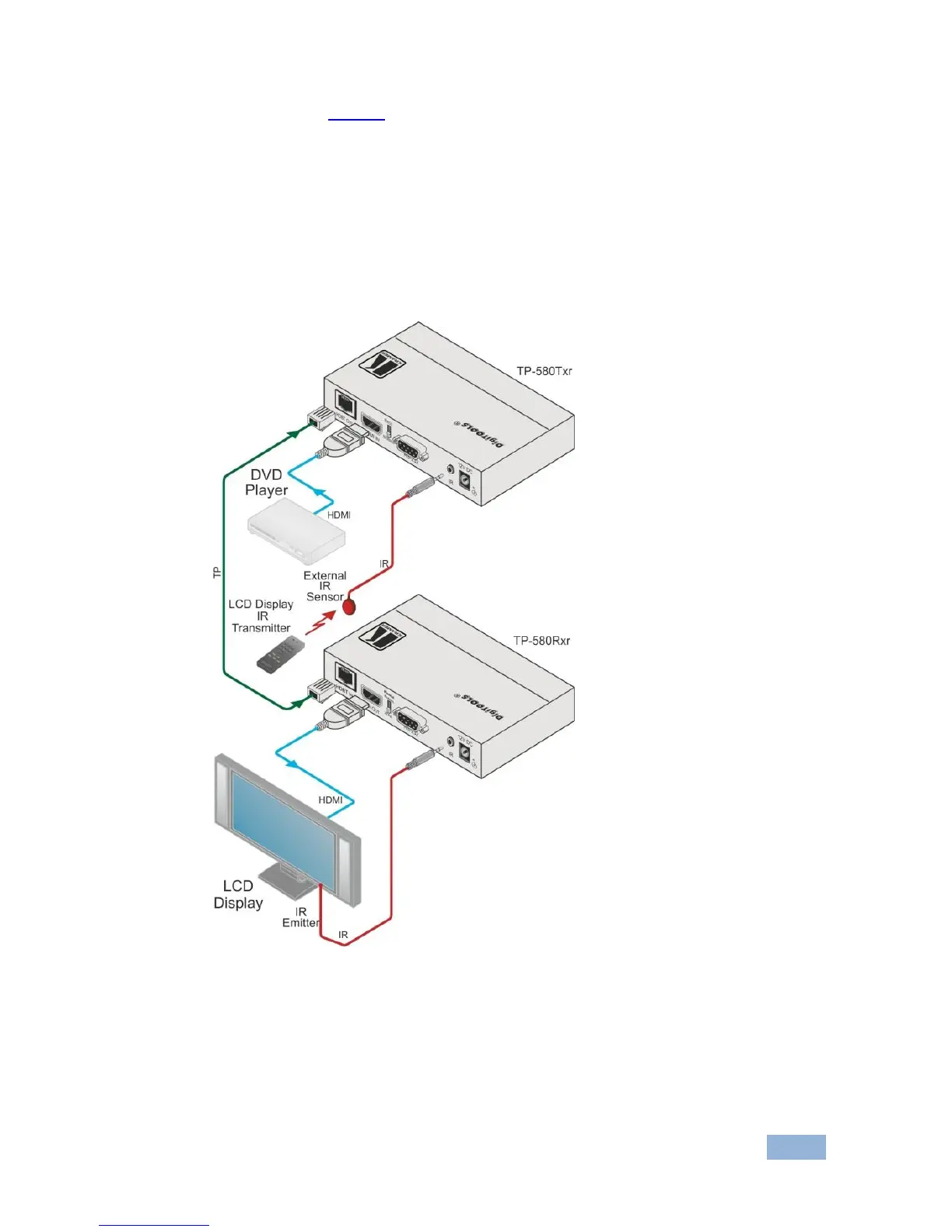

Figure 5: Controlling an LCD Display via the TP-580Txr
