TP-580Txr/TP-580Rxr - Defining the TP-580Txr HDMI Line Transmitter
4 Defining the TP-580Txr HDMI Line
Transmitter

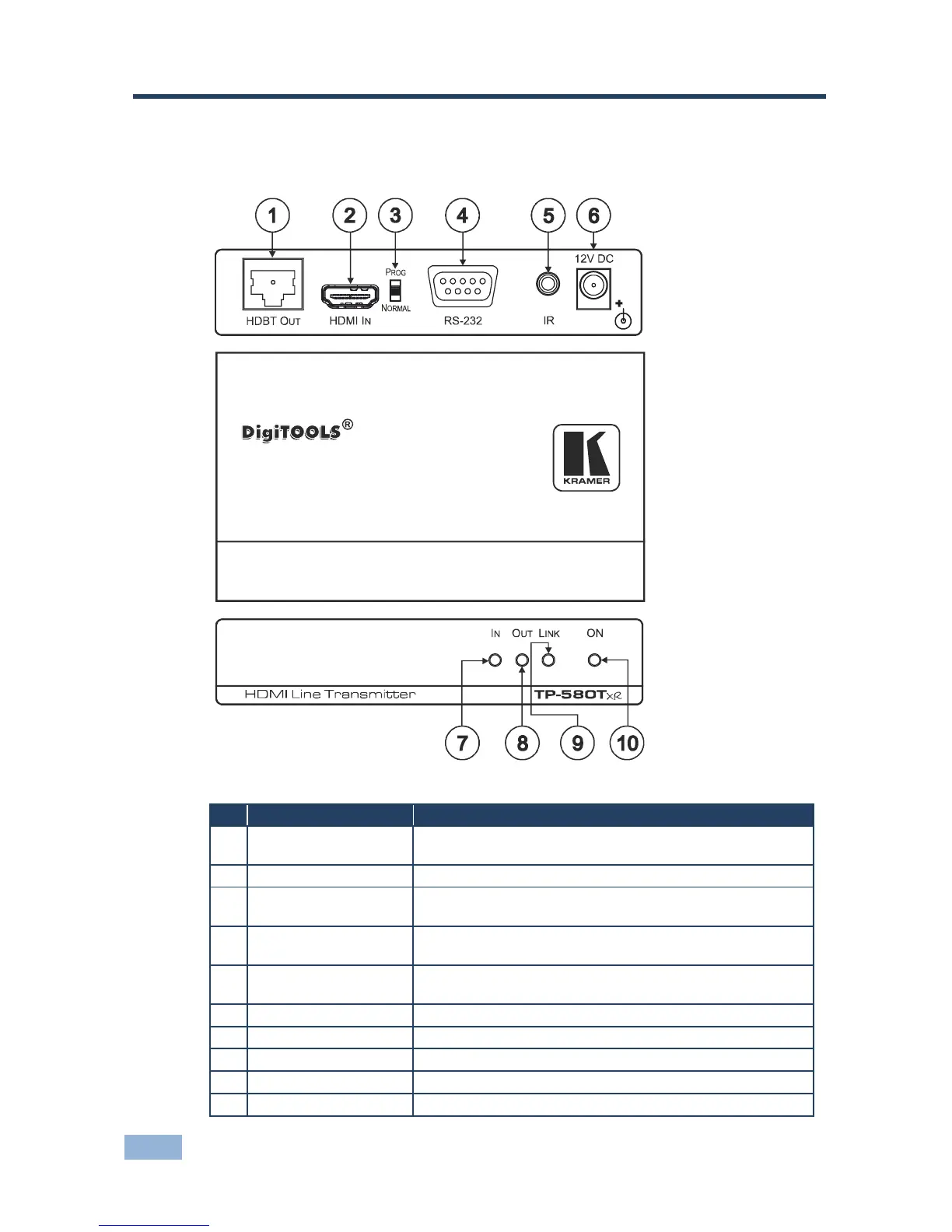

Figure 1: TP-580Txr HDMI Line Transmitter
#
Feature
Function
1
HDBT OUT RJ-45
Connector
Connects to the HDBT IN RJ-45 connector on the TP-580Rxr
2
HDMI IN Connector
Connects to the HDMI source
3
PROG/NORMAL Switch
Slide to PROG to upgrade to the latest Kramer firmware via
RS-232, or slide to NORMAL for normal operation
4
RS-232 9-pin D-sub
Connector
Connects to an RS-232 port for firmware upgrade and
control of the destination unit
5
IR 3.5mm Mini Jack
Connector
Connects to an external infrared transmitter / sensor
(receiver)
6
12V DC
+12V DC connector for powering the unit
7
IN LED
Lights green when an HDMI input device is connected
8
OUT LED
Lights green when an HDMI output device is detected
9
LINK LED
Lights green when the TP connection is active
10
ON LED
Lights when receiving power
