Kramer TP-9 User Manual

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting an Audio/Video Distribution System
10
5.1 Wiring the CAT 5 LINE IN/LINE OUT RJ-45 Connectors
Table 4
and Figure 6 define the CAT 5 PINOUT, using a straight pin-to-pin
cable with RJ-45 connectors:

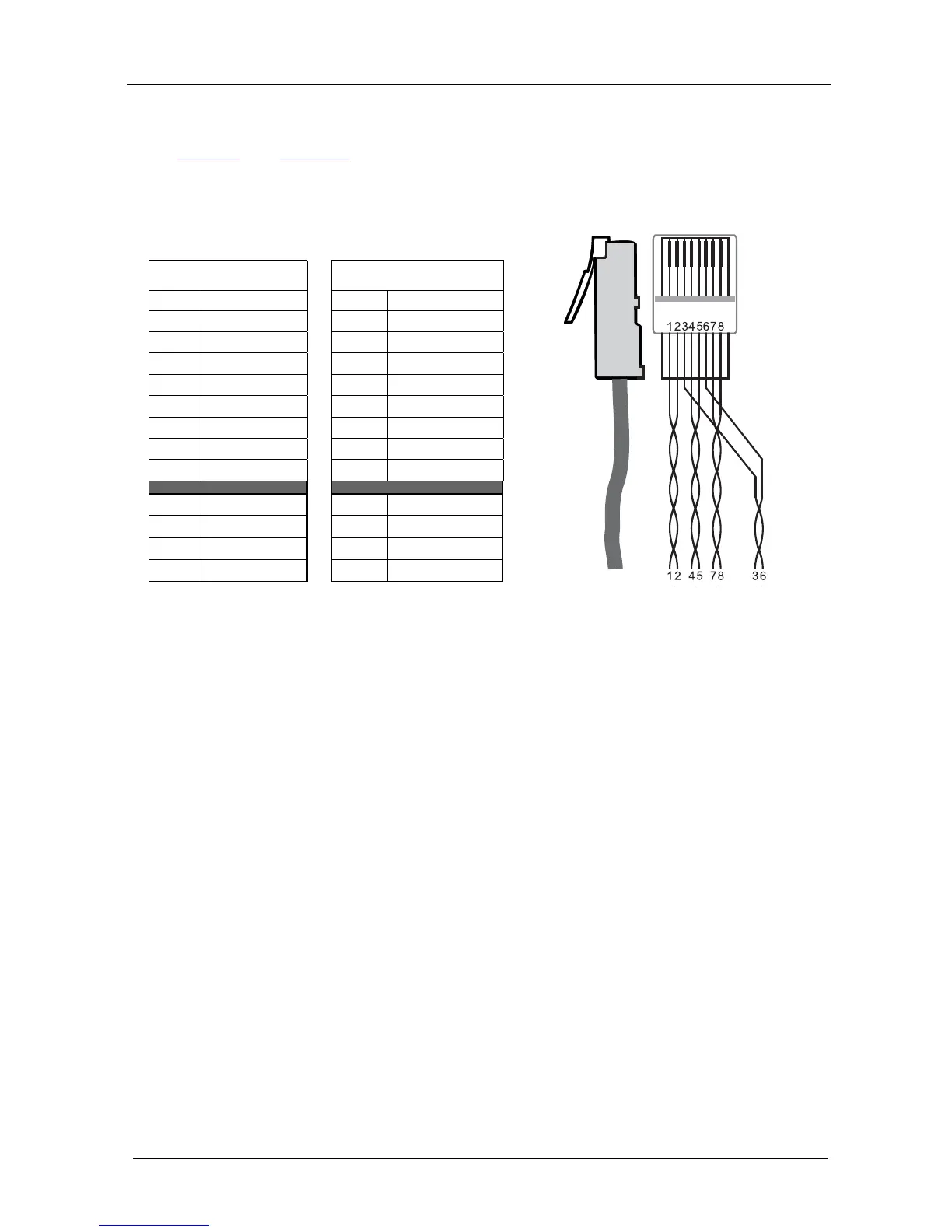

Figure 6: CAT 5 PINOUT
Table 4: CAT 5 PINOUT
EIA /TIA 568A EIA /TIA 568B
PIN Wire Color PIN Wire Color
1 Green/White 1 Orange/White
2 Green 2 Orange
3 Orange/White 3 Green/White
4 Blue 4 Blue
5 Blue/White 5 Blue/White
6 Orange 6 Green
7 Brown/White 7 Brown/White
8 Brown 8 Brown
Pair 1 4 and 5 Pair 1 4 and 5
Pair 2 3 and 6 Pair 2 1 and 2
Pair 3 1 and 2 Pair 3 3 and 6
Pair 4 7 and 8 Pair 4 7 and 8
