5 Connecting the VM-1H4C
Always switch off the power to all devices before connecting them to
your VM-1H4C.

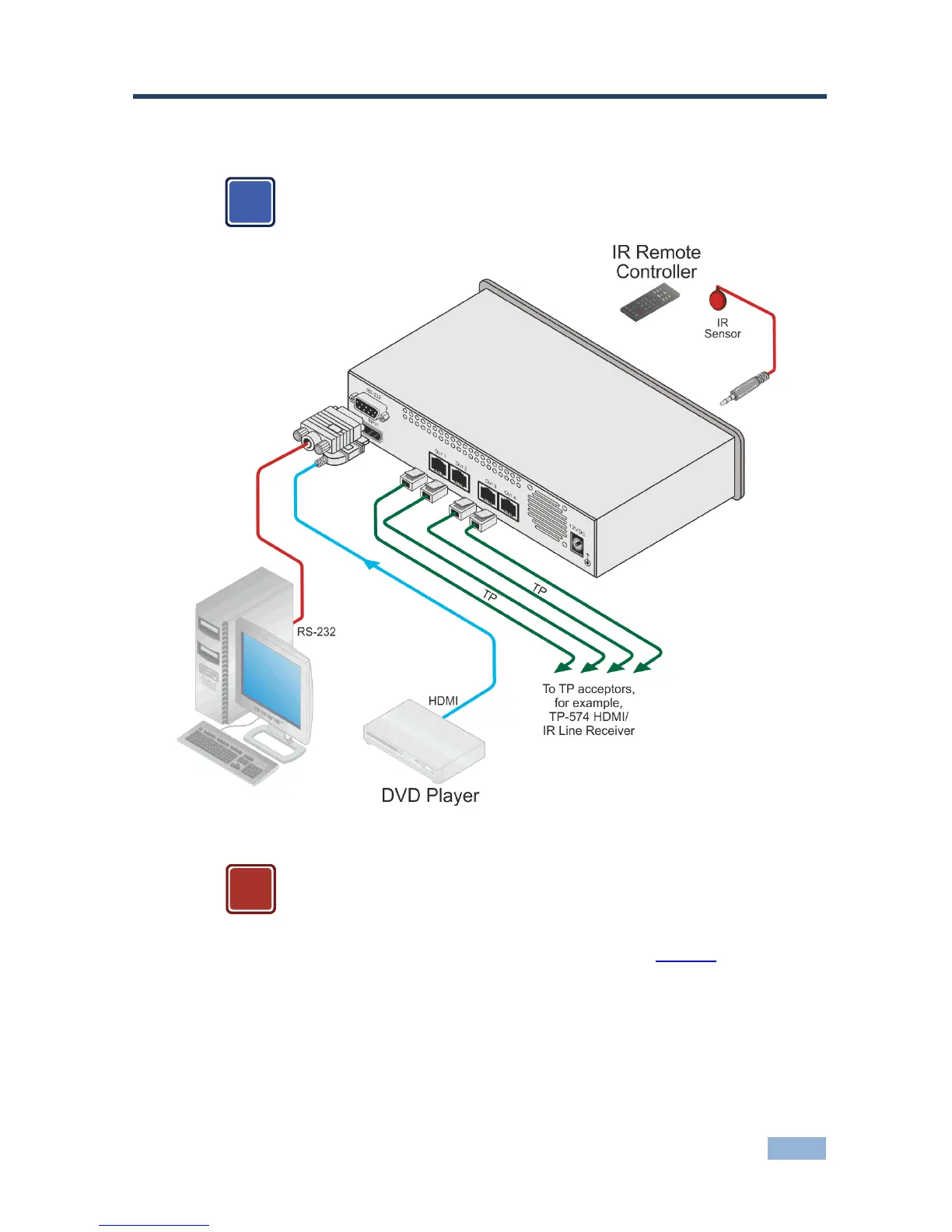

Figure 2: Connecting the VM-1H4C
Warning:
Using a TP cable that is incorrectly wired may cause
permanent damage to the device
To connect the VM-1H4C as illustrated in the example in Figure 2:
1. Connect the HDMI source, (for example, a DVD player) to the Input (HDMI)
connector.
2. Connect the TP RJ-45 outputs to up to four TP acceptors, (for example,
TP-574).
