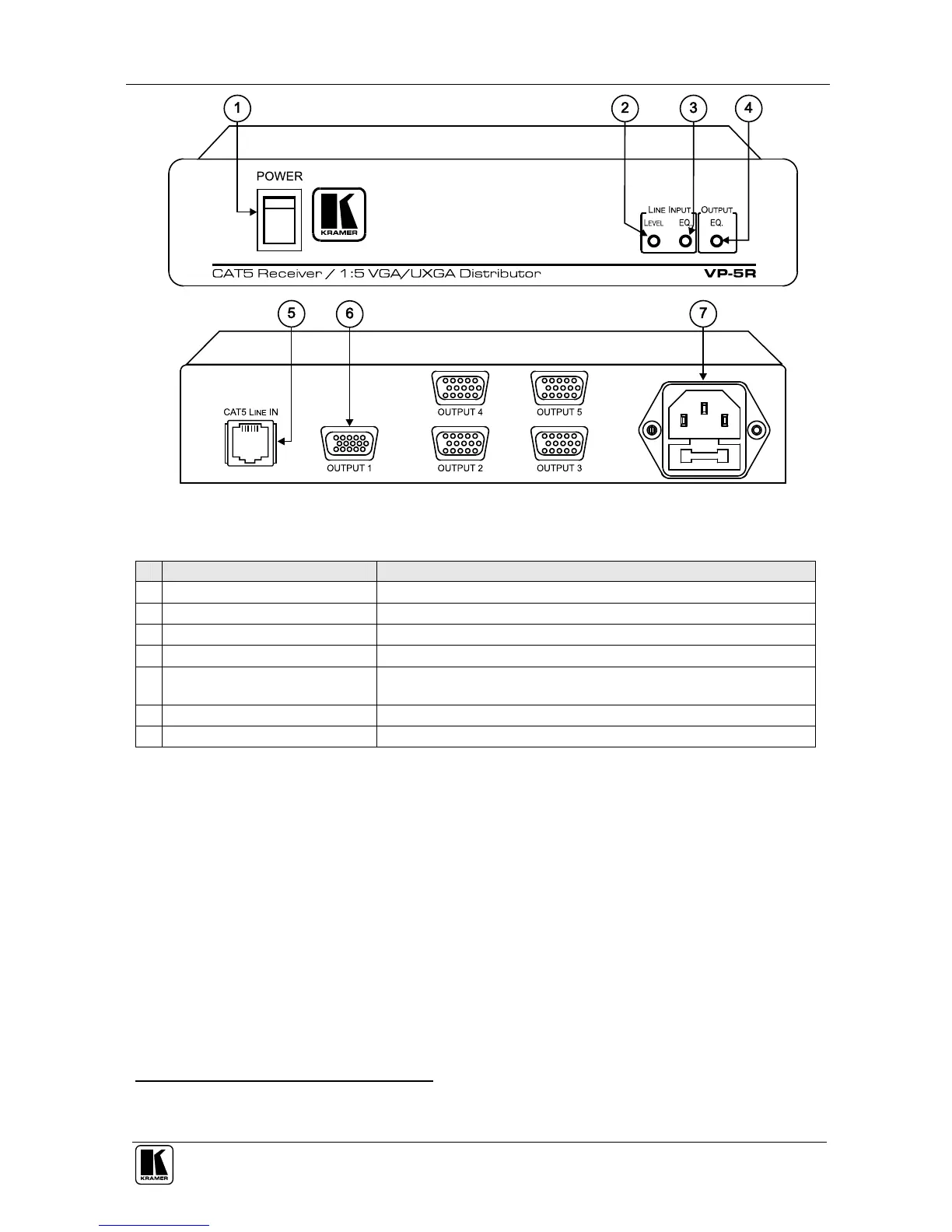

Figure 8: VP-5R CAT 5 Receiver / 1:5 VGA/UXGA Distributor
Table 8: VP-5R CAT 5 Receiver / 1:5 VGA/UXGA Distributor Features
# Feature Function
1 POWER Switch Illuminated switch for turning the unit ON or OFF
2 LINE INPUT LEVEL Trimmer Adjusts
1
the video input level
3 LINE INPUT EQ. Trimmer Adjusts
1
the video input EQ. (equalization) compensation
4 OUTPUT EQ. Trimmer Adjusts
1
the video output EQ. (equalization) compensation
5 CAT 5 LINE IN RJ-45 Connector
Connect to
2
the LINE OUT RJ-45 connector on the VP-5T
1:4
VGA/UXGA Distributor / CAT 5 Transmitter
6 OUTPUT 15-pin HD Connector Connect to the VGA/UXGA acceptor (from 1 to 5)
7 Power Connector with FUSE AC connector enabling power supply to the unit
8.2 Your VP-5R CAT 5 Receiver / 1:5 VGA/UXGA Distributor
(Underside)
Figure 9 and Table 9 define the underside of the VP-5R
CAT 5 Receiver /
1:5 VGA/UXGA Distributor:
1 Insert a screwdriver into the hole and carefully rotate it, to trim the level
2 Using a UTP CAT 5 cable with RJ-45 connectors at both ends (the PINOUT is defined in Table 10 and Figure 13)
