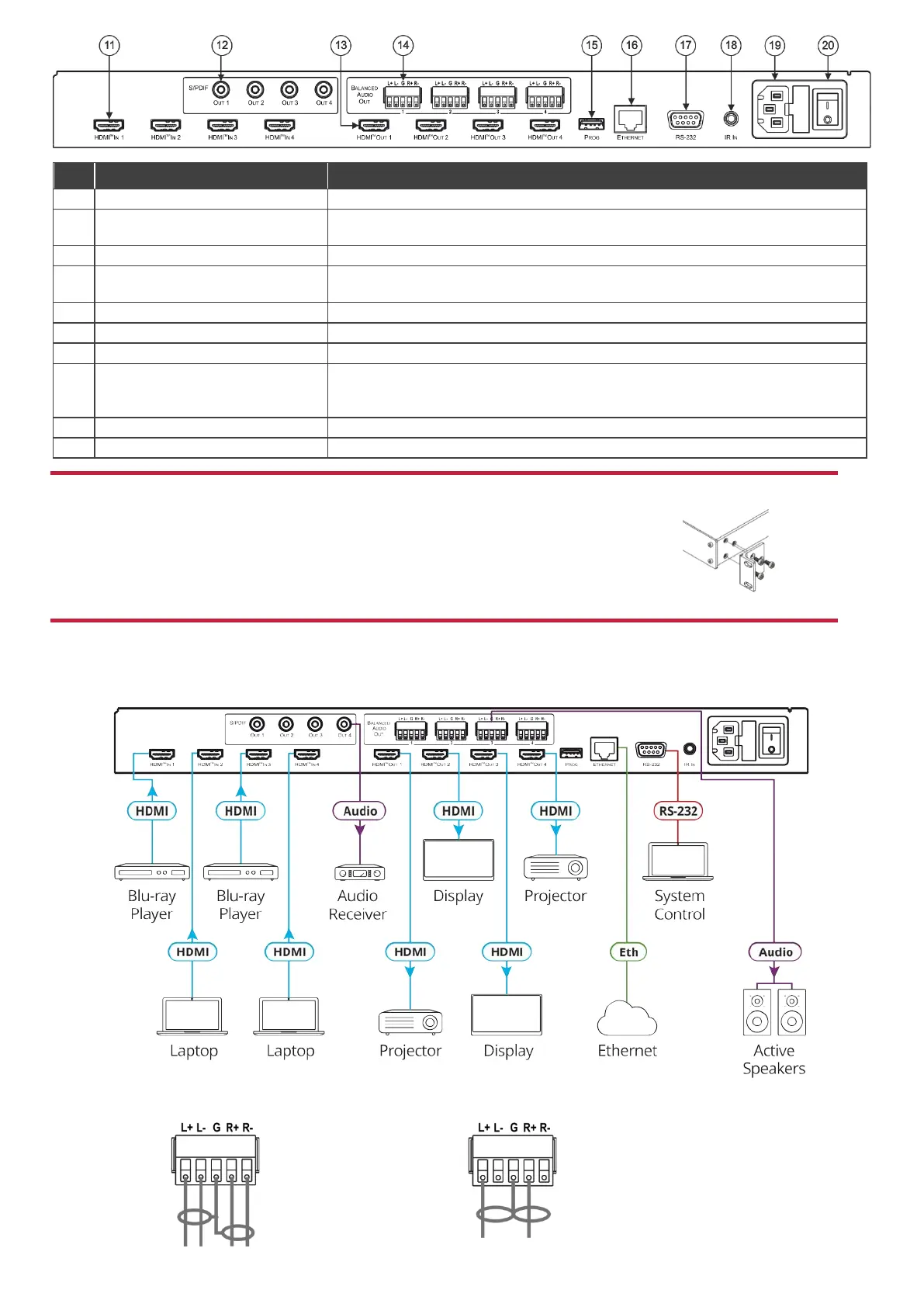

Page #2 background imageLoading...
Page #2 background image
# Feature Function
11
HDMI IN Connectors (1 to 4)
Connect to up to 4 HDMI sources.
12
S/PDIF OUT (coaxial) RCA
Connectors (1 to 4)
Connect to up to 4 digital audio acceptors.
13
HDMI OUT Connectors (1 to 4)
Connect to up to 4 HDMI acceptors.
14 BALANCED AUDIO OUT Terminal
Block Connectors (1 to 4)
Connect to up to 4 balanced stereo audio acceptors.
15
PROG USB Connector
Connect to a USB stick to perform firmware upgrades.
16
ETHERNET RJ-45 Connector
Connect to a PC via a LAN.
17
RS-232 9-pin D-sub Connector
Connect to a PC/serial controller.
18
IR IN 3.5mm Mini Jack Connector
Connect to an external IR receiver for controlling the device via IR remote controller
Covered by a cap. The 3.5mm jack at the end of the internal IR connection cable fits into
this opening.
19
Mains Power Connector and Fuse
Plug in the power cord.
20
Power Illuminated Switch
Turn the device on and off.
Step 3: Install the VS-44H2A
To rack mount the machine, attach both ear brackets (by removing the three screws from each side of
the machine and replacing those screws through the ear brackets) or place the machine on a table.
Step 4: Connect the inputs and outputs
Always switch OFF the power on each device before connecting it to your VS-44H2A. For best results, we recommend that
you always use Kramer high-performance cables to connect AV equipment to the VS-44H2A.
Connect the audio output
To a balanced
stereo audio
acceptor:
To an unbalanced
stereo audio
acceptor:

Other manuals for Kramer VS-44H2A

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Kramer VS-44H2A and is the answer not in the manual?

Kramer VS-44H2A Specifications

General IconGeneral
CertificationCE, WEEE
Housing colorBlack
On/off switchYes
Rack capacity1U
Housing materialAluminum
USB connector typeMini-USB
HDMI input ports quantity4
Ethernet LAN (RJ-45) ports1
Built-in displayNo
HDCP version2.2
Product typeAV matrix switcher
AC input voltage100-240 V
AC input frequency50 - 60 Hz
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 90 %
Sustainability certificatesRoHS
Harmonized System (HS) code85299097
Weight and Dimensions IconWeight and Dimensions
Depth237.2 mm
Width436.4 mm
Height43.6 mm
Weight2000 g
Package depth330 mm
Package width525 mm
Package height107 mm
Package weight2900 g
