Kranzle 105 - Technical Diagrams and Compliance; Wiring Diagram

26
Stator
bl
bn
ge/gn
40 µF
br
rt
rt
schw

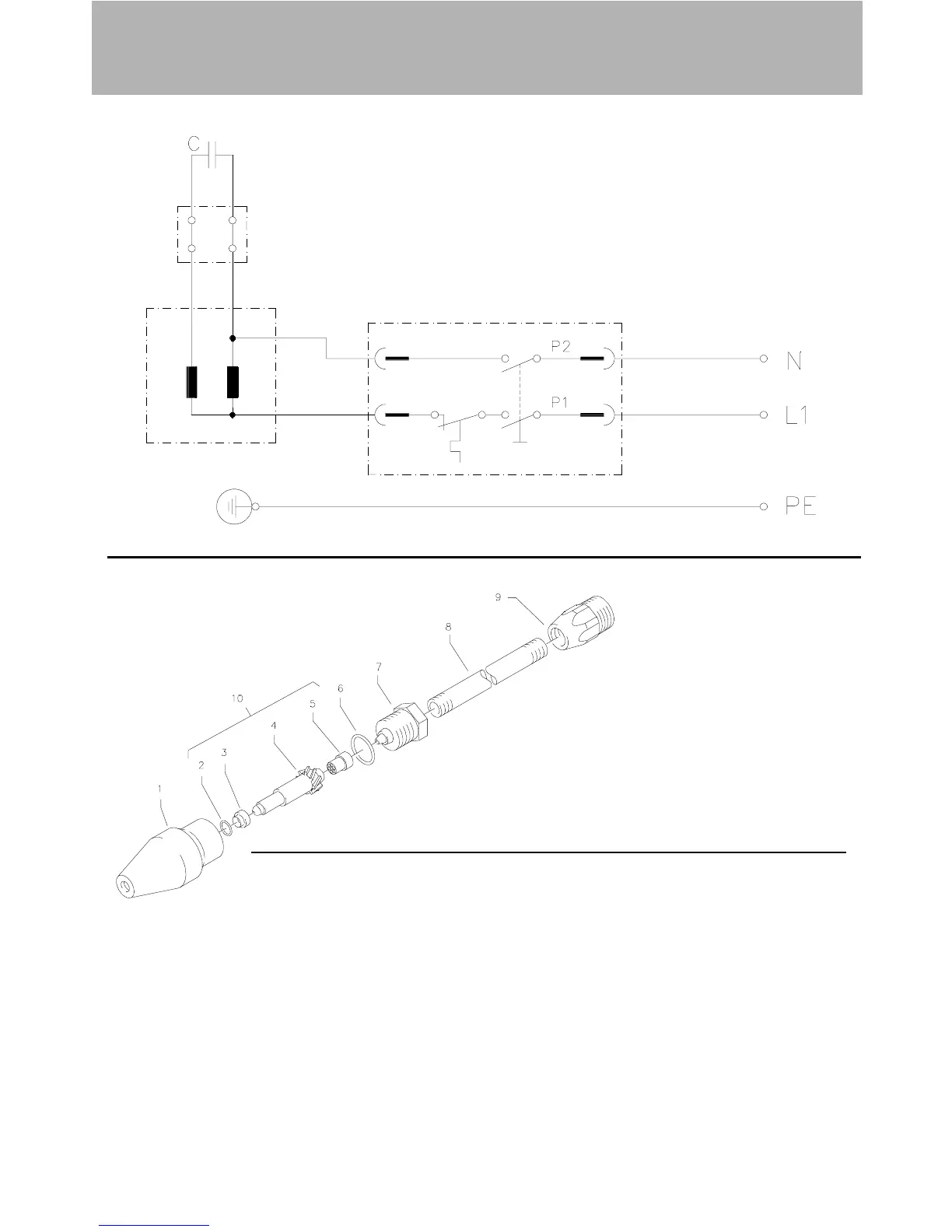

Wiring diagram
Terminal strip
No. Description Qty. Order No.
1 Sprühkörper 1 41.520
2 O-Ring 6,88 x 1,68 1 41.521
3 Düsensitz 1 41.522
4 Düse 045 1 41.523
5 Stabilisator 1 41.524
6 O-Ring 1 40.016 1
7 Sprühstopfen 1 41.526
8 Rohr 400 mm 2x M 12 x 1 1 41.527
9 ST 30-Nippel M 22 x 1,5 / M 12 x 1 ISK 1 13.363
Repair kit dirtkiller 045 41.097
consisting of 1x 2; 3; 4; 5
Dirtkiller 045 with lance 41.072 5
