Assembly
Step 2.

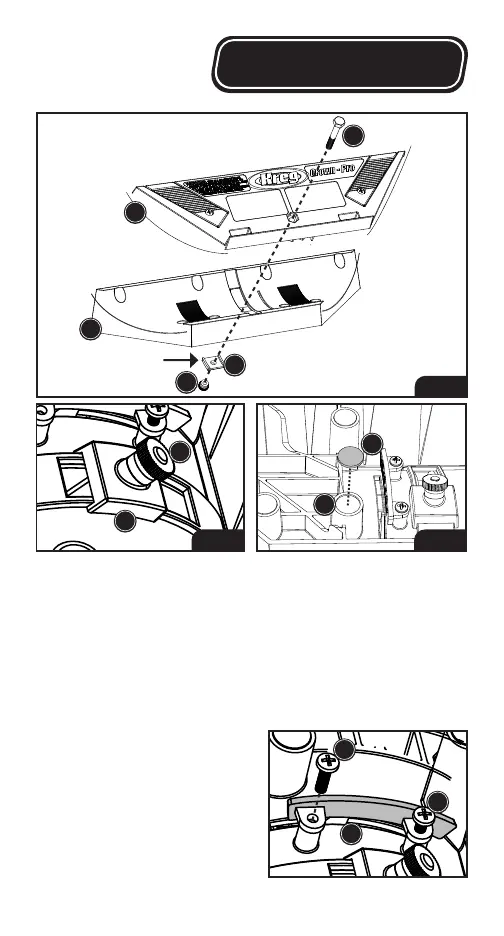

Add the 10 Rubber Feet (B) to the Base (A) for a
solid hold on your work surface (Fig. 3). Connect the
Molding Platform (F) to the Base (A) with the Large Bolt
(G) (Fig. 1). Place the Slide Glide (I) over the bolt (as
shown) and secure it in place with the Plastic Thumb
Nut (H) (Fig. 2).
Slide Guide
I. Slide Guide x 1
J. Small Screws x 2
K. Spring Scale x 1
L. Angle Finder x 1
Step 3.
Use the two Small Screws (J)
to secure the Spring Scale
(K) to the Base (A). Do NOT
over tighten, the screws will
fully set after one and a half
turns of a screwdriver.
J
J
K
G
F
A
H
I
I
H
A
B
Fig. 1
Fig. 2 Fig. 3
