Kreg KMS7102 - Page 6

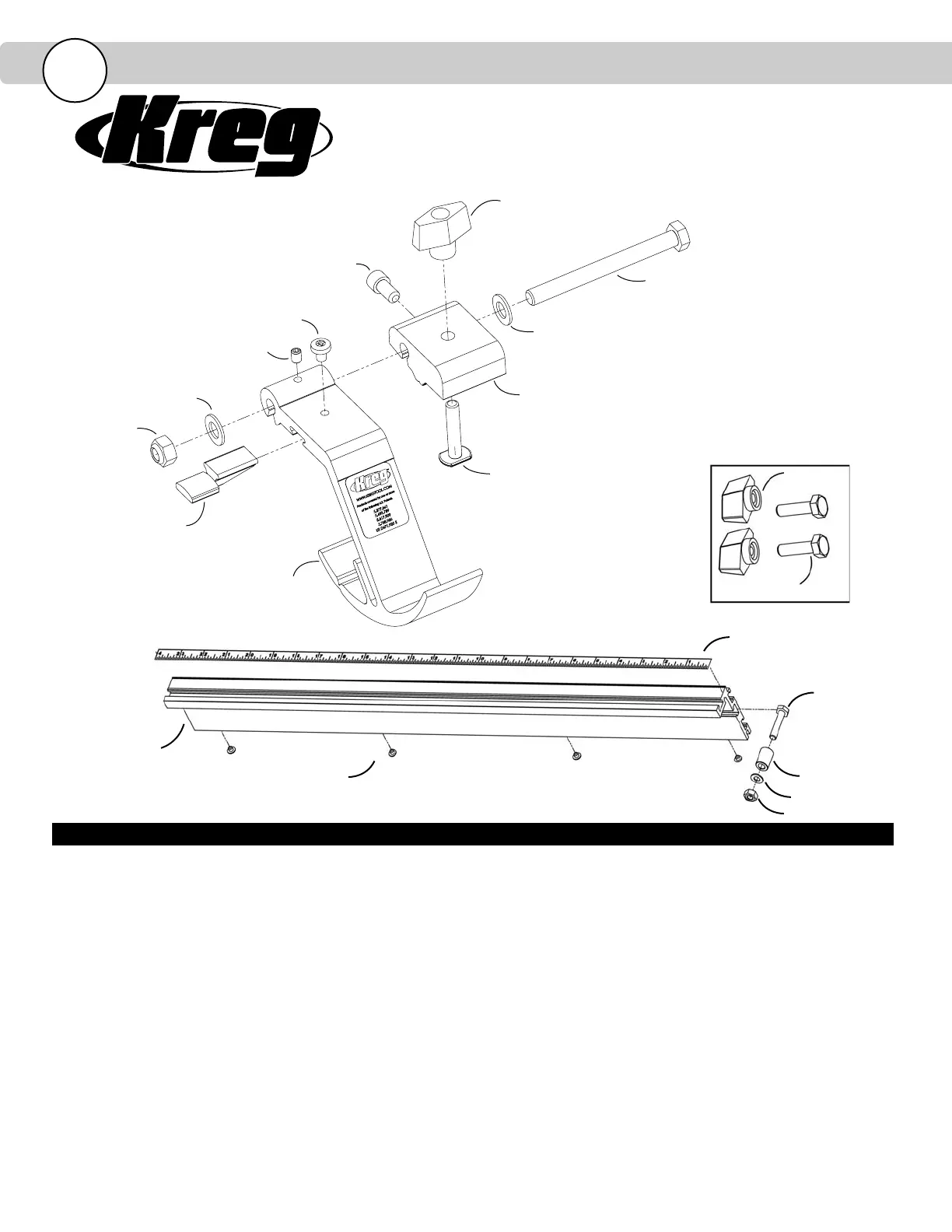

Parts Diagram
4-
5
KMS7702
FT4055
DK1504
DK1510
FT4059
FT4139
FT4047
DK1313 3 Black T-Knob
DK1504 1 Brass Washer
DK1510 1 1/4” - 20 Hex Nut
FT4021 1 Flipstop Arm
FT4047 1 4’ Right to Left Reading Self-Adhesive Tape
FT4050 2 5/16” Delrin Washer
FT4055 4 Trak Bumper
FT4059 1 1/4 - 20 x 1-1/4” Hex Head Bolt
FT4060 1 5/16” - 24 x 3-1/4” Hex Head Bolt
FT4061 1 5/16” - 24 Nyloc Nut
FT4062 1 Stop Base
FT4063 1 Lens
FT4064 1 10-32 x 1/4” Nylon Screw
FT4204 1 10-32 x 3/16” Half Dog Point Set Screw
FT4079 1 1/4” - 20 x 1/2” Nylon Hex Socket Screw
FT4203 1 Positioning Stop for Miter Gauge Head
FT4139 2 1/4” - 20 x 1” Hex Head Bolt
FT4212 1 1/4” - 20 x 1-1/4” T-Bolt
KMS7702 1 Auxiliary Fence HD Trak
Part Number Quantity Description
FT4203
Miter Gauge Add-On System
-Part Number KMS7103
DK1313
FT4204
FT4212
FT4064
FT4079
FT4061
FT4063
FT4021
FT4062
FT4050
FT4060
DK1313
FT4050
