Kreg KMS7102 - Parts Diagrams

4

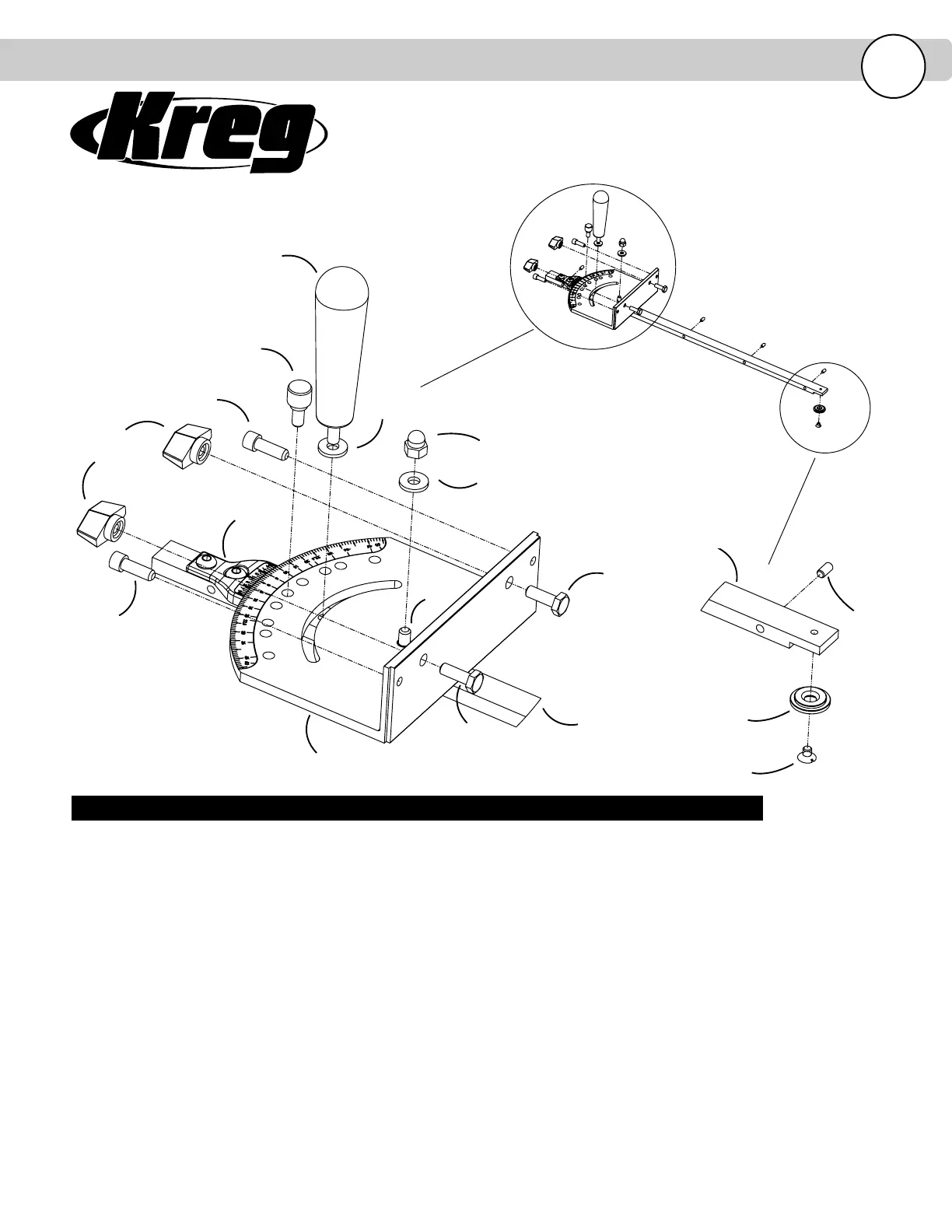

Parts Diagram
Precision Miter Gauge
- Part Number KMS7101
A
DK1504
FT4002
FT4059
FT4059
DK1313
FT4056
FT4024
FT4029
FT4025
FT4025
FT4102
FT4001
FT4030
FT4027
FT4005
FT4057
FT4058
FT4002
Part Number Quantity Description
DK1313 2 Black T-Knob
DK1504 1 1/4" Brass Washer
FT4001 1 Miter Gauge Head
FT4002 1 Miter Gauge Bar Extrusion
FT4005 1 1/4"-20 Brass Stud
FT4102 5 10-32 x 5/8" Nylon Adjusting Screw
FT4024 1 1/4" Lock Nut with Tip Cap
FT4025 1 1/4"-20 x 3/4" Nylon Hex Socket Screw
FT4027 1 Molded Vernier Scale Indicator
FT4029 1 Miter Gauge Handle
FT4030 1 1/4" Nylon Washer
FT4056 1 Brass Positioning Pin
FT4057 1 T-Slot Washer
FT4058 1 10-32 x 3/8" Flat Head Screw
FT4059 2 1/4-20 x 1-1/4" Hex Head Bolt
DK1313 2 Black T-Knob
DK1504 1 1/4” Brass Washer
FT4082 1 Miter Gauge Head
FT4094 1 Miter Gauge Bar Extrusion
FT4005 1 1/4”-20 Brass Stud
FT4102 5 10-32 x 5/8” Nylon Adjusting Screw
FT4024 1 1/4” Lock Nut with Tip Cap
FT4025 2 1/4”-20 x 3/4” Nylon Hex Socket Screw
FT4027 1 Molded Vernier Scale Indicator
FT4029 1 Miter Gauge Handle
FT4030 1 1/4” Nylon Washer
FT4056 1 Brass Positioning Pin
FT4057 1 T-Slot Washer
FT4207 1 10-32 x 5/16” Flat Head Screw
FT4139 2 1/4-20 x 1” Hex Head Bolt
FT4082
FT4094
FT4094
4-
FT4139
FT4139
FT4207
