Kreg Mini MKJ - Setting up the Rocket Jig; Rocket Sliding Base Plate

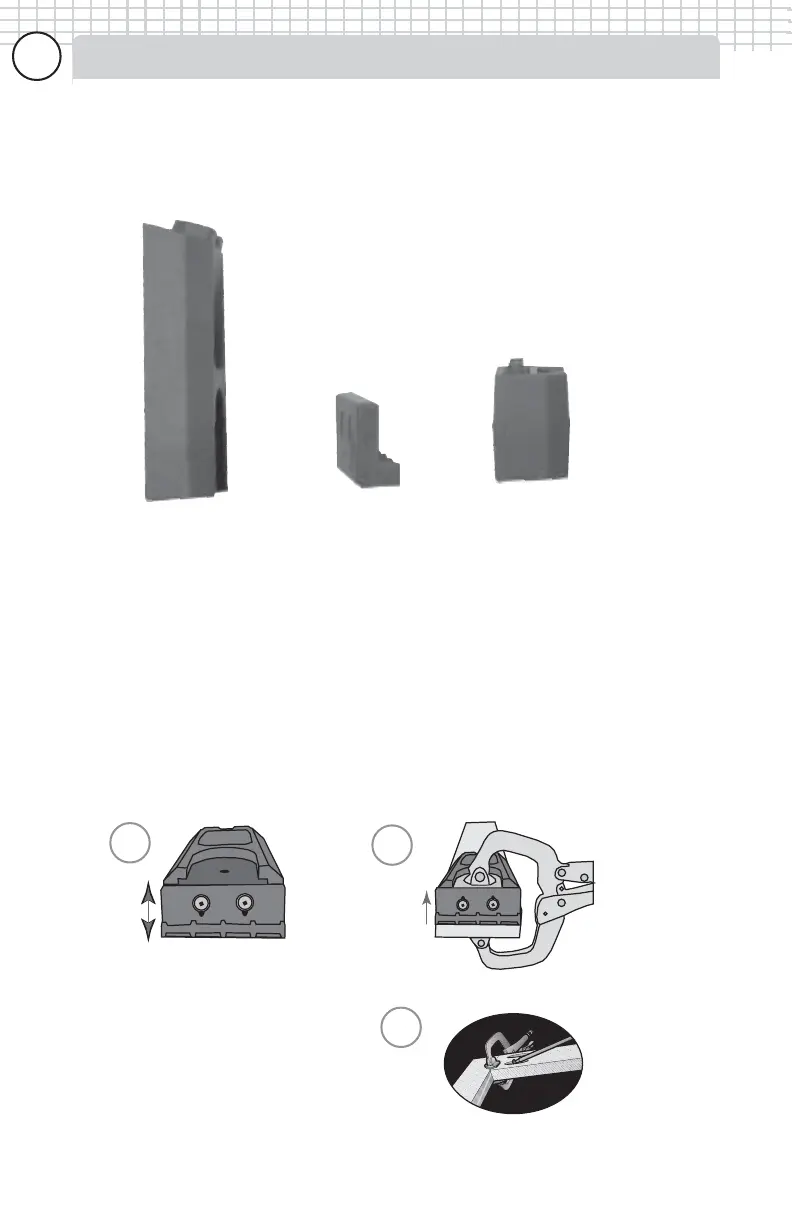

The Rocket Jig consists of 3 main components; the upright (A), base plate (B)
and Rocket riser block (C). Two (2) 3/4” screws and two (2) 2-1/2” screws are
included to assemble the 3 components in different configurations for drilling.
Rocket
TM
Sliding Base Plate
The Rocket
TM
Jig utilizes a sliding base plate which allows the Kreg
Face Clamp
TM
to slide into the recess on the back of the jig and secure
it to the workpiece while drilling the pocket holes. The Face Clamp
TM
can then be removed and used to assemble the joint as shown below. In
addition the Rocket
TM
Jig features a mounting hole that allows you to
temporarily attach the tool to any workpiece in any location by simply
driving a screw. A nice feature in situations where pocket holes could
normally not be used because of a clamping obstacle.
Setting up the Rocket
TM
Jig
(B)
(C)
(A)
A
2
3
1
1111
1111
11
Fence (1) slides up and down
to capture Face Clamp
TM
(2).
Clamp also serves to hold
workpieces flush while driving
screw (3).
