7Foundation 4K UHD Processor

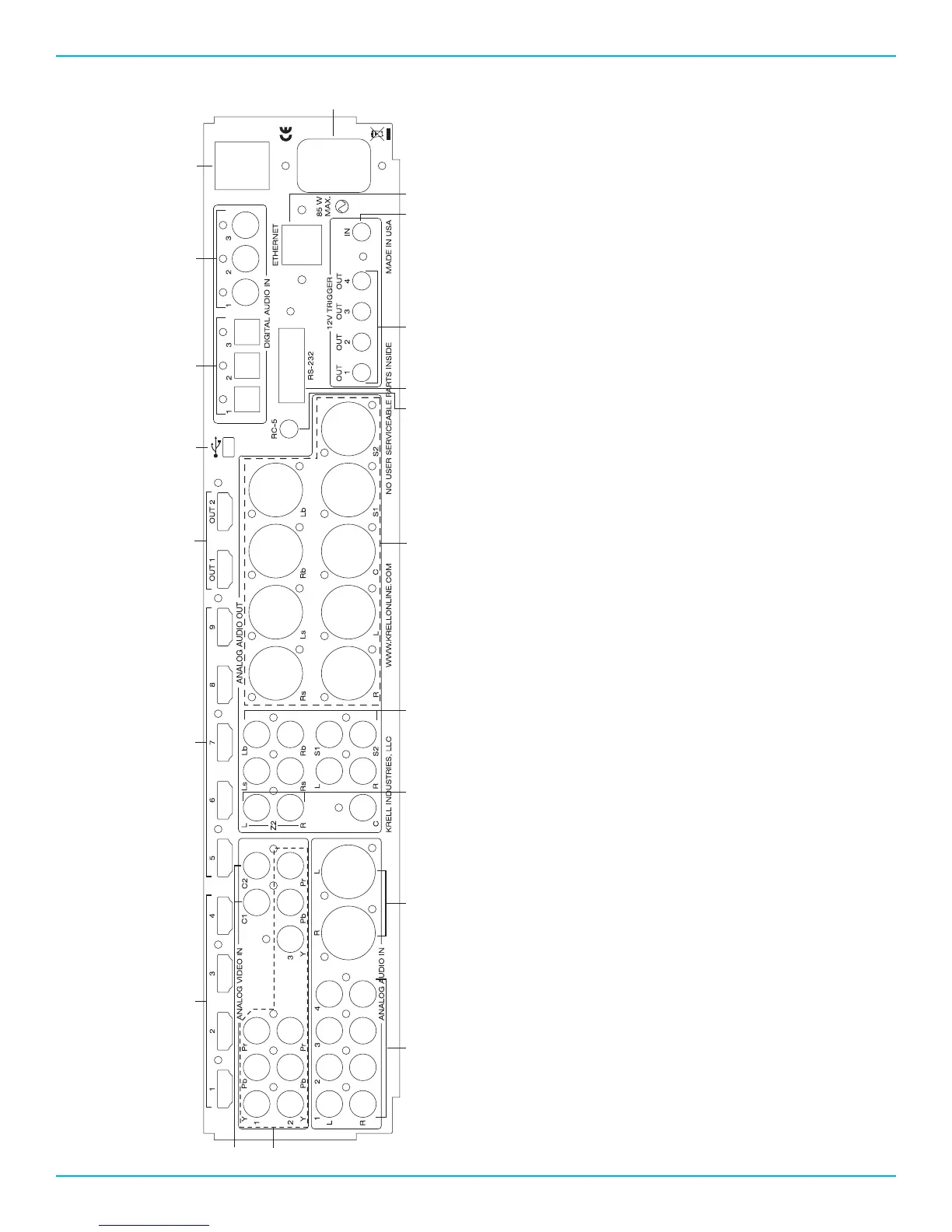

Back Panel Diagram
21a 4
5
3
6
7
9 810
1112
13
14
15
1617
19
18
1b
1a HDMI 2.0, HDCP 2.2 Video Inputs 1b HDMI 2.0, HDCP 2.0 Video Inputs
2 HDMI Video Outputs 3 Mini USB 4 Optical Digital Inputs 5 Coaxial Digital Inputs 6 Main Power Switch 7 AC Power Cord Receptacle 8 Ethernet RJ-45 Jack 9 12v Trigger Input
10 12v Trigger Outputs 11 RS-232 Control Port 12 RC-5 Control Port 13 Balanced Audio Outputs 14 Single-ended Audio Outputs 15 Zone 2 Analog Outputs 16 Balanced Analog Inputs 17 Single-ended Analog Inputs 18 Component Video Inputs 19 Composite Video Inputs
