Krell Industries KAV-250cd - Figure 1 FRONT PANEL

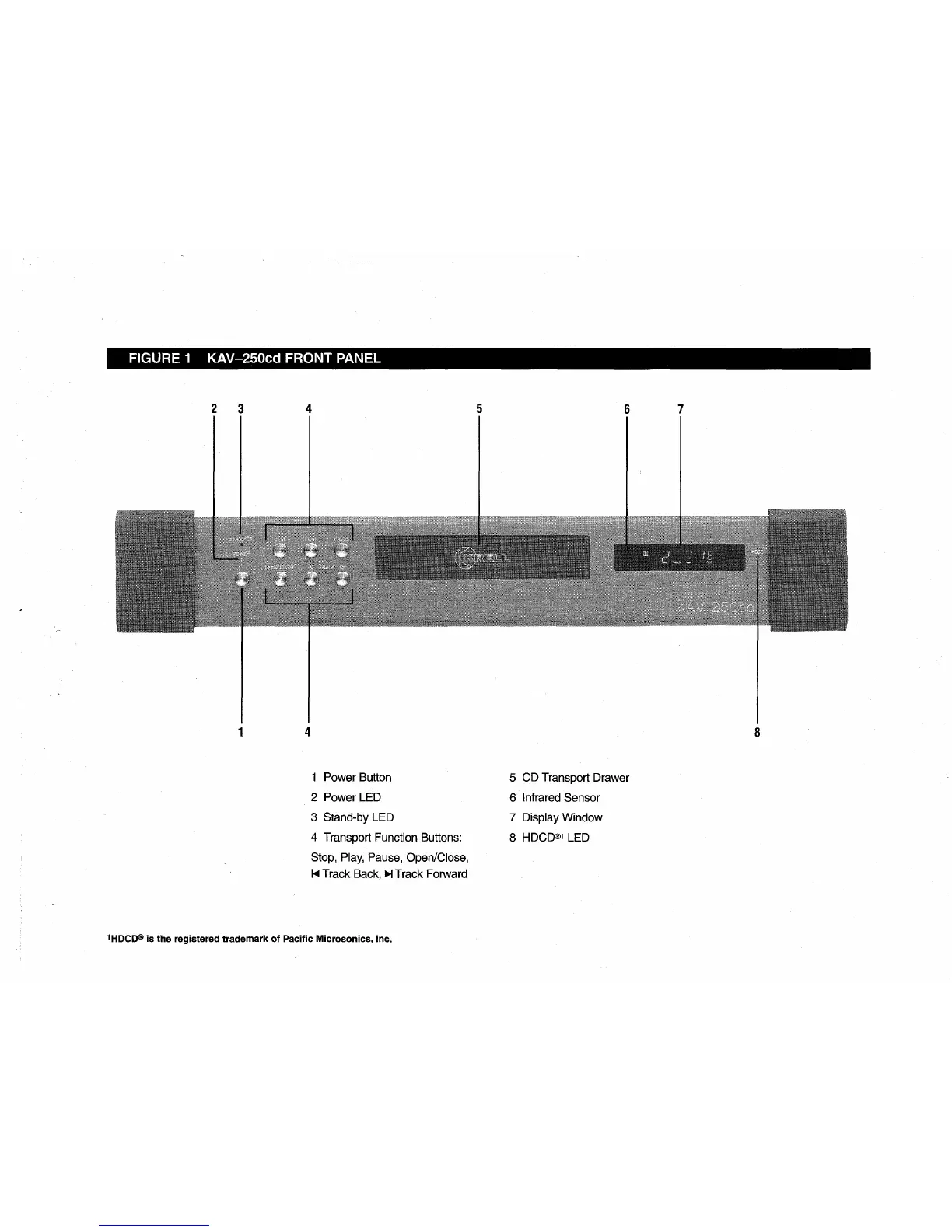

FIGURE 1 KAV-250cd FRONT PANEL
2 3
6
4
1 Power Button
2 Power LED
3 Stand-by LED
4 Transport Function Buttons:
Stop, Play, Pause, Open/Close,
I~ Track Back, ~,1 Track Forward
5 CD Transport Drawer
6
Infrared Sensor
7 Display Window
8 HDCD~ LED
1HDCD
~
is the registered trademark of Pacific Microsonics, Inc.
