Krell Industries KAV-250cd - Figure 2 BACK PANEL

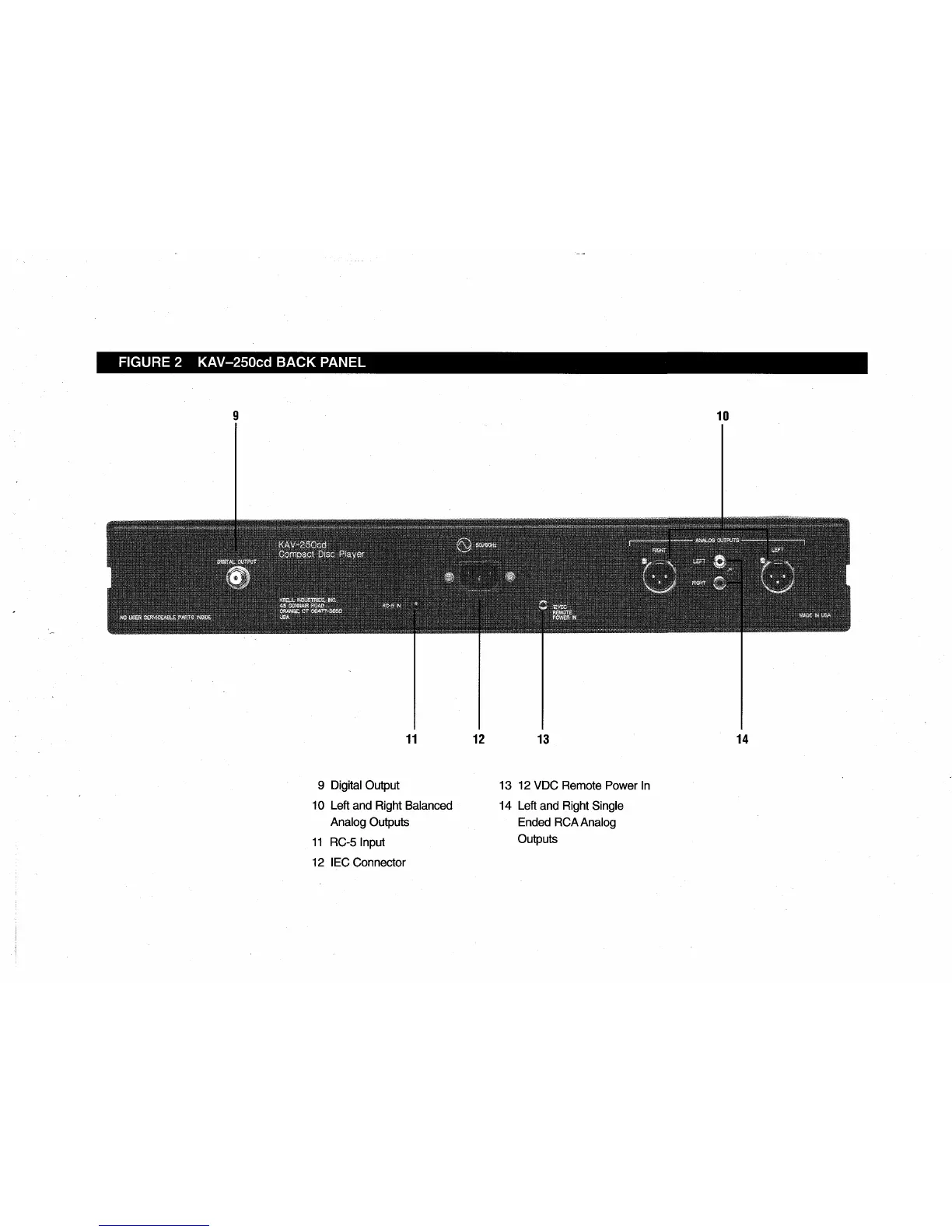

FIGURE 2 KAV-250cd BACK PANEL
11]
11 12 13 14
9 Digital Output
10 Left and Right Balanced
Analog Outputs
11 RC-5 Input
12 IEC Connector
13 12 VDC Remote Power In
14
Left and Right Single
Ended RCA Analog
Outputs
