KRIWAN INT280 User Manual

Accessories
16/18 810.00113.0

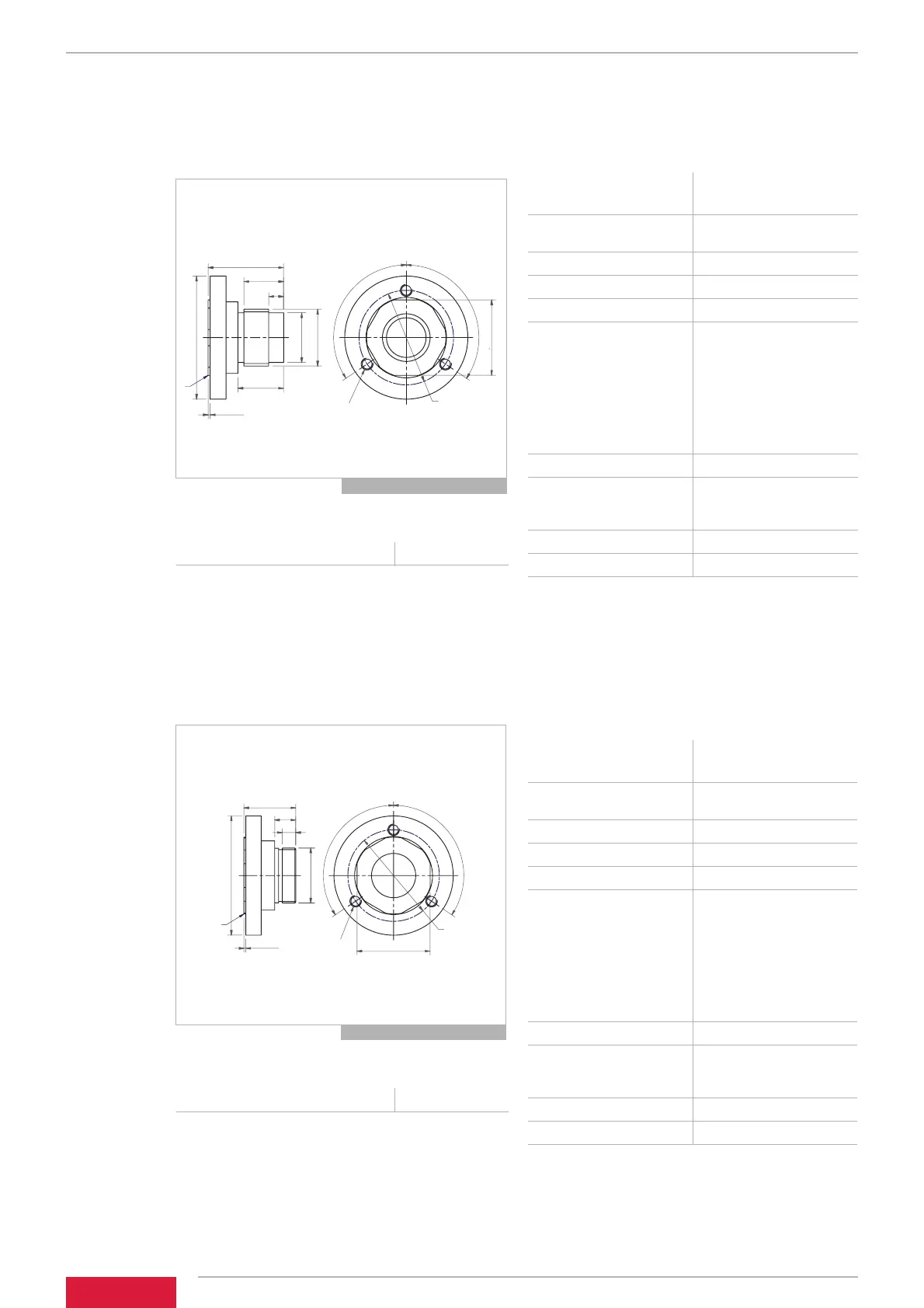

10 Accessories
10.1 Adapter
10.1.1INT280 Adapter 1 1/8"- 12 UNF
Order data
Technical specifications
Dimensions in mm
INT280 Adapter 1 1/8"- 12 UNF 02 K 500 S21
38
20
7.5
Ø 47.6
A
124° 124°
A=max. 1
Ø62 Ø25
1
1
/8"-12 UNEF
WS38
23
3x M6
Permitted ambient
temperature
-30…+100°C
Permitted rel. humidity
10-95% RH, without
condensation
Operating pressure
max. 140bar
Test pressure
max. 210bar
Connection thread
1 1/8" - 12 UNF
Flange mounting
- Screws M6x20 Class 8.8 DIN 933
- Washer DIN EN ISO 7089-6-St
- Toothed gear DIN 6798-A 6.4-FSt
- Seal EPDM
- Tightening torque 9Nm
Material
Steel, nickel-plated
Permissible media
Oils and refrigerant that do not
attack the material of the
adapter.
Dimensions
See dimensions in mm
Weight
Approx. 300g
10.1.2INT280 Adapter 1 1/8"- 18 UNEF
Order data
Technical specifications
Dimensions in mm
INT280 Adapter 1 1/8"- 18 UNEF 02 K 502 S21
27
11
7
Ø 47.6
A
124° 124°
A=max. 1
Ø62
1
1
/
8
"-18 UNEF
WS38
3x M6
Permitted ambient
temperature
-30…+100°C
Permitted rel. humidity
10-95% RH, without
condensation
Operating pressure
max. 140bar
Test pressure
max. 210bar
Connection thread
11/8" - 18UNEF
Flange mounting
- Screws M6x20 Class 8.8 DIN 933
- Washer DIN EN ISO 7089-6-St
- Toothed gear DIN 6798-A 6.4-FSt
- Seal EPDM
- Tightening torque 9Nm
Material
Steel, nickel-plated
Permissible media
Oils and refrigerant that do not
attack the material of the
adapter.
Dimensions
See dimensions in mm
Weight
Approx. 300g
